Pull Arm Automatic Swing Door Opener with Ce SGS

Product Description

Pull arm Automatic Swing Door Opener with CE SGS
1. Device Description
SW100 is a kind of intelligent swing door Operator, during the running time, the microprocessor measure the door's current position, speed and final position, after accurate calculation, then could get the most suitable movement method to control the moving path of each door. This could prevent the well-known problems of terminal point stop, emergency braking and sluggish speed etc. According to the door width, when power off, it could set spring tensile force of pulling open, and limited redundant force control could also increase safety level.

2. Intended use
SW100 Swing Door Operator is specially designedfor the ordinary swing door control system installed in the drying room, could be only installed in the internal of the building. Any different from the purpose and beyond the purpose of this application, could not be recommended. Expected intended use also including comply with the operating conditions which the manufacturers special required such as: Use and configure the correct arm-link type, make proper maintenance and repair.

Automatic Door operators Type Swing opener - EM (CE and IP66) , smoke and heat extraction solutions

Feature and Adventage Surface mounting Push-Go: Automatic activation by pushing or pulling door panel Quiet and aesthetically pleasing Electric strike integration Efficient and cost-effective
* Spring closer on power failure, suitable for fire doors (Optional).
* Fully adjustable operating parameters to suit specific applications, numerous control options
* Optimum adaptability to individual requirements- e.g. residential lifts, hospitals, office buildings, retail outlets, department stores, stations and airports, shops and restaurants, homes with elder or disabled people.
* Reliable permanent use, equipped with built-in backup battery (Optional).
* Push & go function makes life safer and easier (Optional).

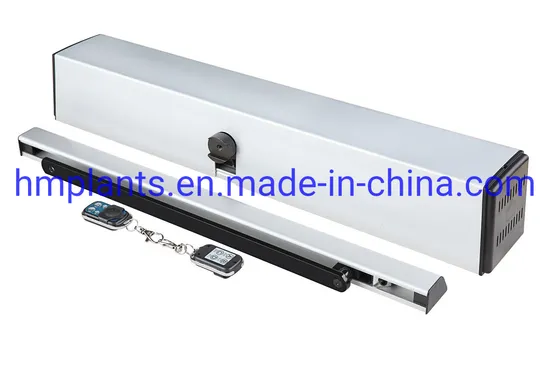

One set electric door opener includes: Opener, arms, remotes, push buttons.
Articulated arm and sliding arm both available, can be mounted on the hinge side and opposite hinge side.


Other Products

We produce and sell different styles of automatic doors. Our products include,
1, automatic door opener, gate operator, access control system;
2, x-ray proof lead-lined door, clean room door;
3, aluminum glass door;

Product Description

Used on office / family / hotel / hospital, etc.
Opened with sensor or entrance guard system.
Easy to be installed, brushless motor, running steadily, high quality, reasonable price

With CE certificate and 3 year guarantee.

Perfect smooth runing without hearable noise thanks to the encoded technology
Reliable permanent use, equiped with built-in backup battery
Versatile functions available at any places ,support entrance guard system, fire-retardant, helpful to disabilities
Passed 2 million times test ,maintenance free
Push and go function (optional)

FAQ

1, Are you manufacturer ?
Yes , we are door factory , founded in 2003 . We produce Automatic sliding door operator ,Automatic swing door opener ,automatic floor spring closer ,automatic revolving door ,automatic curved door etc .

2, What is your MOQ ?
Automatic sliding door operatores (90kg to 250KG) 5 sets
Automatic sliding door operators (300 to 3000KG) 1 sets
Automatic revolving door 1 set

3, What is your lead time ?
3 to 7 days for automatic sliding door operators
15 to 25 days for automatic revolving door

4, What is the shipping ports ?
Shenzhen Luohu , yantian ports in Shenzhen City china

5, Which countries have you exported to ?
We have exported to Singarpo , Malaysia , Thailand , USA , UK , Indonesia ,Egypt ,Nigeria , Australia,New Zealand etc .

6, What is your terms of payment ?
We accept 30% TT in advance ,70%TT before shipment .

7, Do you offer discounts ?
Yes discounts are offered based on your order quantities .

8, Do you customized the automatic door ?
Yes, we do . Send us detailed such as size , door weight , technical drawing etc .
E-catalogue and price list will be supplied if you need.
