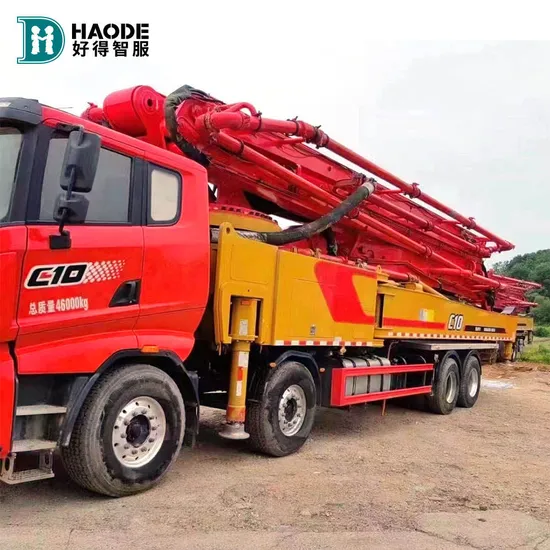

Haode Sany Sym5460thb 2021 Good Price Second Hand Concrete Pump Truck-Mounted Used Engineering Construction Machinery
| US$180,000.00-220,000.00 | 1 sets (MOQ) |
Basic Info.
Model NO.
SANY 37m
Type
Concrete Pump
Shotcrete Type
Wet
Machining Process
Hydraulic
Structure
Cylinder Type
Productivity
180m²/h
Feeding Height
1400mm
Vibrating Amplitude
2.0mm
Certification
ISO9001: 2000
Condition
Used
Color
Red
Power Type
Other
Engine Model
D13c6-480e0
Max. Vertical Conveying Distance
67.3m
Max. Horizontal Conveying Distance
37m
Dimension(L*W*H)
13900*2550*4000mm
Showroom Location
None
Weight
46000 Kg
Brand
Sany
Video Outgoing-Inspection
Provided
Year
2021
Total Weight
46000kg
Working Hours
40001-50000
Product Name
Concrete Pump Truck
Power
348/1900kw/Rpm
Machinery Test Report
Provided
Transport Package
Standard Packing
Specification
steel
Trademark
sany
Origin
China
HS Code
8429521200
Production Capacity
10000 Piece/Pieces Per Month
Product Description
| Complete vehicle parameters | |
| Overall length | 13900mm |
| Overall width | 2550mm |
| Overall height | 4000mm |
| Total weight | 46000kg |
| Pumping system parameters | |
| Theoretical concrete displacement low pressure | 180m³/h |
| Theoretical concrete displacement high pressure | 125m³/h |
| Theoretical pumping pressure low pressure | 8.3Mpa |
| Theoretical pumping pressure high pressure | 13Mpa |
| Theoretical pumping times low pressure | 29 |
| Theoretical pumping times high pressure | 19 |
| Inner diameter of conveying cylinder | 260mm |
| Stroke of conveying cylinder | 2100mm |
| Hydraulic system | open |
| System oil pressure | 32Mpa |
| Oil tank volume | 780L |
| Water tank volume | 700L |
| Conveying pipe diameter | 125mm |
| Length of hose at end | 3m |
| End hose diameter | 125mm |
| Chassis parameters | |
| Chassis brand | sany |
| Chassis model | SYM5460THB1F |
| Engine model | D13C6-480E0 |
| Maximum net engine power | 348/1900kW/rpm |
| Emission standard | National VI |
| Fuel tank volume | 600L |
| Displacement | 12.94L |
| Max speech | 90km/h |
| Key parameters | |
| Number of bridges | 4 |
| Chassis | sany |
| Vertical height of boom | 59.1m |
