Screen Plate with Fiber Tubo Separator

Product Description

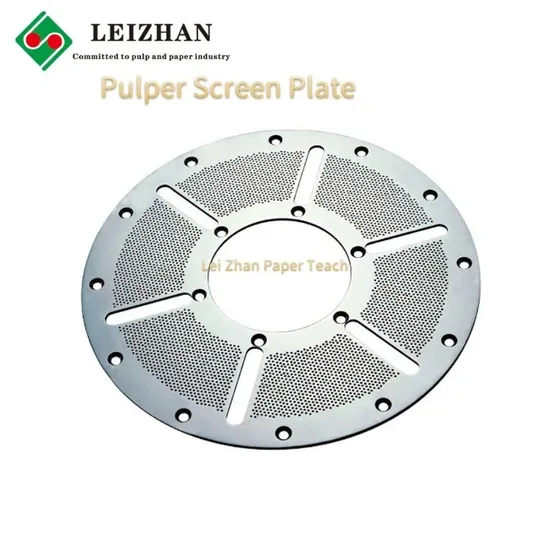

Hydrapulper screen plate
Application :
The Screen Plate is used in hydrapulper or D-pulper or Fiber Separator. Screen plate is situated in pulper machine. The stator and rotor are placed on the screen plate. Pulper has a rotor inside the machine that grinds and mixes the pulp evenly.
Material :
High chromium cast iron, nickel chromium alloy, alloy, stainless steel, tungsten carbide ,these material are available for customer.
Separator screen plate
Working Principle:
Screen plate work as a strainer that separates large, uncut particles from pulp to separate and collect them to other containers. The pulp is passed through the strainer for further procedure. Contaminants stay collected on screen plate and don't mix with the pulp. Screen plate works continuously into the water. Therefore, it has to be made by corrosion resistance material.
Screen plate is made of stainless steel as it has to work continuously in water. Screen plate is easy in installation and has a long life. Screen plate works efficiently into pulper and separates the contaminants from the pulp.
Stianless steel screen plate
Advantage :
1. Uniform filter pores, high permeability and anti-blocking performance;
2. Large filtration area, small flow resistance and good pulping effect;
3. Excellent corrosion resistance
4. The filter pores are stable and have strong resistance to deformation.
Detailed Photos
Product Parameters

Material	stainless steel 316L
Process	Pulping machine
Usage	Household paper machine
Type	Pulping equipment
Automatic grade	Semiautomatic
Various specification	600-2135mm
Thickness	6-25mm
