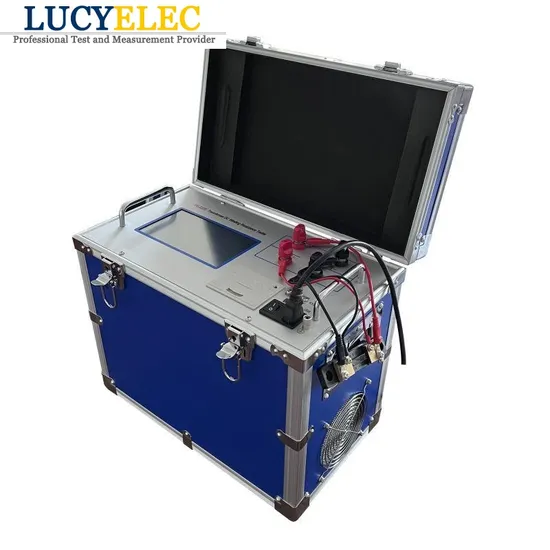

China Factory Price 20A 40A 50A 60A Lucyelec Transformer Winding Resistance Meter

Product Description

China Factory Price 20A 40A 50A 60A Lucyelec Transformer Winding Resistance Meter Product Description Transformer Winding Resistance Tester 10A, 20A,40A,50A,60A available 1.Brief Introduction of Winding Resistance Tester
Winding resistance measurement is very necessary for transformer manufacturer and the department of electrical test programs during transformer factory test, installation, repair, handover and commissioning sections. The transformer coil can effectively find the device welding, connecting parts loose, missing unit, disconnection, and other manufacturing default and other hidden danger occurred after operation.
In order to meet the needs of rapid measurement of DC resistance of transformers, we developed ZSR20A DC Resistance Tester. The instrument is a new powerful technology, small size, light weight, high output current and other characteristics.
The device is controlled by the microcontroller, with a high degree of automation, automatic discharge functions. It is a test instrument of high precision, simple, direct way to achieve fast transformer measurement.

2. Features and Advantages of Transformer Winding Resistance Tester
Whole instrument controlled by high speed SCM, high automatic degree and simple operation. The instrument adopts advanced power supply technology, with multiple current position, test range is wide, suitable for testing DC resistance of large and medium size transformer. Has a complete circuit protection, reliable. Discharge alarm, discharge indicator clear, reduces misuse. Intelligent power management technology, instrument is always working at minimum power state, effective energy saving, reduce heat. Seven-inch high-brightness touch colorful LCD display With calendar clock and power storage, can store 1000 groups data, can be check at any time. The instrument has Bluetooth communication, RS232 communication and USB interface for computer communication and U disk data storage. Self-contained micro printer, which can print measurement results. Download the special APP, the instrument can connect to your mobile by bluetooth function to control the instrument throughout the special software, and the test data is stored and uploaded for easy reference. Product Parameters Technical Parameters of Winding Resistance Tester

MODEL ITEAM		ZSR10A	ZSR20A	ZSR40A	ZSR50A	ZSR60A	ZSR100A
Output Current		AUTO,<20mA,40mA,200mA,1A,5A,10A	<20mA,1A,2.5A,5A,10A,20A	<20mA,2.5A,5A,10A,20A,40A	<20mA,2.5A,5A,10A,20A,50A	<20mA,5A,10A,20A ,40A,60A	5A,10A,20A ,50A,100A
Test Range		0.5mΩ~0.8Ω (10A) 1mΩ~4Ω (5A) 5mΩ~20Ω (1A) 100mΩ~100Ω (200mA) 1Ω~500Ω (40mA) 100Ω~100KΩ (<20mA)	100μΩ~1Ω (20A) 500μΩ~2Ω (10A) 1mΩ~4Ω (5A) 2mΩ~8Ω (2.5A) 5mΩ~20Ω (1A) 10Ω-20KΩ (<20mA)	50μΩ~500m(40A) 100μΩ~1Ω (20A) 500μΩ~2Ω (10A) 1mΩ~4Ω (5A) 2mΩ~8Ω (2.5A) 10Ω-20KΩ (<20mA)	40μΩ~400mΩ (50A) 100μΩ~1Ω (20A) 500μΩ~2Ω (10A) 1mΩ~4Ω (5A) 2mΩ~8Ω (2.5A) 10Ω-20KΩ (<20mA)	40μΩ~300mΩ (60A) 50μΩ~500mΩ (40A) 100μΩ~1Ω (20A) 500μΩ~2Ω (10A) 1mΩ~4Ω (5A) 10Ω-20KΩ (<20mA)	50µΩ~100mΩ (100A) 100µΩ~400mΩ (50A) 200µΩ~1Ω (20A) 500µΩ~2Ω (10A) 1mΩ~4Ω (5A)
Accuracy		±(0.2%+2digit); 10Ω-20KΩ(<20mA)±(0.5%+2digit)
Resolution		0.1μΩ
Display		7inch touch LCD screen (resistance display effective digits are 4 digits)
Data Storage		1000 groups
Working Condition		Temperature:0ºC~40ºC Ambient humidity:≤90%RH,(non condensed)
Power Supply		AC 220V±10V, 50Hz±1 Hz
Dimension (mm3)		325*240*275	425*500*180	325*240*275	440*240*390	325*240*275	325*240*275
Weight	Meter	--	--	13kg	15kg	15kg	13kg
	Accessory	---	--	5kg	--	--	5kg

Detailed Photos
Certifications
Company Profile Lucyelec Test Equipment Co., Ltd. engaged in oil Analysis and electrical test equipment since 2015, is your reliable partner and professional provider of test and measurement instruments in Baoding China.
Main Products:
1. Oil Test kits (BDV, Tan Delta, Flash Point, Water content, Interfacial Tension, Gas Chromatography, Kinematic Viscosity… etc)
2. Transformer testers /CT PT analyzer (TTR, Winding resistance, Winding deformation, Capacitance and tan delta test, Partial dicharge, etc)
3. SF6 Gas Analyzers (Dew point, Purity, Compensation, etc)
4. Switch/Circuit breaker analyzers (Contact resistance, Mechanical characteristics)
5. MOA/Insulator test devices
6. HV Hipot Testers (AC/DC/VLF)
7. Insulation/Earth resistance test
8. Secondary Injection Relay Test Sets
9. Cable fault location system
10. DC System/Battery Testers
11. Electric safety tools and test equipments
Similar Products Single Phase DC Resistance Tester 10A Three Phase Winding Resistance Tester 10/20/40/50A
