High Speed Machine Tool CNC Machinery Horizontal Machining Tool Center Heavy Turning Millinglathe Machine Ck6150b-1000
| US$8,000.00-15,000.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
CK6150B-1000
Application
Metal
Process Usage
Metal-Cutting CNC Machine Tools
Movement Method
Point to Point Control
Control Method
Closed-Loop Control
Numerical Control
CNC/MNC
Processing Precision
0.01~0.02(mm)
Performance Classification
Economical CNC Machine Tools
Condition
New
Tool Post Stations
4
Net Weight
2800kg
Automatic Grade
Automatic
Precision
High Precision
Transport Package
Seaworthy Packing
Specification
3000*1700*2000mm
Trademark
JT
Origin
China
HS Code
8458110000
Production Capacity
1500sets
Product Description
Product Parameters

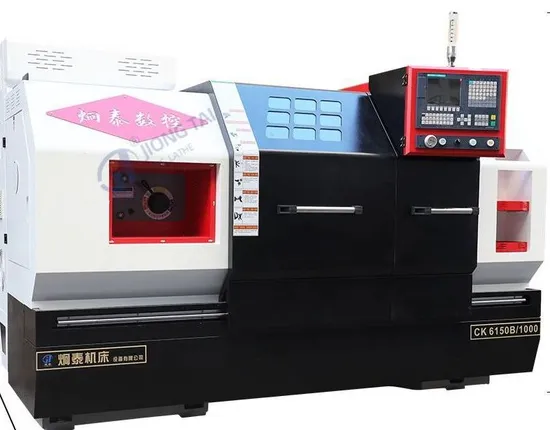

Cnc Turning Machine Cnc 2 Axis CNC Turning Center CK6150B-1000
Features
1. Integral casting for bed and foot.
2. High rigidity, high precision, high speed independent spindle, through hole is Ф82mm.
3. Motor direct drive with variable speed .
4. Optimized structure, good accuracy and super stability.
| ITEM | UNIT | CK6150B-1000 | |
| General Rules | CNC system | GSK | |
| physical dimention | mm | 3000*1700*2000 | |
| The total weight of machine tool | kg | 2800 | |
| Scope of work | Max. workpiece rotation diameter of bed body | mm | 500 |
| Max.machining length | mm | 290 | |
| The X axis | mm | 295 | |
| Max. Z-axis stroke | mm | 500,1000,1500,2000 | |
| Bed | Width of bed rail | mm | 405, pallet pasting, integral bed foot |
| Max. apex distance | mm | 500,1000,100,2000 | |
| Spindle | Spindle head type | A2-8 | |
| Taper of spindle inner hole | Metric No. 90 (1:20) | ||
| Main shaft aperture | mm | 82 | |
| Spindle speed | m | Three speed variable frequency, stepless speed change in gear, 45-260140-800280-1600 | |
| Spindle motor powwer | rpm | Ordinary motor 7.5/optional 11 | |
| Manual three -jaw collet dimensions | Manual three jaw chuck 250 | ||
| Servo shaft | X/Z ball screw | 2505/4010 | |
| X /Z axis motor power | nm | 6/10 | |
| Working accuracy | Fast feed speed | m/min | 6;8 |
| Positioning accuracy | mm | X axis (transverse)≤0.01 Z axis (longitudinal)≤ 0.015 | |
| Repeated positioning accuracy | mm | X axis (transverse)≤ 0.01 Z axis (longitudinal) ≤ 0.01 | |
| Roundness | mm | < 0.007 | |
| Consistency in diameter | mm | ≤ 0.03/Length 300 | |
| Flatness | mm | ≤ 0.02/Diameter 300 | |
| Surface roughness(steel parts) | um | <Ra1.6 | |
| Tailstock | Diameter of tailstock sleeve | mm | 75 |
| Tailstock sleeve stroke | mm | 150 | |
| Taper hole of tailstock center | MT5# | ||
