Printed Label Sticker Roll to Sheet Cutting Machine

Product Description

Product Description
Printed Label Sticker Roll to Sheet Cutting Machine
Functional Characteristics:
1.With MITSUBISHI Programmable Controller and DELTA Servo Motor Servo Driver
2.PLC touch screen operation to set any length, quantity,speed.
3.Equipped with automatic unwinding system and air shaft,which will be easy to load and unload.
4.Pulling roller with thick PU rubber coated and won't scratch the material.
5.Aluminum Guiding roller be polished and hard anodized,very smooth and never harm material.
6.SKD11 cutting blade to make sure the cutter use very very long time and cutting material perfect edge at cutting part
7.3 inch or 6 inch unwinding air shaft.
8.Can add the Panasonic photocell for printed mark,and can add electrical static eliminator to remove static electricity.
Scope Applicable:
It is applicable for the cutting of PVC film,insulation sheet,mylar,foam,industrial tape,electronic tape and various inch setting.through cutting and kiss cutting electronic materials.
Main Technical Parameters:

Model	Max feeding width(mm)	Power(kw)	Cutting speed(T/min)	Size(mm)	Weight(kg)	Position(mm)	Voltage
DP-360CQ	360	1	110	1150*1000*1230	400	±0.10	220V 50HZ
DP-500CQ	500	1.5	110	1250*1090*1230	500	±0.10	220V 50HZ
DP-600CQ	600	2.5	100	1300*1200*1250	700	±0.10	380V 50HZ
DP-800CQ	800	4	80	1400*1400*1250	1000	±0.10	380V 50HZ

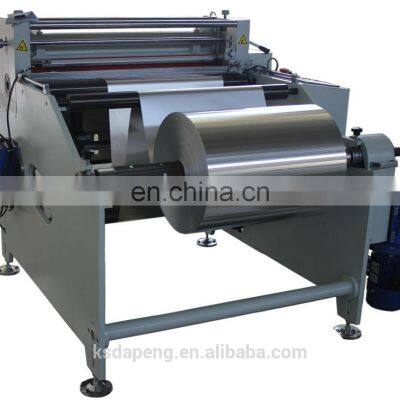

Product Pictures:
