Granite Compound Cone Crusher Shanghai
| US$60,000.00-700,000.00 | 1 set (MOQ) |
Basic Info.
Model NO.
HPY
Output Size
Adjustable
Feed Opening
Based on Model
Chamber
Can Be Changed
Drive
Electric
Crushing Degree
Intermediate Crusher
Crushing Style
Grinding and Impact
Principle
Fixed Culling
Cutter Material
Hard Alloy
Finished Surface
Outer Surface Process
Compressive Strength (For Crushing)
>300MPA
Tongs′ Features
Adjustable Tongs
Object
Rock, Stone, Ores
Transport Package
Wrapped by Plastic Sheeting or Wooden Box
Specification
based on model
Trademark
ATAIRAC
Origin
China
HS Code
8474
Production Capacity
50 Set/Month
Product Description

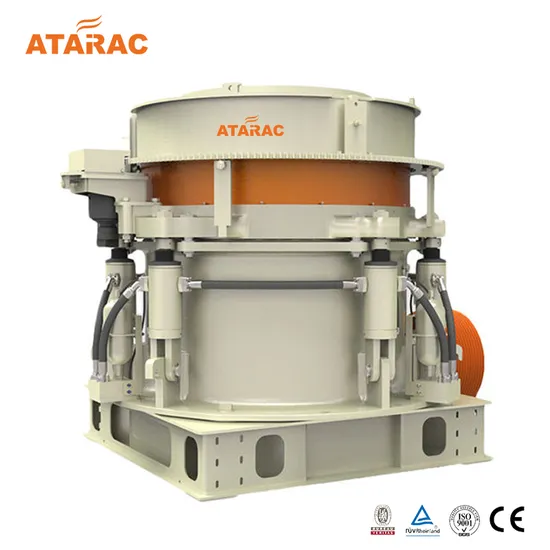

Our HPY Hydraulic Cone Crusher Compound Cone Crusher
Compared with Compound Cone Crusher, Our HPY Hydraulic Cone Crusher has following advantages:
HPY Advantages: Automatic lubrication system with hydrulic unit. Fixed main shaft, larger crushing force and production capacity. Automatic overload protection, tramp iron protection and chamber clearing function Hydraulic motor adjusting system, reliable and quick when replace bowl liner or mantle, and when change the discharge opening size. Best anti- dust system ensures the clean of lubrication system. PLC intelligent and remote control system. More than 90% spare parts can be changed with Metso, includeing mantle, bowl liner, mainshaft, etc.
Technical Parameter
| Model | Installation Power (kw) | 6mm | 8mm | 10mm | 13mm | 16mm | 19mm | 22mm | 25mm | 32mm | 38mm | 45mm | 51mm |
| HPY300 | 220 | 75-95 | 100-130 | 110-140 | 145-180 | 170-215 | 190-230 | 220-260 | 225-275 | 245-320 | 300-375 | 345-430 | |
| HPY400 | 315 | 105-140 | 135-170 | 180-225 | 215-275 | 250-320 | 275-345 | 285-365 | 315-425 | 350-480 | 400-540 | 455-615 | |
| HPY500 | 400 | 135-170 | 170-220 | 225-290 | 270-245 | 310-400 | 340-425 | 360-450 | 400-530 | 425-585 | 500-670 | 560-770 | |
| HPY800 | 630 | 240-335 | 315-420 | 375-500 | 420-540 | 465-590 | 490-725 | 545-790 | 585-920 | 670-990 | 765-1100 |
15%-30% higher than in open operation.
Cavity Selection
| Model | Cavity Type | Standard | Short Head | ||
| Minimum setting (mm) A | Feed opening(mm)B | Minimum setting (mm) A | Feed opening(mm)B | ||
| HPY300 | EF | 6 | 25 | ||
| F | 13 | 107 | 6 | 25 | |
| M | 16 | 150 | 8 | 53 | |
| C | 20 | 211 | 10 | 77 | |
| EC | 25 | 233 | |||
| HPY400 | EF | 6 | 30 | ||
| F | 14 | 111 | 6 | 40 | |
| M | 20 | 198 | 8 | 52 | |
| C | 25 | 252 | 10 | 92 | |
| EC | 30 | 299 | |||
| HPY500 | EF | 6 | 35 | ||
| F | 16 | 133 | 8 | 40 | |
| M | 20 | 204 | 10 | 57 | |
| C | 25 | 286 | 13 | 95 | |
| EC | 30 | 335 | |||
| HPY800 | EF | ||||
| F | 16 | 219 | 5 | 33 | |
| M | 25 | 267 | 10 | 92 | |
| C | 32 | 297 | 13 | 155 | |
| EC | 32 | 353 | |||
Packing & Delivery
