Anon Suspension Tractor Cheapest 3z Series Disc Ridger
| US$300.00-1,500.00 | 1 Set (MOQ) |
Basic Info.
Model NO.
AN3Z-120
Power Source
Tractor
Operation
Soil Preparation Machinery, Continuous Running Operation
Traction Type
Traction
Drive Type
Gear Drive
Arbor Configuration
Vertical Shaft
Certification
CE
Color
Red
Model
An3z-120
Working Width
1200mm
Ridging Height
150-240mm
Ridging Width
200-450mm
Matched Power
25-30HP
Weight
160kgs
Linkage
Standard Three-Point Mounted
Material
Steel
Transport Package
Iron Box
Specification
700X200mm
Trademark
ANON
Origin
Hubei
HS Code
8432100000
Production Capacity
5000sets/Month
Product Description

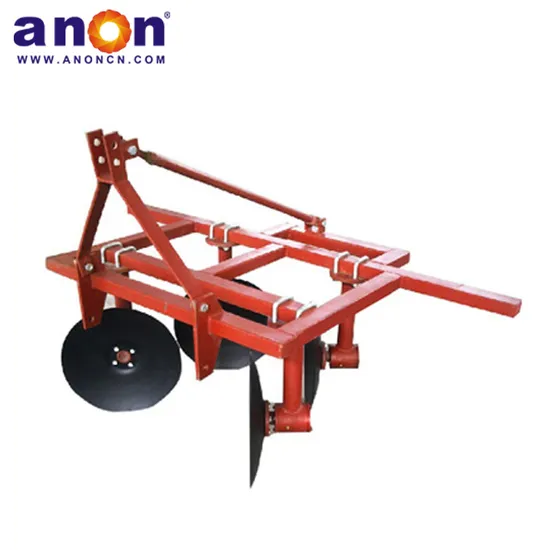

3Z series disc ridger ,it can be mounted with the tractor 12-120 hp.We can't see the wheel tracks on the soil after it worked. The quality of the disc ridger is good and the function very well.It is suited to dry land and paddy field. It can save time, labour and money etc.strong point.
It is mainly used for ridging in the field of potayo,beans,vegetables after tillage. It has the advantages of convenient adjustment in ridging spacing,ridging height,ridging rows and angle,wide range of matched tractors,good ability of adaption and so on.
| Item | AN3Z-80 | AN3Z-120 | AN3Z-180 | AN3Z-260 |
| L*W*H.(mm) | 1200*1000*1000 | 1200*1500*1000 | 1200*2050*1300 | 1200*2700*1300 |
| Working width(mm) | 800 | 1200 | 1800 | 2600 |
| Width of ridge(mm) | 200-450 | 200-450 | 200-450 | 300-500 |
| Height of ridge(mm) | 150-240 | 150-240 | 150-300 | 150-300 |
| Weight(kg) | 150 | 160 | 240 | 280 |
| Matched power(hp) | 15-20 | 25-30 | 55-70 | 60-90 |
