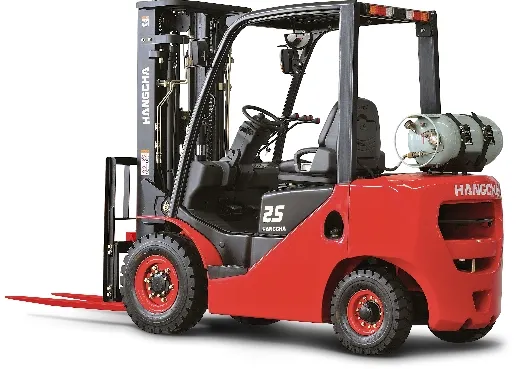

Hangcha Xf Series Euro 5 LPG 2.5ton 3ton Forklift
| US$10,000.00-15,000.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
CPCD25/CPCD30
Cab Location
Not Adjustable
Type
Ordinary Combustion Forklift
Power
Diesel Engine
Load Capacity
1.5-3.8t
Fuel
Gasoline
Load center
500mm
Lift height
3000-7000mm
Condition
New
Transport Package
Exporting Packing
Specification
As per model
Trademark
HANGCHA
Origin
China
HS Code
8427209000
Production Capacity
200000 Units/Year
Product Description
Hangcha X series 1.5-3.8ton gasoline/lpg forklift truckThe X series is the new series of internal combustion counterbalance forklift truck developed by Hangcha independently, adopting the world advanced technologies based on the original products. Through the comprehensive upgrading of appearance molding, energy conservation, environmental friendly, comfort, security and reliability, it will become the world-class forklift truck which can meet your overall demands.Standard specification*hydraulic( automatic) transmission*duplex mast, also called 2 stage mast, wide view *lifting height 3 meters *fork length 1070mm*pneumatic tyre*LED display
*hand grip
*oil-water separator*with seat, belt,horn,working lamps, mirror etc
Options*2 stage or 3 stage mast,lifting height 3-7 meters*side shifter *solid tyre *cabin, heater, air conditioner
*extended fork length 1070mm-2570mm etc longer
*others...
| 1 | Manufacturer | HANGCHA GROUP CO., LTD | |||||||
| 2 | Manufacturer's type designation | CPQD15-XRW21 CPQYD15-XRW21 CPYD15-XRW51 | CPQD18-XRW21 CPQYD18-XRW21 CPYD18-XRW51 | CPQD20-XRW22 CPQYD20-XRW22 CPYD20-XRW52 | CPQD25-XRW22 CPQYD25-XRW22 CPYD25-XRW52 | CPQD30-XRW22 CPQYD30-XRW22 CPYD30-XRW52 | CPQD35-XRW22 CPQYD35-XRW22 CPYD35-XRW52 | CPQD38-XRW22 CPQYD38-XRW22 CPYD38-XRW52 | |
| 3 | Drive | gasoline/lpg | gasoline/lpg | gasoline/lpg | gasoline/lpg | gasoline/lpg | gasoline/lpg | gasoline/lpg | |
| 4 | Operator type | Seated | Seated | Seated | Seated | Seated | Seated | Seated | |
| 5 | Rated capacity/rated load | Q (kg) | 1500 | 1750 | 2000 | 2500 | 3000 | 3500 | 3800 |
| 6 | Load centre distance | c (mm) | 500 | 500 | 500 | 500 | 500 | 500 | 500 |
| 7 | Service Weight | kg | 2720 | 2880 | 3450 | 3850 | 4380 | 4750 | 4950 |
| 8 | Tyres | Pneumatic | Pneumatic | Pneumatic | Pneumatic | Pneumatic | Pneumatic | Pneumatic | |
| 9 | Tyre size, front | 6.5-10-10PR | 6.5-10-10PR | 7.00-12-12PR | 7.00-12-12PR | 28×9-15-14PR | 28×9-15-14PR | 28×9-15-14PR | |
| 10 | Tyre size, rear | 5.00-8-10PR | 5.00-8-10PR | 6.00-9-10PR | 6.00-9-10PR | 6.50-10-10PR | 6.50-10-10PR | 6.50-10-10PR | |
| 11 | Height, mast lowered | h1 (mm) | 1995 | 1995 | 1999 | 1999 | 2054 | 2169 | 2169 |
| 12 | Free lift | h2 (mm) | 155 | 155 | 160 | 160 | 165 | 170 | 170 |
| 13 | Lift | h3 (mm) | 3000 | 3000 | 3000 | 3000 | 3000 | 3000 | 3000 |
| 14 | Height, mast extended | h4 (mm) | 3955 | 3955 | 4045 | 4045 | 4140 | 4140 | 4140 |
| 15 | Height of overhead guard (cabin) | h6 (mm) | 2120(2220) | 2120(2220) | 2120(2220) | 2120(2220) | 2150(2250) | 2150(2250) | 2150(2250) |
| 16 | Overall length | l1 (mm) | 3205 | 3240 | 3615 | 3680 | 3770 | 3850 | 3880 |
| 17 | Length to face of forks | l2 (mm) | 2285 | 2320 | 2545 | 2610 | 2700 | 2780 | 2810 |
| 18 | Overall width | b1/b2(mm) | 1090/1485 | 1090/1485 | 1155/1595 | 1155/1595 | 1225/1725 | 1225/1725 | 1225/1725 |
| 19 | Fork dimensions | s/e/l (mm) | 35×100×920 | 35×100×920 | 40×122×1070 | 40×122×1070 | 45×122×1070 | 50×122×1070 | 50×122×1070 |
| 20 | Turning radius | Wa (mm) | 2035 | 2060 | 2270 | 2330 | 2400 | 2440 | 2480 |
| 21 | Minimum pivoting point distance | b13 (mm) | 600 | 600 | 780 | 780 | 810 | 810 | 810 |
| 22 | Travel speed, laden/unladen | km/h | 16.5/17.5 | 16.5/17.5 | 20/21 | 20/21 | 18/19 | 18/19 | 18/19 |
| 23 | Lift speed, laden/unladen | m/s | 0.5/0.55 | 0.5/0.55 | 0.55/0.60 | 0.55/0.60 | 0.46/0.50 | 0.38/0.45 | 0.38/0.45 |
| 24 | Lowering speed, laden/unladen | m/s | 0.45/0.50 | 0.45/0.50 | 0.45/0.50 | 0.45/0.50 | 0.45/0.50 | 0.35/0.40 | 0.35/0.40 |
| 25 | Engine | K21 | K21 | K25 | K25 | K25 | K25 | K25 | |
