US$60,800.00-90,800.00
|
1 Piece
(MOQ)
|
Basic Info.
Plastic Type
Thermoplastic
Certification
CE, ISO9001:2008
Injection Weight (G)
2404 G
Screw Diameter (mm)
95 mm
Injection Rate (G/S)
725 G/S
Mold Height(mm)
300 - 770 mm
Ejector Stroke(mm)
220 mm
Product Description

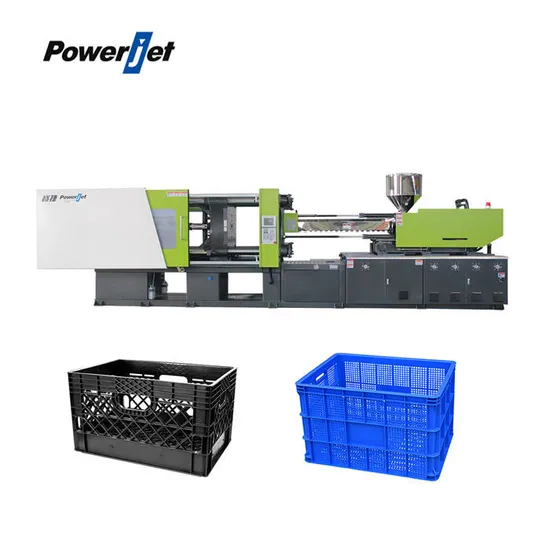

Powerjet injection molding machines especially for plastic crates, baskets
Plastic baskets as the kind of low-margin product made with recycled material, it requires high production efficiency of the machines. Powerjet has developed a special series for a product like fruit crates, baskets, etc. The Plastic Baskets Injection Molding Machine works perfectly well with the crate molds, ensuring higher production capability and stable product quality.
FEATURES:
1:Longer Screw Lift-time - Match with double alloy screw barrel, more wear-resisting, corrosion.
2:Large Shot Weight - Specially designed larger-diameter screw, not only the injection volume is large, but also reduces the charging time.
3:Shorter Cycle Time - Increase the hydraulic system, shorten the production cycle, improve production efficiency.
4:Saving More Energy - Match with efficient imported variable pump, lower the production cost.
5:More Stable - Use a new rigid frame, shock absorption is better, and resulting in more stable production.
Product Description
| DESCRIPTION | UNIT | FB450-V6 |
CLAMPING UNIT | Clamping force | KN | 4500 |
Opening stroke | mm | 750 |
Max.datlight | mm | 1520 |
Platen size | mm | 1070*1050 |
Space between bars | mm | 760*740 |
Max.mold height | mm | 770 |
Min.mold height | mm | 300 |
Ejector stroke | mm | 220 |
Ejector force | KN | 135 |
INJECTION UNIT | Screw diameter | mm | 95 |
Screw L/D Ratio | L/D | 18.7 |
Injection Pressure | MPa | 107 |
Shot volume | cm3 | 2694 |
Screw stroke | mm | 380 |
Screw speed | rpm | 180 |
POWER UNIT | Hydraulic system Pressure | MPa | 17.5 |
Pump motor power | KW | 55 |
Heater power | KW | 22 |
