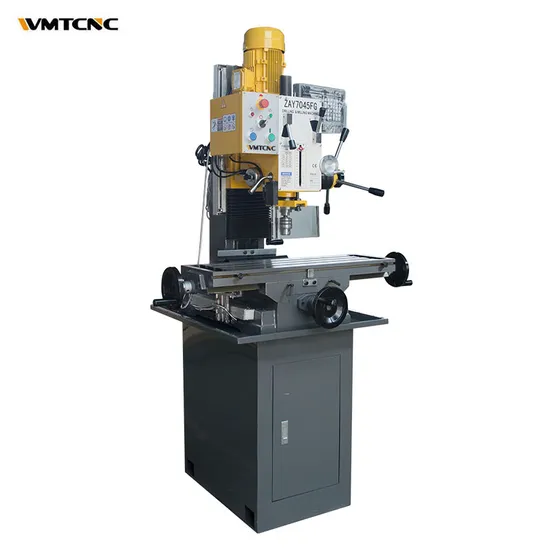

High quality multifunction ZAY7045FG small bench drilling and milling machine with ce

High quality multifunction ZAY7045FG small bench drilling and milling machine with ce

US$1,180.00 1 Set (MOQ)

Basic Info.

Model NO.
ZAY7045FG
Type
Worktable Milling Machine
Object
Tool
Structure
Desktop
Milling Cutter Type
Vertical Milling Cutter
Milling Cutter Structure
Integral
Controlling Mode
Artificial
Automatic Grade
Manual
Precision
Normal Precision
Certification
GS, CE, ISO 9001
Condition
New
Table size
800*240mm
Spindle travel
130mm
Max. drilling capacity
45mm
Max. tapping capacity
20mm
Motor power
1.5kw(2HP)
Spindle taper
MT3 MT4 or R8
N.w/G.w
320/370kg
Transport Package
Standard Plywood Package
Specification
CE, ISO9001
Trademark
wmtcnc or Customized Logo
Origin
Anhui, China
HS Code
84592900
Production Capacity
100 Sets/ Month

Product Description


Product Description
High quality multifunction ZAY7045FG bench drilling and milling machine main features:
1. Step speed changed cyclically and spindle auto-feeding and cyclic change of feeding speed;2. Milling, drilling, tapping, boring, reaming;3. Head swivels ±90°verticaly;4. Spindle micro feed precision;5. Adjustable gibs on table precision;6. Accurate position, strong rigidity, powerful cutting;7. Gear-driven type and square column.
Specification
ZAY7045FG
Max. drilling capacity
45mm
Max. tapping capacity
20mm
Max. face milling capacity
80mm
Max. end milling capacity
32mm
Max. distance from spindle nose to table
450mm
Min. distance from spindle axis to column
260mm
Spindle travel
130mm
Spindle taper
MT3 MT4 or R8
Step of spindle speed
6 steps
Range of spindle speed 50HZ
80-1250rpm
Range of spindle speed 60HZ
95-1500rpm
Swivel angle of headstock(vertical)
±45°
Table size
800×240mm
Forward and backward travel of table
175mm
Left and right travel of table
500mm
Motor power
1.5kw(2HP)
N.w/G.w
320/370kg
Packing size(LxWxH)
770×880×1160mm
Loading amount/20" container
36pcs

Detailed Images
Company Profile
FAQ
Q1: How is the warranty?
A1: Warranty time is 13 months after BL date.
Q2: Can we visit your factory before order?
A2: Sure.All new and old friends are welcomed to visit us at our factory. Besides, we can pick up you at the station or airport if needed. We will be very honored to help with tickets and accommodation booking.
Q3: Do you have a stock?
A3: Sorry, most of our machines don't have stock, we always produce according to order. However, if during fairs months, maybe have few samples back from fairs.
Q4: What's the MOQ?
A4: One set only.
Q5: How about your quality?
A5: We have approved the ISO9001:2008 Quality management system.ISO14001 Environmental management system, OHSAS18001 International occupational health and safety management system, and Social Accountability 8000(SA8000). Most products have been approved by the European and American safety standards, including CE, GS, EMS&UL,90% of our products are exported to more than 60 countries and regions around the world, especially to Europe and America market and always win high reputation. So you can rest assured of our quality products and our best services.
Q6: Do you have professional engineers?
A6: Yes, we have professional engineers and designers. We can provide OEM services.
Q7: Can you provide customized machines?
A7: Yes, we can design and manufacture according to your specific requirements.
