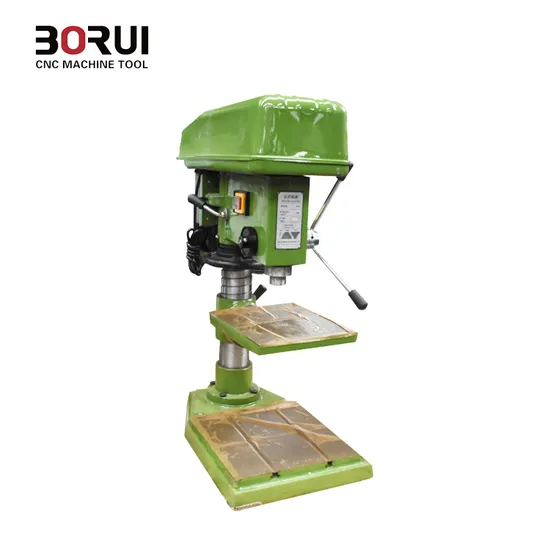

Z4132 Metal Portable Electric Handheld Drilling Machine with 125mm Spindle Travel

Product Description

Z4132 Metal Portable Electric Handheld Drilling Machine With 125mm Spindle Travel
Product Description
Z3050*16 Hydraulic radial drilling machine is a double column, all hydraulic radial drilling machine. With widely use of universal machine, suitable for in machinery manufacturing departments in the processing of small parts, drilling, reaming, reaming, countersink flat and tapping. In process equipment conditions, can also be used for boring.
The main specification:

Specifications	UNITS	Z3050×16
Max. drilling dia	mm	50
Distance from spindle nose to table surface	mm	320-1220
Distance between spindle axis and column surface	mm	350-1600
Spindle travel	mm	315
Spindle Cone		No.5
Spindle speeds range	r.p.m	25-2000
Spindle speed step		16
Spindle feeding range	r.p.m	0.04-3.2
Spindle feeding step	r/min	16
Rocker rotary angle	°	360
Main motor power	kw	4
Movements motor power	Kw	1.5
Weight	Kg	3500
Overall dimensions	mm	2500×1070×2840

Standard Accessories:
Frequency Inverter Main Motor,
Stroke Motor,
Coolant system,
Cube Table ,
Digital Readout of Speeds,
Frequency Inverter,
Work Lamp,
Tools and Toolbox
Optional Accessories:
1.Quick change chuck
2.Tapping Chuck
3.Grease Gun
The main performance characteristics:
1 . Counter balanced spindle
2 . Pressurized lubrication system
3 . Hydraulic clamping with push button controls
4 . Hydraulic preselected shifting of feeds and speeds
4 . Hardended and precision ground ways
5 . Hardened and ground gears and shafts
6 . Heavily ribbed cast iron base and arm

Details Display
Packing shipping
For machine: usually by sea;
For documents: by international express, eg. DHL,TNT or EMS.
For packing :Free fumigation plywood packaging steel base
our service
1. Technical support online service provided.
2. Technical files service provided.
3. Machine operation video provided
4. On-site training service provided.
5.Spare parts replacement and repair service provided.
6 All of the questions will be replied within 8 hours
7. If you need to develop products with your own specification, we can
help you to work it out.
8. Always be honest, never lie to customer, and never declare anything
we don't have

Company Profile
Since 1996,20 years' history for machine tool manufacturing
10 years' history for export
Total 2 manufacturing bases in china
Sino-germany technology cooperation
Production of 8 categories, more than 130 kinds of products
Set up design&research center at TAIWAN
Exported to total 48 countries in the world covered most areas
One-stop shopping for nearly all other types' machine tools
FAQ
1:How can I choose the most suitable machines ?
A: Please tell me your specifications ,we can choose the best model for you , or you can choose the exact model You can also send us the products drawing ,we will choose the most suitable machines for you .
2: What's your main products of your company?
A: We specialized in all kinds of machines ,such as CNC Lathe Machine ,CNC Milling Machine ,Vertical Machining Center ,Lathe Machines ,Drilling Machine ,Radial Drilling Machine ,Sawing Machine ,Shaper machine and so on .
3: Where is our factory located? How can I visit there?
A : Our factory is located in Tengzhou City ,Shandong Province,277500 China. You are warmly welcomed to visit us.
4. What is your trade terms?
A : FOB, CFR and CIF all acceptable.
5: What's the Payment Terms ?
A : T/T ,30% initial payment when order ,70% balance payment before shipment ;
Irrevocable LC at sight .
6: What's the MOQ?
A: 1 set .(Only some low cost machines will be more than 1 set )
We want to know:
1.What's your Industrial Voltage?
2.We strongly suggest you to tell us size, material of your workpiece for our evaluation, if possible, better to send us workpiece drawing, so that we can recommend you most suitable model!
3.If need CIF Price, please kindly tell us the port of destination.
