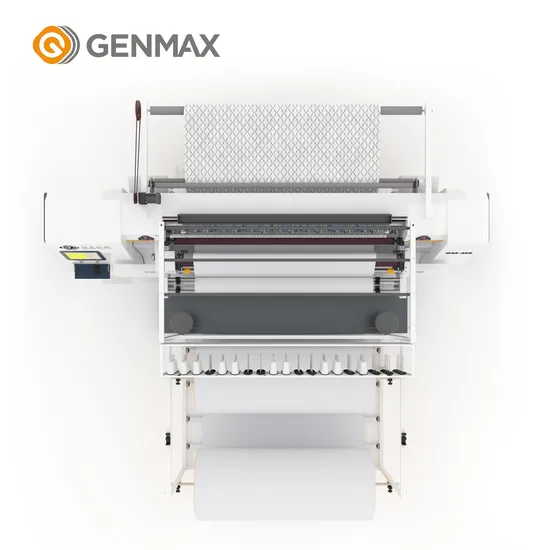

Computerized Chain Stitch Looper Type Quilting Machine
| Negotiable | 1 Piece (MOQ) |
Basic Info.
Model NO.
M5
Certification
ISO, CE, SGS
Condition
New
Voltage
380V
Type
Computerized Quilting Machine
Size(Length*Width*Height)
4820*1650*2060mm
Quilt Width
2450mm
Rotation Speed
600-1200rpm
Production Speed
60-300m/H
Stitch Size
3-7mm
Quilting Thickness
<80mm
Computerized
Computerized
Transport Package
Wooden Case
Specification
Set
Trademark
Genmax
Origin
China
HS Code
84522190
Production Capacity
1000 Sets
Product Description
If you need more detailed information and other models, please email us. We will promptly reply to you.Automatic lubrication system enables labor saving and long life of the machine.
Japanese famous brand bearings and precise casting spare parts are used on the machine, which ensures long life of the machine.
Automatic stop when up Or bottom thread is broken, and both up and down safety infrared protection.
Delta VFD (variable-frequency driver) drives main shaft (Z shaft), Panasoni servo driver& motor control the saddle (×shaft) and roiler (Y shaft).
Both continuous patterns and Tack &jump patterns (360°and180° ) are available.
Controlling system based on Windows, CAD drawing.
Automatic stop when pre-set processing length is finished, which is saving labor and easy operation.
Automatic detection of machine running condition.
Optional: 0.5 inch needle distance, capable of making more patterns.
| Model | M5 | Quilting Width | 2450mm |
| Needle bar distance | 50.8, 76.2, 27(5")/76.2, 76.2, 152.4(6") | Needle distance | 25.4mm |
| X-axis movement displacement | 304.8mm | Quilting thickness | <80mm |
| Stitch Length | 3-7mm | Capacity | 60-300(m/hour) |
| Needle Type | 24/180 23/160 22/140 21/130 | Main shaft speed | 500-1200(rpm) |
| Voltage | 380V/50Hz 220V/60Hz, 3-Phase | Power | 7Kw |
| Dimension(L xW x H) | 5400 x 1650 x 2050mm | Weight | 4800Kg |
