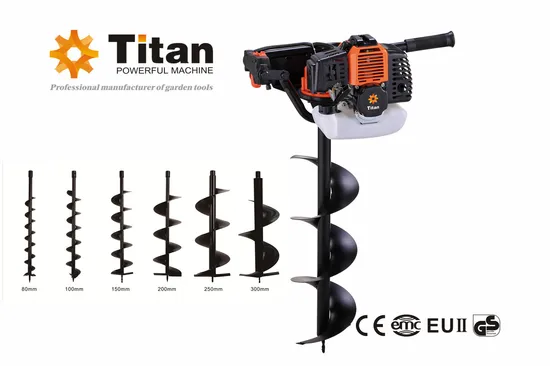

52cc Petrol Earth Auger(TT-GD520)

Product Description

MODEL: 52cc petrol hand tool drill press TT-GD520
1. Shaper and replaceable cutter head for earth driller which make the drilling more convenient on the hard boden.
2. Certificates: EU2, GS, CE, EMC
3. Above 500 PCS, OEM is available
4. Package with foam inner liner
5. Diller: 80mm, 100mm, 150mm, 200mm, 250mm, 300mm
6. Extension poles: 40cm, 60cm
7. Using range: Plant trees, make fence, apply fertilizer, viresence etc.
Quality & Inspection:
Cooperated with good reputation suppliers of auger spare parts.
100% check earth auger spare parts quality which produced from matching suppliers.
QC checking each step from spare parts to production on the full of line.
70% workers are skilled in this industry.
DIGITAL IGNITION
Better performance has been specially developed by Titan digital ignition. The digital ignition ensures easy engine strating under all conditionals, cleaner engine and lower emissions to make earth auger work well.
PISTON
For reducing vibration are used light pistons. All pistons of augers are maden of special cast. Iron piston rings have two and ensure a longer service life.
FUEL TANK
Larger cap from the fuel tank for easier filling. Hoses are made of Viton, which is a special material resistant to corrosion and unleaded gasoline to high temperatures. Special equipment to prevent escape of vapors.
HEAT SHRINK TUBING
Heat shrink tubing is assemlyed on the handle of earth auger, in order to make users to fell comfortable and stable.
DRILLS
Drills are make from good material and are stronger. 1 m long meter drills are also suppliable. Besides, there is a rubber cap for drill, avoilding the cartons is destoyed by drill point.
STARTER
Normal starter, but the screw hole ia made with sopper bush. That makes the starter could assemble and unassemble many time and keeps a long life.
CARBURETOR
The engines are using good quality brand carburetors. For faster and easier starting hand is used starter that draws fuel mix into the carburetor. The membranes are made of a special Teflon material to with stand unleaded gasoline.
GEAR
Reliable highly resistant gear designed to withstand the maximum and working conditions.
EXHUAST
In the production of special material is used (1.0mm thick), which reduces noise emissions.
Titan technology used in the production of this component increased durability due to reduced exhaust rate of ware ( caused by high temperature and oil).
Package:
Standard exported color carton(. >=500pcs).
Violin-style color carton or Blow molding package are available.
We will use standard exported package if no special requirments, but it is available to provide colour package according to your design or we make design for you using your brand basing on the quantity more than 500pcs.
Plant
1.6 working line enaure our production ablity.
2. More than 100 skilled workers and employees including senior foreign trade salesmen and production manager with more than ten years' experience.
3. The factory covers a floor space of over 25, 000 m2
4. CERTIFICATE OF CONFORMOTY OF QUALITY MANAGEMENT SYSTEM CERTIFICATION: ISO9001: 2008
5. SGS reports by Made-in-China: TITAN IS AUDITED SUPPLIER
Main Markets:
· Europe
· South America
· Southeast Asia
· Middle East
. Russia

Item		TT-GD520
Engine Model		1E44F-5
Displacement		52cc
Rated Power		2.2kw/7500rpm
Ideel Speed		3000+-200rpm/min
max. Speed		9000rpm/min
Color		Engine: Orange& Black
		Diller: Black
		cowl hood, gear case, throttle button, trigger are orange
Worm Gear		Iron
Carburator		Diaphragm type/chinese
Starter		CDI
Fuel Tank		1200ml
Drill Diameter		100mm/150mm/200mm
Drill Length		80cm
G. W. /N. G.		20kg/17kg(with three drills)
Carton		5 layers brown carton
Carton Meas		830*570*280mm
PACKING		brown box or color box with supporting materials in side, each in one box.
ACCESSORIES		instruction manual; mixture bottle; 3 drillers, driller protector.

ZHEJIANG TITAN MACHINERY CO.,LTD is located in Gangtou Industiral Zone, Wuyi County, Zhejiang Province. Titan is specialized in manufactureing gasoline chain saw, brush cutter, water pump, hedge trimmer, multifunctional cutter, earth auger.We have full Certificates such as CE, GS, EU2.EMC etc. Thanks to the regional and industrial advantages in China's hardware capital, Titan is currently undergoing a very rapid growth. The factory covers more than 30,000 m2 and employs more than 100 workers.
OFFICE BUILDING
MEETING ROOM
Exhibition
Certification
FAQ

Do you provide sample? Yes, But samples fee and freight fee will be charged firslty and the sample fee will be deducted after you place the mass order.

What's the Warranty for your products? We provide 1 year warranty. Free spare parts will be provided in next order if any problems caused by non-human factors.

what's your MOQ? Different products have different MOQ, usual chain saw and brush cutter 's MOQ is 100pcs.

what's your delivery time? 15-30days after order confirmation and advance payment.

How about the packing? Packing will do as customer 's requirment if order quantity achieved to 500pcs. The normal factory packing will be used if the order quantity is less than 500pcs.

what certification do you have ? For European customer , we have CE,GS ,EURO-II certification.

Do you accept OEM or ODM? Yes.
