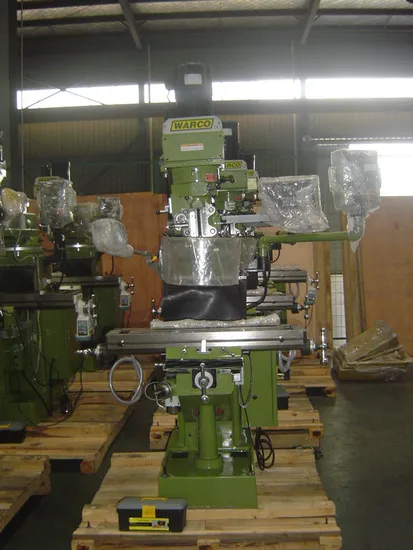

Precision Universal Turret Milling Machine

Product Description

Precision tool turret milling machine for sales(0SS)
Feature
Machine base, knee and table are made by MEEHANITE Cast Iron construction.
Equipped with cooling system.
Slideways are hardened, precision ground.
All castings are FC25 high quality material, anneal treated to relieve internal stress,
Centralized control panel minimizes operation fatigue while permitting efficient iperation.
The spindle runs on precision bearings for long term high speed runnig, heavy duty cutting and maxium stablity.
The gaars from the head assembly are hardened and precision groudn. (For OVS, OEVS)
Milling Head can titles 90 degree right and left.
X, Y, Z axis are dovetail way
Standard Accessory:
Handle oil pump
Y-Axis dust cover
Coolant pump and splashguard
Working lamp
Electric cabinet and stanard box
Forward reverse switch(frequency without)
Tools and toolbox
0#: Three miller per pallet
2#: Two miller per pallet
4#: Two miller per pallet
5#: Two miller per pallet
Optional Accessory:
TONE automatic power feed
X-Axis
Y-Axis
Tone automatic power feed
X-Axis
Y-Axis
Z-Axis
Gear drive mechanical power feed
X-Axis
Y-Axis
SINO digital readout
2-Axis
3-Axis
Spindle protection with micro-switch
Luxury operation panel
Air draw bar
Z-Axis lifting motor
Worktable protection
Milling head as NT40Φ 86
6"Machine vice
8"Machine vice
58 pcs clamping kits
15 pcs milling collects
Automatic lubrication pump
5# machine with universal milling hesd
2# 9"X49" work table
4# 10"X54"worktable
5# 12"X60"worktable
Square guideway

Specifications
Item	MDM-0S	MDM-0SS	MDM-0VS	MDM-0EVS
Drilling Capacity in Cast Lron	OD-15mm	OD-18mm		OD-15mm
Drilling Capacity in Steel	OD-13mm	OD-15mm		OD-13mm
Capacity face milling	OD-75mm/5mm
Capacity end milling	OD-20mm/6mm
Spingle Taper	R8	R8/NT-30
Diameter of Quill	86mm(3-3/8")
Number of Spindle Speeds	10	16	Variable	Inverter
Range of Spindle Speeds(50HZ)	100-1250rpm	65-4550rpm	50-3500rpm	0-2000rpm
Range of Spindle Speeds(60HZ)	120-1500rpm	80-5440rpm	60-4200rpm	0-2000rpm
Power feed of Speedle	None	0.04/0.08/0.15mm/rev		None
Number of power Feeds	None	3	3	None
Spindle Travel	127mm(5")
Head Movement(L to R)	90°
Head Tilt	None
Max. Distance Spindle to Table	25-380mm(0.98"-15")	15-370mm(0.59"-14.6")		25-380mm(0.98"-15")
Max. Distance Spindle to Colum	400mm(15-3/4")
Min. Distance Spindle to Colum	134mm(5-1/4")
Collet Capacity	3mm-16mm(1/8"-5/8")
Size of Table	200mm×910mm7-7/8X36")
Longitudinal Table Travel/X-Axis	560mm(21-1/4")
Cross Table Travel/Y-Axis	240mm(9-1/2")
Number of T-Slots	3
T-Slot Size	16mm(5/8")
T-Slot Centers	64mm(2-1/2")
Max. Weight of Workpiece	250kg
Travel of Knee	350mm(13-3/4")
Overarm Travel	266mm(10-1/2")
Overall Dimensions WxDxH	1400mm×1320mm×1950mm(55"X52"X76-3/4")
Horse Power for Main Motor	1.1kw(1.5HP)	2.2kw(3HP)		1.5kw(2HP)
N.W/G.W(approx.)	730/840kg	785/895kg	785/895kg	800/900kg
