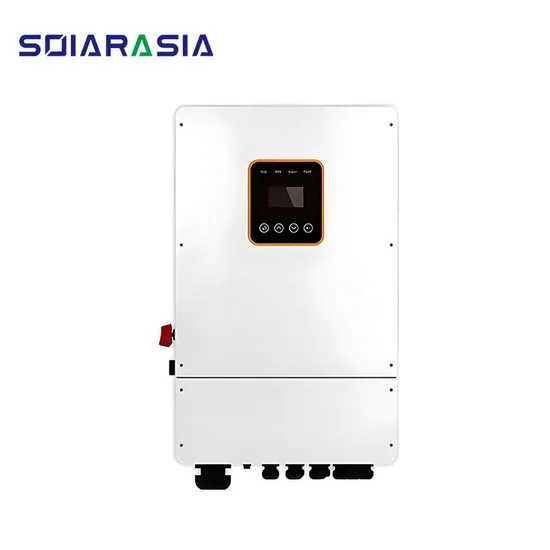

Megarevo Good Quatily 3kw 4kw 5kw 6kw Solar Inverter Hybrid Split Phase
Basic Info.
Model NO.
REVO Series
Nature of Source Flow
Active Inverter
Phase
Three
Output Power
>1000W
Certification
SAA, CE, ROHS, ISO9001, IEC
Brand
Megarevo
Type
DC/AC Inverters
Power Source
Solar Power
Circuit Topologies
Push-pull Type
Nature of Wave String
Sine Wave Inverter
Rated Power
8000W
Battery Voltage
48V
Application
Solar Power System Home
Product Name
MPPT Hybrid Solar Inverter
Communication
RS485/WiFi/4G/Can/DRM
Protection
IP65
Transport Package
Original Package
Specification
460mm*225mm*760mm
Trademark
megarevo
Origin
China
Product Description
Product DescriptionProduct Parameters
| Model | R5KLNA | R6KLNA | R7KLNA | R8KLNA |
| ON GRID AC OUTPUT | ||||
| Rate AC Output Power | 5KVA | 6KVA | 7KVA | 8KVA |
| AC Output Voltage | 120/240Vac (split phase) | |||
| AC Output Frenquecny | 50/60Hz | |||
| Grid Type | Split phase | |||
| Max Output Current | 24A | 28.8A | 36.5A | 38.3A |
| AC reverse charging | Yes | |||
| PF | 0.8leading-0.8lagging | |||
| BACK-UP AC OUTPUT | ||||
| Rated Backup output power | 5KVA | 6KVA | 7.6KVA | 8KVA |
| Backup AC output Voltage | 120/240Vac(split phase) | |||
| AC Frenquency | 50/60Hz | |||
| PV INPUT | ||||
| PV input power | 7.5kW | 9kW | 12kW | 12kW |
| MPPT number | 4 | |||
| PV voltage range | 350V/85V-500V | |||
| MPPT voltage range | 120V-500V | |||
| Single MPPT input current | 12A | 12A | 12A | 12A |
| BATTERY | ||||
| Max charging /discharging current | 120A / 120A | 135A / 135A | 190A / 190A | 190A / 190A |
| Battery Voltage range | 48V | |||
| Battery Type | Lithium-ion,Lead-acid | |||
| GENERAL DATA | ||||
| Operation Temperature range | -25 ~ +60°C | |||
| Environment humidity | 0-95% | |||
| IP rank | IP65/NEMA 3R | |||
| Weight | 32kg | |||
| Dimension (W × H × D) | 430 × 710 × 210mm | |||
| Cooling | Fan Cooling | |||
| Noise emission(dB) | <25 | <29 | <29 | <29 |
| Display | LCD | |||
| Safty / On Grid | CSA C22.2 No. 107.1:16,IEEE1547, CPUC Rule21, SRD V2.0 | |||
Project Case
FAQ
Q1: How to install and use the solar inverter?
A1: We have the English teaching manual and videos; All the videos about every step of machine Disassembly, assembly, operation will be sent to you.
Q2: What if I don't have import experience?
A2: We have reliable forwarder agent which can ship items to you by sea/air/Express to your doorstep. Any way, we will help you choose the most suitable shipping service.
Q3: How is your technical support?
A3: We provide online service through Whatsapp/ Skype/ Wechat/ Email. Any problem after delivery, we will offer you video call anytime, our engineer will also go to oversea help our customers if necessary.
Q4: Can you get the the solar inverter customized for us?
A4: Of course, brand name, machine color, designed unique patterns available for customization.
