Surgical Medical Equipment C-Arm Electric Operating Table

Product Description

1. Suitable for various surgical hands and special surgical positions, it can be equipped with various head frames with X-ray transmission.
2. Equipped with microcomputer control, two independent control systems ensure that when one set of operating tables fails, another set of backup systems will be activated. Set up a safety lock key to prevent misoperation.
3. Single-sided column design, with a large space under the table, to provide a larger range of functions for C-arm X-ray machine fluoroscopy and other equipment.
4. The head section and leg section of the operating table are detachable and interchangeable to meet the needs of various surgical positions.
5. Modular design, flexible and changeable various positions to meet the requirements of different surgical procedures.
6. All sections are made of materials that can transmit X-rays.
7. The side rails, base and pillars of the operating table are made of high-quality 304 stainless steel, which is corrosion-resistant, easy to clean and durable.
8. Built-in large-capacity battery, which can support ≥30 surgical needs after power failure, ensuring smooth operation under unexpected conditions.

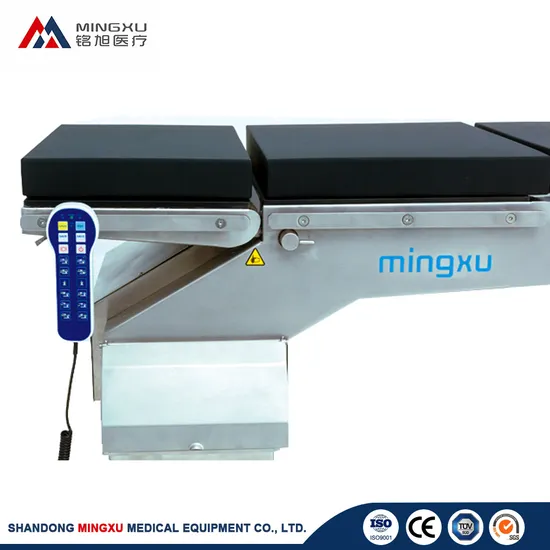

9. Equipped with a display hand controller, the remote control adopts button operation, which can realize one-button horizontal reset,
The interface will automatically lock if there is no operation for 30 seconds, and one-button unlocking function. It has one-button reset, flexion and anti-flexion
10. The base adopts a double-bearing stainless steel wheel design and an automatic balancing hydraulic column locking system, which makes the bed extremely flexible and convenient to move, and ensures that there will be no movement between the bed and the ground when it is fixed.
11. Mattress: A memory foam mattress is used, which effectively relieves the patient's pressure points and prevents the occurrence of postoperative bedsores; the mattress material meets the safety standards, the surface is antibacterial and easy to clean, and meets the disinfection requirements of the operating room.
12. Key brake part: The base of the operating bed adopts a large T-shaped structure design, and the electric hydraulic control four-point brake device. Once locked, the bed will not change its position, ensuring that the bed is stable and safe during the operation.
13. The design of the whole machine meets the national medical electrical safety standards and is equipped with accessories with various functions to meet the needs of different surgeries.

Table length and width	2000mm/520mm
Maximum and minimum height of table	650mm-950mm
Maximum tilt angle of table front and back	±28°
Maximum tilt angle of table top	±18°
Hip panel fold angle	+75°.-40°
Leg board adjustment range (manual)	Fold down 90° Extension 90° Fold up 15°
Headboard adjustment range	Upward bend 30° Downward bend 30°

Serial number	appellation	quantity
1	Operating table	1
2	Arm rack	2
3	Leg support	2
4	Electric brake	1
5	Handheld Controller	1
6	Column controller	1
7	Body harness	1
8	Square Slider	3
9	Anesthesia screen	1
10	Power cord	1
11	Certificate	1
