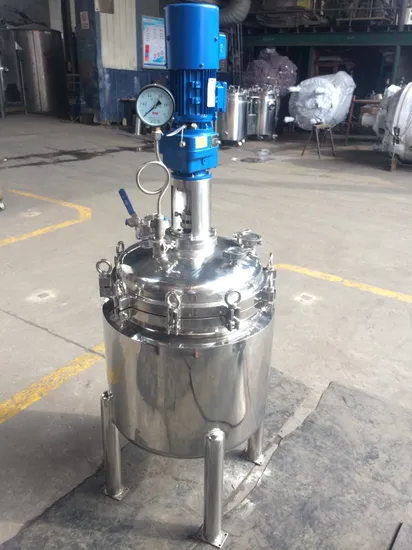

Industrial High Pressure Stainless Steel Cladding Catalyst Hydrogenation Reactor

Product Description

Product Description


Feature
•Impact structure, small volume, Light weight, easy operation, low noise, stable operation. The biggest features: no grinding materials and combination of shearing at high speed, mixing, dispersion and homogenization.
•Reasonable ratio of diameter to height, energy-saving, fast mixing of materials, high efficacy of emulsification and homogenization.
•The inside wall is processed by electrolytic mirror polishing or mechanical polishing, and the outside wall adopts 304 full welded insulation structure. The outside surface is processed by mirror polishing or matting polishing. Opening techniques of all inlets outlets, sight glass and man hole and welding joints in tank use the flanging process of arc transition.
•Easy to clean, stable in production, meeting the GMP standard.
•Volume: 600L-20000L and multiple specification, also can design and manufacture according to customers'requirement.

Tank Optional Configuration
Emulsification Tank can configure 0.2um hydrophobic sterile air filter, thermometer (Digital display or Dial type), 2 sight glasses, steam sterilization hole, sanitary manhole, liquid in-outlet, CIP rotating cleaning ball liquidometer and Liquid level control system (Bearing module, non-contact ultrasonic, static pressure transmitting device) and so on, also can configure as customers' requirement.

Application
Suitable for cosmetic, medicine, food, chemical, dyeing, printing ink and other industrial production, especially for high matrix viscosity, solid material content higher material preparation emulsion will be more efficacy.

Design Parameter
Design pressure	Tank body (ATM~1.0MPa)
	Jacket (ATM-0.6MPa)
Design temperature	Tank body and Jacket (0ºC~160ºC)
Material
Liner	304, 316L
Jacket	304
Insulation	Rockwool or polyurethane
Legs	304
Connection
In-outlet	Tri-clamp, Flange
Surface Finish
Finish type	Mechanical / electrolytic polishing, sand blasting, pickling
Polishing precision	Inner surface Ra≤0.4um
	Outside surface Ra≤0.6um

Specification

Model		JTRRG-600	JTRRG-1000	JTRRG-2000	JTRRG-3000	JTRRG-4000	JTRRG-5000
Effective volume(L)		600	1000	2000	3000	4000	5000
Tank	Diameter(mm)	Φ900	Φ1100	Φ1300	Φ1600	Φ1700	Φ1800
	Height(mm)	900	1000	1500	1500	1800	1800
Emulsification	Power (KW)	4	7.5	7.5	11	11	15
	RPM(r/min)	4P (Can adjust the design according to the customers usage)
Mixng	Power (KW)	1.1	1.5	2.2	2.2	3	4
	RPM(r/min)	22 (Can adjust the design according to the customers usage

The above-mentioned data is the standard it can customize accordina to customers reauirements
