Nc Surface Grinding Machine
| US$10,000.00-16,000.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
SGA2550AHD/3063/4080/30100/40100AHD
Type
Surface Grinding Machine
Processing Object
Metal, Ceramic, etc
Abrasives
Grinding Wheel
Controlling Mode
Artificial
Automatic Grade
Automatic
Cylindrical Grinder Type
Surface Grinding Machine
Precision
Normal Precision
Certification
CE, RoHS, ISO 9001
Condition
New
Spindle Bearing Brand
NSK P4 Grade
Main Electrical Elements
CE Standard
Auto Downfeed Rate
0.005mm
PLC
Siemens
Model
Sga3063ahd
Cooperated Agent
Knuth Optimum Grizzly Msc
Brand
Hdcnc
Other Name
Weihai Huadong
Transport Package
Wooden Pallet or Wooden Case
Specification
2850*2270*2180mm
Trademark
HDCNC
Origin
China
HS Code
84601910
Production Capacity
60set/Month, 720
Product Description
1.Machine Features2.Details parameters
| SGA series parameters | |||||||
| Specifications | SG2050AH SG2050AHR SG2050AHD | SGA2550AH SGA2550AHR SGA2550AHD | SGA3063AH SGA3063AHR SGA3063AHD | SGA4080AH SGA4080AHR SGA4080AHD | SGA30100AH SGA30100AHR SGA30100AHD | SGA40100AH SGA40100AHR SGA40100AHD | |
| table size(W*L) | mm | 200*460 | 250*500 | 305*635 | 406*813 | 305*1020 | 406*1020 |
| Max.longitudinal travel | mm | 510 | 560 | 765 | 910 | 1130 | 1130 |
| Max. transverse travel | mm | 238 | 275 | 340 | 450 | 340 | 450 |
| Max. distance from spindle center to table | mm | 450 | 580 | ||||
| magnetic chuck size | mm | 200*460 | 250*500 | 300*600 | 400*800 | 300*1000 | 400*1000 |
| Longitudinal feed | m/min | 7~23 | |||||
| worktable transverse movement | |||||||
| Auto feed | mm/min | 0.1-8 | |||||
| rapid speed | mm/min | 990 | |||||
| handwheel feed | mm/div. | 0.02 | |||||
| wheelhead vertical movement | |||||||
| Auto feed | mm/stroke | ------------(AH/AHR) 0.005/0.01/0.02/0.03/0.04/0.05(only for AHD model) | |||||
| rapid speed | mm/min | ----------(AH) 460(only for AHR/AHD model) | |||||
| handwheel feed | mm/div. | 0.005 | |||||
| wheel Speed | Rpm | 2850 | 1450 | ||||
| wheel size | mm | 200*20*31.75 | 350*40*127 | ||||
| Spindle motor | Kw | 1.5 | 2.2 | 5.5 | |||
| hydraulic motor | KW | 0.75 | 2.2 | ||||
| cooling motor | KW | 0.04 | 0.125 | ||||
| total rated power | KW | 3 | 3.7 | 9 | |||
| Max. table load (include chuck) | Kg | 120 | 180 | 270 | 500 | 400 | 600 |
| Gross weight | Kg | 1600 | 1800 | 2600 | 3300 | 3200 | 3800 |
3.Standard accessories
4.Optional accessories you can choose
5.Company honors

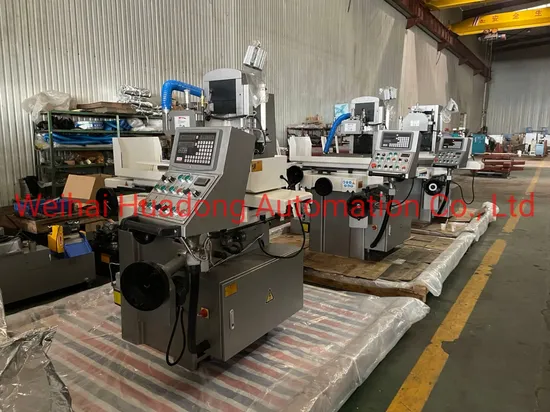

6.Top view of surface grinder workshop
7. Advantages
1.Factory direct sales, product quality and after-sale can be effectively guaranteed
2.Big listed company who has more than 50 years manufacture experience,more than 30years international trade experiences.
3.we have been cooperating with many companies abroad,such as KNUTH ,OPTIMUM in Germany,BERNARDO in Austria,MSC, GRIZZLY in USA and some other companies.The quality of our machines has gotten good reputation from them
8.After-sale services
I. During the warranty period of the machine tool due to design, manufacturing, quality of parts and other reasons caused by the fault, free treatment or replacement of new parts.
II. After the warranty period, lifelong paid maintenance and service will be provided.technical support forever.
III. Provide spare parts and spare parts at preferential prices for a long time.
IV.the warranty is one year after machine out of our company.
9.Exhibitions
