CE Certification Electric Booming Arm 8m Lifting Self-Propelled Vertical Mast Sleeved Platform

CE Certification Electric Booming Arm 8m Lifting Self-Propelled Vertical Mast Sleeved Platform

US$6,500.00-8,000.00 1 Piece (MOQ)

Basic Info.

Model NO.
AMWP3.6-6100; AMWP4.8-6100; AMWP6-6100
Application
Workshop Crane, Shipboard Crane, Warehouse Crane, Building Crane
Lift Mechanism
Scissor Lift
Carrying Capacity
Light Level
Moves
Self-propelled
Driven Type
AC
Running Mode
Moving
Certification
CE, ISO 9001
Lifting Height
6-8m
Max Traveling Speed
17/19.5km
Gradeability
25%
Battery
24V/100ah
Power Type
Electric
Wheelbase
1.04m
Transport Package
Standard Sea Freight Packaging
Specification
3cbm
Trademark
VIFT
Origin
China
HS Code
8427109000
Production Capacity
50000psc/Year

Product Description


Company Profile
VIFT forklift, founded in 2010, is a Shanghai-based leading manufacturer specializing for handing equipment from product design, production, to after-sales services for material handling equipment suppliers worldwide.We offer a wide range of products to fulfil the individual need of every customer from occasional operations to multi-shift applications in warehouse or distribution centers at high frequency level. At VIFT Forklift, we commit to producing the right truck for each application.
Product Parameters

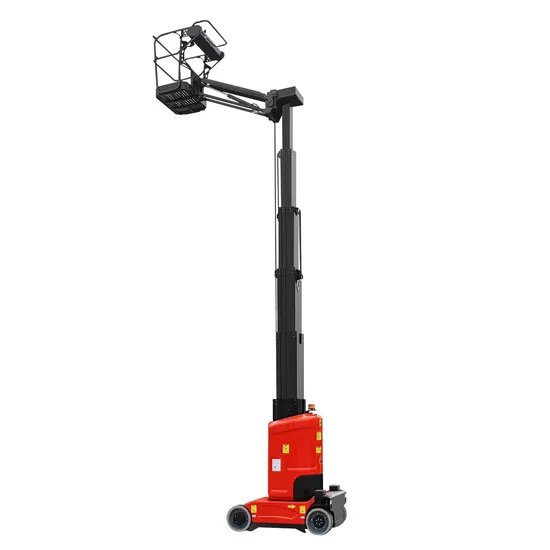

AMWP6100 Self-propelled Vertical Mast Sleeved Platform
Model AMWP3.6-6100 AMWP4.8-6100 AMWP6-6100
Max. Working Height 5.6m 6.8m 8m
Max. Platform Height 3.6m 4.8m 6m
Loading Capacity 227kg 227kg 159kg
Ext. Platform Capacity 114kg 114kg 114kg
Overall Length 1.36m 1.36m 1.36m
Overall Width 0.76m 0.76m 0.81m
Overall Height 1.7m 1.98m 1.98m
Platform Dimension 1.3m×0.7m 1.3m×0.7m 1.3m×0.7m
Ext. Platform Length 0.51m 0.51m 0.51m
Wheelbase 1.04m 1.04m 1.04m
Min. Turning Radius 0.3m 0.3m 0.3m
Outer Turning Radius 1.8m 1.8m 1.8m
Travel Speed(Stowed) 4km/h 4km/h 4km/h
Travel Speed(Raised) 1.1km/h 1.1km/h 1.1km/h
Up/Down Speed 31/32sec 41.5/42sec 52/53sec
Gradeability 25% 25% 25%
Driving Tores Φ305×100mm Φ305×100mm Φ305×100mm
Drive Motors 2×24VDC/0.5kW 2×24VDC/0.5kW 2×24VDC/0.5kW
Lifting Motor 24VDC/1.2kW 24VDC/1.2kW 24VDC/1.2kW
Battery capacity 2×12V/100Ah 2×12V/100Ah 2×12V/100Ah
Charger 24V/15A 24V/15A 24V/15A
Service Weight 810kg 980kg 1060kg

Detailed Photos


Application Scenarios
Certifications
Customer photos
FAQ
Q1: How long is the Warranty for VIFT product?
A1: VIFT provides 12 months or 1000 hours for the whole machine from on board time.
Q2: How about the delivery time?
A2: Usually VIFT producing time is 15- 20 days after we receive the advanced payment. For some standard products, we may have stock and could delivery immediately.
Q3: How about the continuous working time for the electric series forklifts ? And How long time to charge the battery full ?
A3: VIFT battery continuous working time is around 3-6 hours (working time depend on battery volume).It needs usually 8 - 12 hours to charge the battery, VIFT's charger is automatic, after the battery is full, it will stop working automatically.
Q4: Can VIFT provide customized products? OEM products or ODM products?
A4: Yes, VIFT can provide customized products per your request, both OEM and ODM are acceptable. We do a lots of non-standard products, welcome your special reqeust.
Q5: Could we request our own color for the products?
A5: Yes, of course, you just need to offer us the RAL code.
