US$1.00-5,000.00
|
1 Piece
(MOQ)
|
Basic Info.
Applicable Thickness
Thick Material
Thread Number
Single Thread
Needle Number
Single Needle
advabtage
Easy to operate
Max sewing speed
2500s.p.m.
Maximan quilting thickness
20mm
Transport Package
Normal Carton
Production Capacity
1000pieces/Year
Product Description

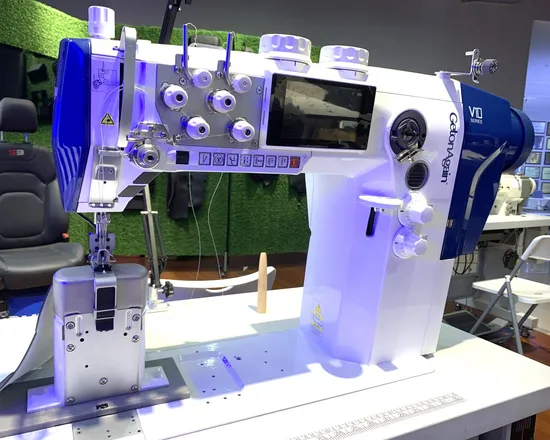

Walking foot leather industrial sewing machine, post bed sewing machine
V10-190613 Single needle, post bed, direct drive, compound feed sewing machine
Model No. | V10-190613 |
Feeding system | Alternating presser foot, feed dog and needle feeding |
Max sewing speed | 2500 s.p.m |
Shuttle diameter | Ф26mm |
Applied needle | DP×17 #18-#23 |
Needle quantity | 1 |
Height of post bed | 172mm |
Thread size | Maximum thread 12 strands nylon |
Max stitch length | 9mm |
Max alternating presser foot | 9mm |
Max presser foot lifting height | 20mm |
Auto trimming | √ |
Auto back tacking | √ |
Presser foot lifting height by air | √ |
Auto oil system | √ |
HP function | √ |
Halving positioning device | X |
Operation space | 351X 297mm |
Multi-grade adjustable LED light | √ |
Electronic handwheel | √ |
LED touchscreen | 5.1 inch |
Function short-cut buttons | 2 |
Function-related can be set | √ |
Double stitch length switch quickly | √ |
Pneumatic compensation thread clamp | √ |
Double stitch length switch quickly | X |
Product Description
1.Post bed single needle right rotary shuttle automatic thread cutting and compound feeding sewing machine.
2.Application example:Single needle decorative topstitch applied in the field of soft furniture and automotive interior.
Product Advantages
LCD touchscreen
LCD touchscreen provides a comfortable human-machinery screen and can be upgraded to 7 inches to enjoy internet function.
Multi-grade adjustable LED light
According to the demand, the operators can adjust the luminance by touching the screen.
IOT function (optional)
(1) The sewing machine with IOT can support the data uploaded and the operation instructions downloaded. Connected with the systems such as MES, APS, and WMS, it can provide the basic production equipment to build intelligent factories for our clients.
(2) It can alarm technicians, management personnel, and QC personnel in real time, and it is an important tool for rapid response in the production process.
Function-related can be set
(1) In the mode of the HP function, It can set electronic control mode, self-locking mode or constant-stitch mode, HP function is related with compensation thread clamp.
(2) Selecting the CP function is related with the presser foot lifting function,when the function of HP is turned on,the CP function will also be started.
(3) According to the habit or demand, flexibly setting function relevance improves automation.
Larger operation space
351*297mm, the larger operation space facilitated the handling of large-area workpieces.
Multi-function button group
Electronic handwheel, back tacking, cancel back tacking, transform instantaneously internal and external presser foot alternating amount, stitch compensation, compensation thread clamp, double stitch length switch quickly, pneumatic halving device and safe threading mode are satisfied with various usage scene.
Safe threading mode
Adjust the needle to the height which is most suitable for threading, and lock all functions of the machine to avoid personnel injury caused by misoperation during threading.
Electronic handwheel
The operator can easily turn the upper shaft(moving the needle rod up and down) using the electronic handwheel instead of manually rotating the handwheel.
The needle gauge can be set
V10 double needle series adopts metric needle gauge groups,6mm, 8mm, 10mm, and 12mm specifications are available.
Typical Field of Application
It's applied in normal sewing for car seat interiors and soft furniture like sofas.
