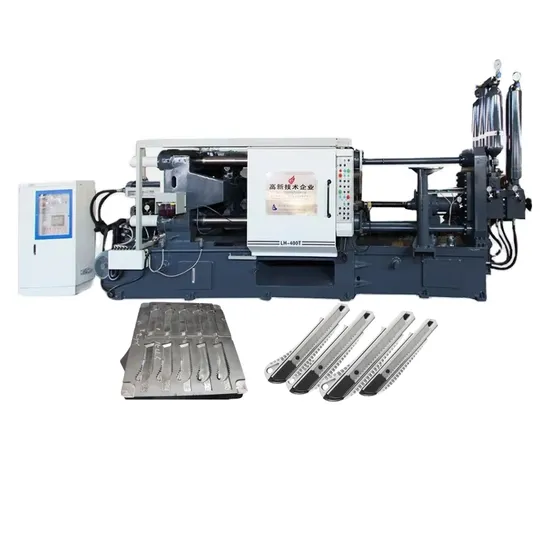

Longhua New Horizontal Aluminum Injection Die Casting Machine Cold Chamber

Longhua New Horizontal Aluminum Injection Die Casting Machine Cold Chamber

US$46,860.00
1 Piece
US$46,360.00
2+ Pieces

Basic Info.

Model NO.
LH-400T
Type
Cold Chamber Die Casting Machine
Structure
Horizontal
Die Casting Machine Type
Cold Chamber Die Casing Machine
Usage
Lights, Cars, Motorcycle and Other Accessories
Control System
Computer PLC Control
Configuration
High Configuration, High Quality
Material
Die Casting Machine Carbon Steel
Features
High Efficiency, Energy Saving, High Yield
Application
All Manufacturers of Non-Ferrous Metal Parts
Place of Origin
Anhui, China
Condition
New
Transport Package
Customized
Specification
6.7*1.9*2.88 m
Trademark
Longhua Die Casting Machine
Origin
China(Mainland)
HS Code
8454301000
Production Capacity
20 Sets Per Month

Packaging & Delivery

Package Size
670.00cm * 190.00cm * 288.00cm
Package Gross Weight
15000.000kg

Product Description

Product Description
Product Parameters

LH series of standard parameter table (LH-400T)
ITEMS Unit Specification
Clamping Force KN 4000
Opening stroke mm 520
Die thickness(Min--Max) mm 250-700
Space between tie bars mm 620*620
Ejector stroke mm 110
Ejector force KN 160
Injection position(0 as center) mm 0,-175
Injection force(intensification) KN 410
Injection stroke mm 480
Plunger diameter mm ¢60 -- ¢80
lnjection weight(aluminum) Kg 4.5
Casting pressure (intensification) MPa 145/106/81
Max. casting area(40Mpa) CM2 875
Injection plunger penetration mm 180
Diameter of pressure chamber flange mm 110
Height of pressure chamber flange mm 10
Max.working pressure MPa 14
Motor power Kw 18.5
Dimensions (L*W*H) m 6.7*1.9*2.88
Machine lifting reference weight T 15
Oil tank capacity L 810

Due to the continuous advancement of technology, parameters are subject to change without further notice. Packaging & Shipping
Wooden Pallets , Container and Other Customized Pakage
Company Profile
Longhua Die Casting Machine was founded in 1982. It is a national high-tech enterprise specializing in the design, R&D, manufacturing, and sales of horizontal cold chamber J11 series die-casting machines, die-casting robots, die-casting molds,
and die-casting peripheral equipment. Since 2006, we have established a production base for high-speed and high-precision AI die-casting machines and die-casting robots at the Longhua headquarters in cooperation with "Anhui Institute of Science and Technology", "Hefei Institute of Materials Science, Chinese Academy of Sciences" and other large institutes. Longhua's die-casting machine and die-casting robot projects have successively won the State Intellectual Property Office: "15 invention patents", "two national high-tech product certificates", "one new product certificate in Anhui Province", "the first set of major technologies in Anhui Province" One equipment certificate, "Enterprise Intellectual Property Standard Implementation Certificate", "Vice President Unit of Anhui Chamber of Commerce for Import and Export", "Vice President Unit of Anhui Cross-Border E-Commerce Association", "1 Science and Technology Small and Medium Enterprise Certificate" , "2 EU CE certification certificates" and other honors. Longhua die-casting machines are mainly used in industry/ road/ railway/ aviation/ aerospace/ agricultural machinery/ new energy vehicles/ cars/ aircrafts/ aircraft carriers/ ships/ motorcycles/ mopeds/ elevator pedals/ AT/ LED lamp housings/ radiators/ furniture / Aluminum art/ Copper art/ Magnesium alloy products/ Copper alloy products/ Aluminum alloy products/ Zinc alloy products/ Non-ferrous metal deep processing and other high-precision die-casting products. Certifications
FAQ
1. Who are we?
Bengbu Longhua Die Casting Machine Co., Ltd is based in Bengbu city, Anhui Province, China. Started export business from 2014,
sold to Domestic Market(50.00%),Southeast Asia(15.00%),South Asia(12.00%),South America(8.00%),Eastern Asia(8.00%),Africa(5.00%),
Mid East(2.00%).
2. What can you buy from us?
* Die Casting Machine
* Robot For Die Casting Machine
* Die Casting Machine Parts,
* Molds And Castings
* Melting Furnace
3. Why should you choose LongHua?
* Longhua Die Casting Machine has 42 years of production experience, provide stable quality and matured products.
* Cooperate with the Chinese Academy of Science and Technology, enable high quality and always innovation.
* Always a pre-production sample before mass production; Always final Inspection before shipment.
4. What terms can we provide?
* Accepted Delivery Terms: FOB;
* Accepted Payment Currency: USD, EUR, CNY;
* Accepted Payment Type: T/T,L/C, Cash;
* Language Spoken:English,Chinese
5. What after-sale services can be provided?
* Professional engineers to enable customers independently operate, use and maintain Anhui Longhua products;
* To answer technical questions in a timely manner, can send people to the user site for assistance in time;
* Provide technical guidance when users need new equipment or expansion (reconstruction) construction;
* After products are upgraded, priority should be given to the replacement of the previous users as required.
Welcome friends all over the world visit our company and factory in
Bengbu City, Anhui Province, China :))
