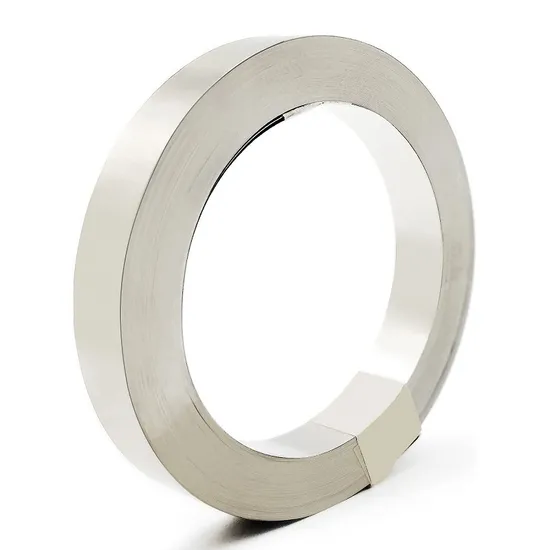

Grade 16 Ti-0.05pd Titanium Commercially Pure Coil Strip Foil
| US$15.00-30.00 | 1 kg (MOQ) |
Basic Info.
Model NO.
Grade 16
Technique
Hot Rolled
Grade
All Grade
Shape
Round
Classification 1
Commercially Pure
Classification 2
Alpha and Near-Alpha Alloys
Classification 3
Alpha-Beta Alloys
Classification 4
Near-Beta and Beta Alloys
Transport Package
Wooden Case
Specification
3-230mm
Trademark
FUSHUN
Origin
China
Product Description
Product DescriptionPure Titanium And Titanium Alloy Sheet, Strip, Bar, Tube, Extrusion
We offers a complete range of titanium and titanium alloy mill products in sheet, strip, plate, billet, bar, rod, extrusions and tubulars. We also offer metal processing services including hot-forming (e.g super plastic forming), extrusion,seamless pipe production, water jet and saw cutting, and machining.
| Sizes: Sheets & Plate | GRADE | SPECIFICATIONS |
| 6AL-4V, 6AL-4VELI | AMS-4911, 4907, 4905, MIL-T-9045 | |
| 0.012" TO 4.00" x R/W x R/L | ASTM-F136, DMS-1592, GM3103, 12TM-B265 | |
| 6AL-2SN-4ZR-2MO | AMS-4919, MIL-T-9046, DMS-2275, AMS-T-9046, | |
| Sizes: Coil | GM-3104, B50TF21 | |
| 6AL-6V-2SN | AMS-4918, MIL-T-9046, DMS-1879, AMS-T-9046 | |
| 0.001" TO 0.011 x R/W x R/L | 5AL-2.55N, | AMS-4909, 4910, MIL-T-9046, AMS-T-9046 |
| 5-2.5 ELI | ||
| BAL-1MO-1V | AMS-4915, 4916, DMS-1784 | |
| CP-GRADES 1,2,3,4 | AMS-4900, 4902, MIL-T-9046, AMS-T-9046, DMS-1536, ASTM-B265 | |
| 15V-3CR-3SN-3AL | AMS-4914 |
| ROD, BAR & FORGINGS Full Range Of Sizes In All Grades | GRADE | SPECIFICATIONS |
| 6AL-4V, 6AL-4VELI | AMS-4928, 4930,4965, 4967, MIL-T-9047, AMS-T-9047, ASTM-F-367 | |
| 6AL-2SN-4ZR-2MO | AMS-4975, MIL-T-9047, AMS-T-9047 | |
| 6AL-6V-2SN | AMS-4978, MIL-T-9047, AMS-T-9047 | |
| 5AL-2.55N | AMS-4926, 4966, MIL-T-9047, AMS-T-9047, B50TF22 | |
| 8AL-IMO-IV | AMS-4972, 4973, MIL-T-9047, AMS-T-9047 | |
| CP-GRADES 1,2,3,4,7 | AMS-4921, MIL-9047, ASTM-B-348, ASTM-F-67 | |
| TUBING Full Range Of Sizes In All Grades | GRADE | SPECIFICATIONS |
| CP-GRADES 2,3,4 | AMS-4941, 4942, BMS-7-21, DMS-1872, 1874, 1898 | |
| 3AL-2.5V | AMS-4943, 4944, 4945, DMS-2241, B50TF35, PWA-1260 | |
| EXTRUSIONS Full Range Of Sizes In All Grades | GRADE | SPECIFICATIONS |
| 6AL-4V | AMS-4934, 4935, MIL-T-81556 | |
| 6AL-6V-2SN | AMS-4937, MIL-T-81556 | |
| 8AL-IV-IMO | AMS-4933 |
| GRADE | BRITISH | FRANCE | GERMAN |
| STANDARD | AEROSPACE | ||
| Gr. 1 | BS 2TA 1 | T-35 | 3.7024 |
| Gr. 2 | BS 2TA 2 | T-40 | 3.7034 |
| Gr. 3 | DTD5023 | T-50 | 3.7054 |
| Gr. 4 | BS 2TA 6 | T-60 | 3.7064 |
| ALPHA AND NEAR-ALPHA ALLOYS | ||
| Ti-0.3Mo-0.8Ni(Grade 12) [Ti-12] | Highly weldable and fabricable Ti alloy offering improved strength and pressure code design allowables,hot brine crevice corrosion,and reducing acid resistance compared to Ti Grades 1,2,and 3.Approved for sour service use under the NACE MR-01-75 Standard | Ingot/Bloom,Billet Welded Pipe,Plate,Strip Welded Tubing Seamless Pipe,Wire* |
| Ti-3Al-2.5V (Grade 9) [Ti-3-2.5] | Medium strength,non-ageable Ti alloy offering highest strength and design allowables under the pressure vessel code,with good weldability and cold fabricability for mildly reducing to mildly oxidizing media | Ingot/Bloom,Billet Welded Pipe,Plate,Strip Welded Tubing,Foil* Seamless Tubing*,Wire' |
| Ti-3Al-2.5V-Pd(Grade 18) [Ti-3-2.5-Pd] | Pd-enhanced version of Ti-3Al-2.5V with equivalent physical and mechanical properties and fabricability,offering elevated resistance to dilute reducing acids and crevice corrosion in hot halide (brine)media | Ingot/Bloom,Billet,Welded Pipe,Plate,Strip,Welded lubing,Seamless Pipe |
| Ti-3Al-2.5V-Ru(Grade 28) [Ti-3-2.5-Ru] | Ru-enhanced version of Ti-3Al-2.5V with equivalent physical and mechanical properties and fabricability,offering elevated resistance to dilute reducing acids and crevice corrosion in hot halide (brine)media.Approved for sour service use under the NACE MR-01-75 Standard | Ingot/Bloom,Billet,Welded Pipe,Plate,Strip,Welded Tubing,Seamless Pipe Wire* |
| Ti-5Al-2.5Sn (Grade 6) [Ti-5-2.5] | Weldable,non-ageable,high-strength alloy offering good high temperature stability,strength,oxidation and creep resistance. | Ingot/Bloom Bar*,Billet,Sheet |
| Ti-5Al-2.5Sn ELI [Ti-5-2.5 ELI] | Extra low interstitial version of Ti-5Al-2.5Sn exhibiting an excellent combination of toughness and strength at cryogenic temperatures;suited for cryogenic vessels for service as low as -255°C | Ingot/Bloom,Bar*,Billet |
| Ti-8Al-1Mo-1V [Ti-8-1-1] | Highly creep-resistant,non-ageable,weldable,high-strength Ti alloy for use up to 455°C;exhibiting the lowest density and highest modulus of all commercial Ti alloys | Ingot/Bloom Bar*,Billet,Sheet |
| Ti-6Al-2Sn-4Zr-2Mo-0.1Si [Ti-6-2-4-2-S] | Weldable,high strength Ti alloy offering excellent strength,stability,and creep resistance to temperatures as high as 550ºC | Ingot/Bloom Bar*,Billet,Sheet |
| ALPHA-BETA ALLOYS | ||
| Ti-6Al-4V (Grade 5) [Ti-6-4] | Heat treatable,high-strength,most commercially available Ti alloy ("workhorse" alloy for aerospace applications),for use up to 400°C offering an excellent combination of high strength,toughness,and ductility along with good weldability and fabricability | Ingot/Bloom Bar*,Billet,Plate,Sheet Seamless Pipe,Wire* Seamless Tubing*,Foil* |
| Ti-6Al-4V ELI (Grade 23) [Ti-6-4 ELI] | Extra low interstitial version of Ti-6Al-4V offering improved ductility and fracture toughness in air and saltwater environments,along with excellent toughness, strength,and ductility in cryogenic service as low as -255°C.Typically used in a non-aged condition for maximum toughness. | Ingot/Bloom,Bar*,Billet Plate,Sheet,Wire* Seamless Tubing*,Foil* |
| Ti-6Al-4V-0.1Ru (Grade 29) [Ti-6-4-Ru] | Extra low interstitial,Ru-containing version of Ti-6Al-4V offering improved fracture toughness in air,seawater,and brines,along with resistance to localized corrosion in sweet and sour acidic brines as high as 330°C.Approved for sour service use under the NACE MR-01-75 Standard | Ingot/Bloom,Bar*,Billet Plate,Sheet,Seamless Pipe,Wire* |
| Ti-6Al-7Nb | High strength Ti alloy with good toughness and ductility,used primarily for medical implants stemming from its excellent biocompatibility | Ingot/Bloom Bar*,Billet,Wire* |
| Ti-6Al-6V-2Sn [Ti-6-6-2] | Heat-treatable,high-strength Ti alloy with higher strength and section hardenability than Ti-6Al-4V,but with lower toughness and ductility,and limited weldability.Can be used in mill annealed or in the aged (very high strength)condition. | Ingot/Bloom,Bar*,Billet Plate.Sheet |
| Ti-6Al-2Sn-4Zr-6Mo [Ti-6-2-4-6] | Heat-treatable,deep-hardenable,very high strength Ti alloy with improved strength to temperatures as high as 450°C,with limited weldability.Approved for sour service under the NACE MR-01-75 Standard. | Ingot/Bloom,Bar*,Billet |
| Ti-4Al-4Mo-2Sn-0.5Si [Ti-550] | Heat-treatable,high strength forging alloy with good strength and creep resistance to temperature as high as 400°C. | Ingot/Bloom,Bar*,Billet |
| Ti-6Al-2Sn-2Zr-2Mo-2Cr-0.15S [Ti-6-22-22] | Heat-treatable,high strength Ti alloy with strength and fracture toughness- to-strength properties superior to those of Ti-6Al-4V,with excellent superplastic formability and thermal stability. | Ingot/Bloom,Bar*,Billet Plate,Sheet,Wire* |
| Ti-4.5Al-3V-2Mo-2Fe [SP-700] | Heat-treatable,high strength Ti alloy with superior strength and exceptional hot and superplastic formability compared to Ti-6Al-4V,combined with good ductility and fatigue resistance | Ingot/Bloom,Bar*,Billet Plate.Sheet |
| Ti-5Al-4Cr-4Mo-2Sn-2Zr [Ti-17] | Heat-treatable,deep section hardenable,very high strength Ti alloy with superior strength and creep resistance over Ti-6Al-4V to temperatures as high as 400C,and limited weldability | Ingot/Bloom,Bar*,Billet |
| NEAR-BETA AND BETA ALLOYS | ||
| Ti-10V-2Fe-3Al [Ti-10-2-3] | Heat-treatable,deep hardenable,very high strength Ti alloy possessing superior fatigue and strength/toughness combinations,with exceptional hot-die forgeability,but limited weldability. | Ingot/Bloom,Bar*,Billet |
| Ti-3Al-8V-6Cr-4Zr-4Mo [Ti Beta-C] (Grade 19) | A heat-treatable,deep section hardenable,very high strength Ti alloy possessing good toughness/strength properties,low elastic modulus and elevated resistance to stress and localized corrosion in high temperature sweet and sour brines.Approved for sour service under the NACE MR-01-75 Standard | Ingot/Bloom,Bar*,Billet, Seamless Pipe,Wire* |
| Ti-3Al8V-6Cr-4Zr-4Mo-0.05Pd [Ti Beta-C/Pd] (Grade 20) | A Pd-containing version of the Ti-38644 alloy (Beta-C/Pd)possessing equivalent physical/mechanical properties,but with significantly enhanced resistance to stress and localized corrosion in high temperature brines. | Ingot/Bloom,Bar*,Billet, Seamless Pipe |
| COMMERCIALLY PURE (UNALLOYED)TI GRADES | ||
Ti Grade 1 | Lower strength,softest,unalloyed Ti grade with highest ductility,cold formability, and impact toughness,with excellent resistance to mildly reducing to highly oxidizing media with or without chlorides and high weldability | Ingot/Bloom, Bar*,Billet,Plate,Strip, Welded Tubing, Welded Pipe,Wire* |
Ti Grade 2 | Moderate strength unalloyed Ti with excellent weldability,cold formability, and fabricability;"workhorse"and "garden variety"Ti grade for industrial service with excellent resistance to mildly reducing to highly oxidizing media with or without chlorides.Approved for sour service use under the NACE MR-01-75 Standard. | Ingot/Bloom Bar,Billet,Plate,Strip, Welded Tubing, Welded Pipe,Seamless Tubing*,Wire*,Foil* |
Ti Grade 3 | Slightly stronger version of Gr.2 Ti with similar corrosion resistance with good weldability and reasonable cold formability/ductility | Ingot/Bloom Bar;Billet,Plate,Strip, Welded Tubing, Welded Pipe |
| Ti Grade 4 | Much stronger,high interstitial version of Grades 2 and 3 Ti with reasonable weldability,and reduced ductility and cold-formability | Ingot/Bloom Bar*,Billet,Plate,Strip |
| COMMERCIALLY PURE GRADES MODIFIED WITH Pd OR Ru | ||
| Ti-0.15Pd [Ti-Pd] (Grade 7) | Most resistant Ti alloy to corrosion in reducing acids and localized attack in hot halide media,with physical/mechanical properties equivalent to Gr.2 Ti,and excellent weldability/fabricability | Ingot/Bloom,Bar*,Billet Plate,Strip,Welded Tubing,Welded Pipe,Wire* |
| Ti-0.15Pd (Grade 11) | Most resistant Ti alloy to corrosion in reducing acids and localized attack in hot halide media,with physical,mechanical,formability properties equivalent to Gr.1 Ti(soft grade)and excellent weldability | Ingot/Bloom,Bar*,Billet Plate,Strip,Welded Tubing,Welded Pipe,Wire* |
| Ti-0.05Pd (Grade 16) | Lower cost,leaner Pd version of Ti Gr.7 with equivalent physical/mechanical properties,and similar corrosion resistance Tubing,Welded Pipe | Ingot/Bloom,Bar*,Billet Plate,Strip,Welded Tubing,Welded Pipe,Wire* |
| Ti-0.05Pd (Grade 17) | Lower cost,leaner Pd version of Ti Gr.11 with equivalent physical/mechanical properties and fabricability (soft grade)and similar corrosion resistance. Tubing,Welded Pipe | Ingot/Bloom,Bar*,Billet Plate,Strip,Welded Tubing,Welded Pipe,Wire* |
| Ti-0.1Ru [TiRu-26] (Grade 26) | Lower cost,Ru-containing alternative for Ti Gr.7 with equivalent physical/mechanical properties and fabricability and similar corrosion resistance Tubing,Welded Pipe | Ingot/Bloom,Bar*,Billet Plate,Strip,Welded Tubing,Welded Pipe,Wire* |
| Ti-0.1Ru [TiRu-27] (Grade 27) | Lower cost,Ru-containing alternative for Ti Gr.11 with equivalent physical/mechanical properties (soft grade)and fabricability and similar corrosion resistance. | Ingot/Bloom,Bar*,Billet Plate,Strip,Welded Tubing,Welded Pipe |
| Titanium | Composition Requirements, weight percent | |||||||||
| Grade | C | O | N | H | Fe | Al | V | Pd | Ni | Mo |
| 1 | ≤0.08 | ≤0.18 | ≤0.03 | ≤0.015 | ≤0.20 | - | - | - | - | - |
| 2 | ≤0.08 | ≤0.25 | ≤0.03 | ≤0.015 | ≤0.30 | - | - | - | - | - |
| 3 | ≤0.08 | ≤0.35 | ≤0.05 | ≤0.015 | ≤0.30 | - | - | - | - | - |
| 4 | ≤0.08 | ≤0.40 | ≤0.05 | ≤0.015 | ≤0.50 | - | - | - | - | - |
| 5 | ≤0.08 | ≤0.20 | ≤0.05 | ≤0.015 | ≤0.40 | 5.5~6.75 | 3.5~4.5 | - | - | - |
| 7 | ≤0.08 | ≤0.25 | ≤0.03 | ≤0.015 | ≤0.30 | - | - | 0.12~0.25 | - | - |
| 9 | ≤0.08 | ≤0.15 | ≤0.03 | ≤0.015 | ≤0.25 | 2.5~3.5 | 2.0~3.0 | - | - | - |
| 11 | ≤0.08 | ≤0.18 | ≤0.03 | ≤0.015 | ≤0.20 | - | - | 0.12~0.25 | - | - |
| 12 | ≤0.08 | ≤0.25 | ≤0.03 | ≤0.015 | ≤0.30 | - | - | - | 0.6~0.9 | 0.2~0.4 |
| 16 | ≤0.08 | ≤0.25 | ≤0.03 | ≤0.015 | ≤0.30 | - | - | 0.04~0.08 | - | - |
| 17 | ≤0.08 | ≤0.18 | ≤0.03 | ≤0.015 | ≤0.20 | - | - | 0.04~0.08 | - | - |
| 23 | ≤0.08 | ≤0.13 | ≤0.03 | ≤0.0125 | ≤0.25 | 5.5-6.5 | 3.5~4.5 | - | - | - |
| Titanium | Tensile Strength | Yield Strength | Elongation | Bend Test(Radius of Mandrel) | |
| Grade | ksi [MPa] | 0.2% offset, ksi [MPa] | in 2", % | t<1.8 mm | 1.8 mm≤t<4.75 mm |
| 1 | ≤35 [240] | 20~45 [138~310] | 24 | 1.5T | 2T |
| 2 | ≤50 [345] | 40~65 [275~450] | 20 | 2T | 2.5T |
| 3 | ≤65 [450] | 55~80 [380~550] | 18 | 2T | 2.5T |
| 4 | ≤80 [550] | 70~95 [483~655] | 15 | 2.5T | 3T |
| 5 | ≤130 [895] | ≤120 [828] | 10 | 4.5T | 5T |
| 7 | ≤50 [345] | 40~65 [275~450] | 20 | 2T | 2.5T |
| 9 | ≤90 [620] | ≤70 [483] | 15 | 2.5T | 3T |
| 11 | ≤35 [240] | 20~45 [138~310] | 24 | 1.5T | 2T |
| 12 | ≤70 [483] | ≤50 [345] | 18 | 2T | 2.5T |
| 16 | ≤50 [345] | 40~65 [275~450] | 20 | 2T | 2.5T |
| 17 | ≤ 35[240] | 20~45 [138~310] | 24 | 1.5T | 2T |
| 23 | ≤120 [828] | ≤110 [759] | 10 | 4.5T | 5T |
