Basic Info.
Automatic Grade
Automatic
Size
Max 2 1/2 Inch Hydraulic Hose
Name
Hydraulic Hose Crimper
Accessory
Hydraulic Hose Dies 11 Sets
Application
Crimp Hydraulic Hose, Fitting & Ferrule
Package Size
108cm*90cm*105cm
Transport Package
Wooden Case
Production Capacity
2000/Set
Product Description

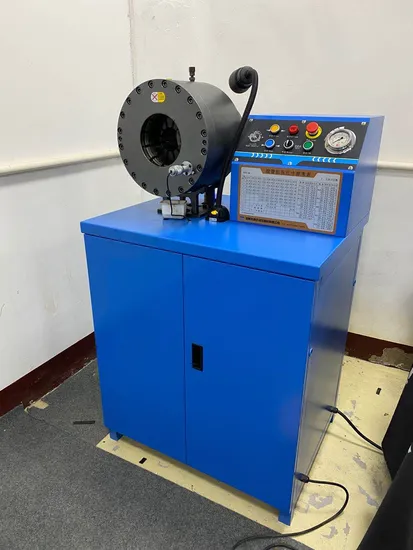

Button type hose crimping machine KM-91L has two function manual and semi-auntomatic. It is a traditional and hot sale hose crimping machine based on high quality and good price.
Button type hose crimping machine KM-91L techincal data:
Crimp range | 4mm-91mm |
For hydraulic hose | 2 1/2inch 4SP |
Max opening without dies | 135mm |
Opening | 28mm |
Force | 760T |
Cycle time | 9s |
Voltage & Power | 380V-50HZ-3PH |
Optional voltage | 220V,440V |
Pump | Piston pump 14.5min/L |
Dies sets | 11sets |
System pressure | 31.5Mpa |
Machine size | 800*630*1376 |
Weight without oil | 245KG |
Shelf+quick change | Optional |
Electric limit switch | has |
Electric control with touch screen | Optional |
Hose crimping machine KM-91L dies
Die No. | Crimp Range(mm) | D(mm) | L(mm) |
6 | 15-25 | 15 | 65 |
8 | 18-28 | 18 | 65 |
10 | 20-30 | 20 | 65 |
13 | 23-33 | 23 | 65 |
16 | 26-36 | 26 | 65 |
19 | 29-39 | 29 | 65 |
25 | 37-47 | 37 | 65 |
32 | 46-56 | 46 | 78 |
38 | 51-61 | 51 | 78 |
51 | 63-73 | 63 | 78 |
64 | 71-81 | 71 | 100 |
Die can be customized according to your needs. |
Hose crimping machine KM-91L Special:
NEW foam inserts introduced to protect your machine from debris dropping into
the bottom of the head. With there you will minimize the risk of debris getting
into the cylinder which could cause damage to seals and other moving parts of
the head. This will significantly extend the life of hydraulic hose crimping machine.
Hose crimping machine KM-91L applition:
1. Suitable for high precision pressing of low and high pressure hose diameter ,starting from 1/4" to 2 1/2" internal hose pipe.
2.Used rubber hose to transmit hydraulic pressure as there working power.
3. used in Building Construction, Petroleum Industry, Chemical Industry, Car and Motor Industry.
