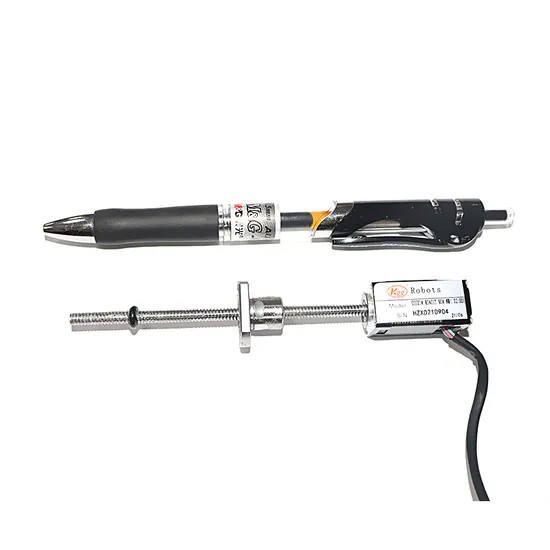

Kgg Large Lead Ballscrew Silent Stepper Motor for CNC Cutting Machines Gssd Series

Kgg Large Lead Ballscrew Silent Stepper Motor for CNC Cutting Machines Gssd Series

Negotiable 1 Piece (MOQ)

Basic Info.

Model NO.
GSSD28-Re0618-PM2
Number of Stator
Two-Phase
Excitation Mode
HB-Hybrid
Function
Control, Driving
Number of Poles
4
Operate Mode
Two-Phase Four-Step
Type
Electromechanical
Certification
ISO9001, CCC
Brand
Kgg
Motor Specifications
28mm
Total Length of Motor
45mm
Rated Electrical Rate
1.6A
Maximum Static Torque
0.052n.M
Dia.
6mm
Lead
18mm
Reference Thrust
35n
Accuracy Grade
CT7
Axial Clearance
Max 0.07mm
Transport Package
PVC Bag, Wooden Box, Full Container Export
Specification
Direct Connection Type of Motor Screw Rod
Trademark
KGG
Origin
Shanghai
Production Capacity
15000

Product Description

FEATURES OF SCREW MOTOR DIRECT CONNECTION
Transmission upgrade, simple structure
A 2-phase stepping motor is directly installed on the shaft end of the ball screw, and the ball screw axis is used as the ideal structure of the motor rotation axis.
Compact and compact
Two-phase stepping motor and rolled ball screw integrated product, through the integration of the motor shaft and the ball screw shaft, no coupling is needed, saving the size of the long side direction.
High precision, high stability, excellent cost performance
The combination of rolling ball screw and 2-phase stepping motor saves the coupling, and the integrated structure reduces the combined accuracy error, and can make the repeated positioning accuracy ± 0.001mm.
Multiple shaft ends can be customized
Provide a variety of shaft end shapes and stroke specifications, and non-standard products can be customized according to customer requirements.
Application: Medical industry,Lithium battery industry,Solar photovoltaic industry,Semi conductor Industry,General industry machinery,Machine tool,Parking system,High-speed rail and aviation transportation equipment,3C industry etc
Rich products, complete specifications
The motor specifications are 20, 28, 35, 42, 57 stepping motors, which can be matched with ball screws and resin sliding screws.
Motor Specification
Motor Frame Size Motor Model Rated Voltage (V) Rated current (A) Winding lmpedance (O) Coefficient of Mutual lnduction (mH) Maximum
Static Torque (N.m)
Motor
Specifications (mm)
20 8E2004 3.52 0.4 8.8 2.8 0.003 20
8E2105 2.55 0.5 5.1 1.5 0.0036 27.2
28 11E2110 2.1 1 2.1 1.5 0.036 33.35
11E2216 2.4 1.6 1.5 1.36 0.052 45
35 14E2110 3.5 1 3.5 3.6 0.06 33.6
14E2215 4.05 1.5 2.7 3.2 0.1 45.6
42 17E2115 2.8 1.5 1.85 2.2 0.18 34.1
17E2225 2.25 2.5 0.9 1.8 0.32 48.1
57 23E2110 6.4 1 6.4 1.65 0.7 45
23E2225 5 2.5 2 5.2 1.5 65
Product Index
Motor
Specifications
Model Total Length of Motor Rated current (A) Maximum
Static Torque (N.m)
Dia. (mm) Lead (mm) Reference Thrust (N)
20 GSSD20-R0401-M1 20 0.4 0.003 4 1 10
GSSD20-R0401-M2 27.2 0.5 0.0035 4 1 15
GSSD20-R0401K-M1 20 0.4 0.003 4 1 10
GSSD20-R0401K-M2 27.2 0.5 0.0035 4 1 15
GSSD20-R0402-M1 20 0.4 0.003 4 2 5
GSSD20-R0402-M2 27.2 0.5 0.0035 4 2 7
28 GSSD28-R0504-M1 33.35 1 0.036 5 4 20
GSSD28-R0504-M2 45 1.6 0.052 5 4 40
GSSD28-R0504G-M1 33.35 1 0.036 5 4 20
GSSD28-R0504G-M2 45 1.6 0.052 5 4 40
GSSD28-R0601-M1 33.35 1 0.036 6 1 110
GSSD28-R0601-M2 45 1.6 0.052 6 1 150
GSSD28-R0601K-M1 33.35 1 0.036 6 1 110
GSSD28-R0601K-M2 45 1.6 0.052 6 1 150
GSSD28-R0602-M1 33.35 1 0.036 6 2 50
GSSD28-R0602-M2 45 1.6 0.052 6 2 12
GSSD28-R0602G-M1 33.35 1 0.036 6 2 50
GSSD28-R0602G-M2 45 1.6 0.052 6 2 150
GSSD28-R0606-M1 33.35 1 0.036 6 6 18
GSSD28-R0606-M2 45 1.6 0.052 6 6 35
GSSD28-R0610-M1 33.35 1 0.036 6 10 10
GSSD28-R0610-M2 45 1.6 0.052 6 10 15
35 GSSD35-R0801-M1 33.6 1 0.06 8 1 175
GSSD35-R0801-M2 45.6 1.5 1 8 1 230
GSSD35-R0801K-M1 33.6 1 0.06 8 1 175
GSSD35-R0801K-M2 45.6 1.5 1 8 1 230
GSSD35-R0802-M1 33.6 1 0.06 8 2 85
GSSD35-R0802-M2 45.6 1.5 1 8 2 160
GSSD35-R0805-M1 33.6 1 0.06 8 5 35
GSSD35-R0805-M2 45.6 1.5 1 8 5 65
GSSD35-R0810-M1 33.6 1 0.06 8 10 15
GSSD35-R0810-M2 45.6 1.5 1 8 10 30
42 GSSD42-R1002-M1 34.1 1.5 0.18 10 2 184
GSSD42-R1002-M2 48.1 2.5 0.32 10 2 306
GSSD42-R1002K-M1 34.1 1.5 0.18 10 2 184
GSSD42-R1002K-M2 48.1 2.5 0.32 10 2 306
GSSD42-R1005-M1 34.1 1.5 0.18 10 5 75
GSSD42-R1005-M2 48.1 2.5 0.32 10 5 15
GSSD42-R1010-M1 34.1 1.5 0.18 10 10 40
GSSD42-R1010-M2 48.1 2.5 0.32 10 10 83
GSSD42-R1015-M1 34.1 1.5 0.18 10 15 27
GSSD42-R1015-M2 48.1 2.5 0.32 10 15 50
GSSD42-R1020-M1 34.1 1.5 0.18 10 20 22
GSSD42-R1020-M2 48.1 2.5 0.32 10 20 41

Technical Drawing
Specification List
FACTORY DETAILED PROCESSING PHOTOS
HIGH QUALITY CONTROL SYSTEM
FAQ
1. Why choose KGG China? Over the past 14 years, KGG has always insisted that "products and services" start from Japanese industry standards,taking Taiwan standards as the bottom line, actively invest in the development of new transmission components and self-experiment and test. With the service tenet of "exceeding customer expectations", establish a "trusted" partnership. 2. What is your main products ? We are a leading manufacturer and distributor of linear motion components in China. Especially miniature size of Ball Screws and Linear Actuators and linear motion guideways. Our brand "KGG" stands for " Know-how," " Great Quality," and " Good value" and our factory is located in the most advanced city in China: Shanghai with the best equipment and sophisticated technology, completely strict quality control system. Our aim is to supply world leader class linear motion components but with most reasonable price in the world.
3. How to Custom-made (OEM/ODM)? If you have a product drawing or a sample, please send to us, and we can custom-made the as your required. We will also provide our professional advices of the products to make the design to be more realized & maximize the performance. 4. When can I get the quotation? We usually quote within 24 hours after we get your inquiry. If you are very urgent to get the price,please call us or tell us in your email so that we will regard your inquiry priority. 5. How can I get a sample to check the quality? After confirmation of our quoted price, you can place the sample order. The sample will be started after you sign back our detailed technical file. 6. What's your payment terms? Our payment terms is 30% deposit,balance 70% before shipment.
