Air Filter Making Paper Folding Knife Blade Pleating Machine for Truck Compressor

Air Filter Making Paper Folding Knife Blade Pleating Machine for Truck Compressor

US$2,000.00-3,000.00 1 Piece (MOQ)

Basic Info.

Model NO.
Sun Hong
Automatic Grade
Full-Automatic
Number of Folded Plates
4
Model
HD-1000-55
Max Width
1020mm
Pleating Height Range
5-55mm
Working Speed
0-125pleats/Min, Adjustable
Voltage
380V-50Hz
Motor Power
1.5kw
Pre-Heating Power
8kw
Range of Temperature
Room Temperature-200degrees
Room Temperature-200degrees
0.6MPa
Machine Weight
750kg
Machine Dimension
1600×1550×1650mm(L*W*H)
Transport Package
Wooden Case
Specification
make to order
Trademark
SUN HONG
Origin
China

Product Description

Full Auto Air Filter Pleating Cutting Assembly Production Line

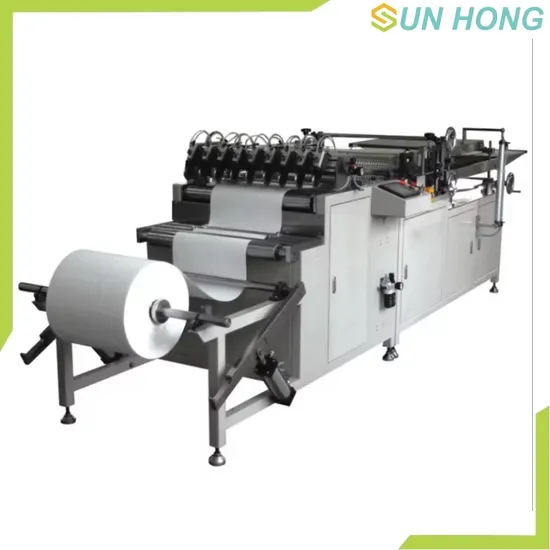

Rotary Pleating Machine
1.Speed: 5-70m/min
2.Pleating height: 15- 75mm
3.Max. Pleating width 600mm
4.Motor power: 1.8kw
5.Weight: 1500kg
6.Size: 4200x1050x1300mm
7.Heating system :4kW
8.Working Pressure:0.5MPa Automatic cutting machine
It is mainly used for cutting after paper pleating.
1.Max. Width:650mm
2.Cutting Speed:5 pcs/min
3.Pleat Quantity:20-50mm
4.Working Witch:0.6MPa
5. Control Way:1) Sensor cut off 2) Foot pedal cut off 3) Button cut off Filter Paper Filling Machine
This machine is used to put the folded filter paper into the outer melt mesh by applying hot melt glue at the beginning and end.
1.Working width 610mm 800mm 1050mm
2.Speed 1- 3 pcs/min
3.Working pressure 0.5Mpa
4.Total power:4.5KW,
The machine is with 5kg hot melt gluing device,easy operation and high efficiency.
