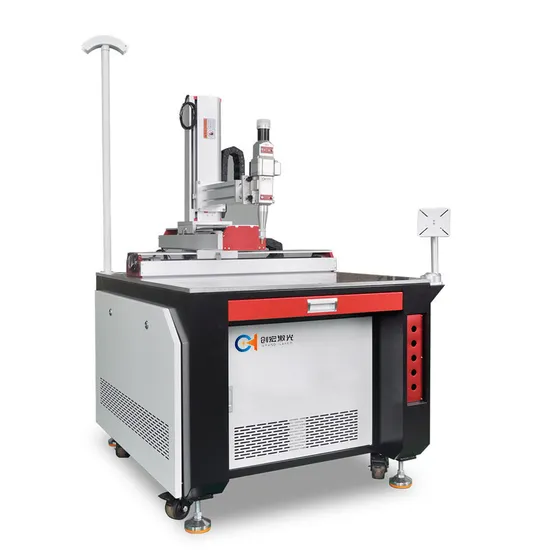

1500W Platform Automatic Fiber Continuous Turn up Down Precision Laser Welding Machine Welder for Bathroom Kitchen Hardware Iron Metal Aluminum Copper
| US$8,920.00-21,700.00 | 1 Set (MOQ) |
Basic Info.
Model NO.
1500W 2000W 3000W
Application
Electronic Industry, Automotive Industry, Manufacturing Industry
Technical Class
Continuous Wave Laser
Control
Automatic
Power Density
Deep Fusion Welding
Laser Classification
Optical Fiber Laser
Type
Automatic Laser Welding Machine
Laser Head Brand
Xinghong
Cooling-Water Machine
Dvt
Laser Device Brand
Max
Switching Power Supply
Meanwell
Control Board Brand
Mosen
Guide Screw Brand
Tbi
Transport Package
Wooden Case
Specification
1100mm*1000mm*1800mm
Trademark
Grand Laser
Origin
China
HS Code
8515809090
Production Capacity
50 Sets Per Month
Packaging & Delivery
Package Size
1100.00cm * 1000.00cm * 1800.00cm
Package Gross Weight
850.000kg
Product Description
| technical specification | CH1500 | CH2000 | CH3000 |
| Maximum laser power | 1500W | 2000W | 3000W |
| Optical maser wavelength | 1080nm±5nm | 1080nm±5nm | 1080nm±5nm |
| Fiber output quantity | Route 1 | Route 1 | Route 1 |
| Depth of field | 0.2mm-1.5mm | 0.2mm-2.5mm | 0.2mm-3.5mm |
| Overall power | 4KW | 5.5KW | 7KW |
| Voltage input | AC220V+10%/3P+PE | AC220V+10%/3P+PE | AC380V+10%/3P+PE |
| Type of cooling | Water cooling | Water cooling | Water cooling |
| Optical fiber type | QBH | QBH | QBH |
| Fiber diameter | 50um | 50um | 50um |
| Number of axles | axes can be customized | axes can be customized | axes can be customized |
Equipment description:
Using Mosen's latest control system, it is more stable, easier and more open to software operation, and can realize arbitrary trajectory programming of points, circles, straight lines, elliptic arcs, squares and other planes.
Fully enclosed module with shock-proof design, equipped with high-precision guide screw, positioning accuracy 0.02mm, with servo motor responsive, automatic movement for welding.
Customized multi-axis platform, to achieve 3D space arbitrary welding trajectory requirements, high customization.
High production efficiency, fast welding speed, automatic mass production can be achieved.
Hd CCD display, monitoring the welding process to ensure welding quality, intelligent software interface, easy parameter adjustment, save properly one-click start.
The use of electronic hand wheel to achieve manual point function, adjust any axis direction, convenient and accurate.
The table surface of the whole machine is made of thick aluminum plate, and multiple positioning holes on the top help to locate.
Details:
Sample picture:
