Hot Sale Aluminum Window Curtain Wall Machine Aluminum Panel Vertical Band Saw

Product Description

Hot Sale Aluminum Window Curtain Wall Machine Aluminum Panel Vertical Band Saw
Product Description
Machine feature:
-Milling cutters can work in horizontal and vertical way.
-The interval subsection orientation device and the lock device are set in the lengthways frame.
-The multi-points orientation device and the lock device are set in the lengthways frame.
-Used for milling processing of the profile bending parts of aluminum curtain wall.
-Processing range(L×W):4000×1600mm.
-The slot depth can be adjusted for the special designed cutters.
Parameter:

Model			CLMX-1600
Power Supply			380V/50HZ
Cutting motor Power			2.2kW
Motor roraty speed			28000r/min
Cutting width			max. 4000mm
Cutting height			max. 1600mm
Milling cutter size			250mm
Blower fan power			1.5kW
Overall dimension			5000x2120x2300mm
Weight			800Kg

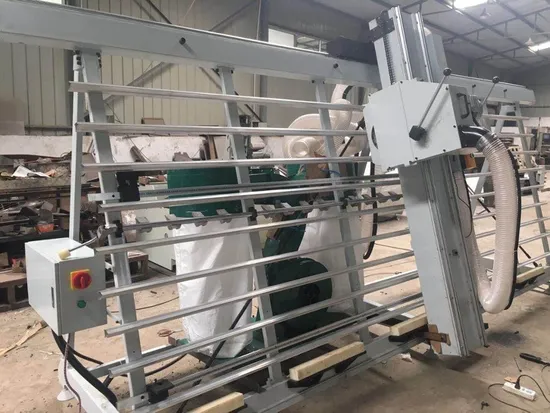

Machine details:
Certifications
Company Profile
Jinan Truepro is a manufacturer of window machine, insulating glass processing machine
and curtain wall machine with well-equipped testing equipment and strong technical force.
Our factory have more than 16 years possesses R&D experience.Top 3 in Jinan, the largest area for window machines in China. We manufacture from raw material to final machine to control each machine quality.We believe that "IT'S THE BEST THAT FITS MOST."Every machine could be customized to meet your special requirement.We are KA store in ****** plateform,and SGS verified supplier, trade assurance to protect
your money in safe and deliver machine on time.
Packaging & Shipping
Our Advantages
FAQ
1. When can we arrange shippment?We usually arrange shippment within 15 days after getting deopsit,but customized machines
should be more than 25 days.2.What you can do if my machines have problems?1) We can send you free components to you if your machines are in guarantee time.2) We can send our engineers to repair your machines3.Do you provide equipment operation training?A: Yes. We can send professional engineers to the working site for equipment installation,
adjustment, and operation training. All of our engineers have passport.4. If I make Aluminum window and door, how many basic machines do i need?
1).double head cutting saw
2).Lock hole copy milling machine
3).End milling machine
4).Automatic Corner connector automatic cutting saw
5).Single head Corner combining machine
