2025 Bcmc Marble Gangsaw for Big Slab Multi Blades Block Cutting Machine 80/100PCS Bandsaw for Tile Cutting Slab Slicing Machine Granite Stone Machinery
| US$110,000.00-120,000.00 | 1 Set (MOQ) |
Basic Info.
Model NO.
BCKJ-100/S800
Type
Granite
Usage
Cement Brick, Concrete Curb, Granite, Marble
Application
Machinery & Hardware, Construction, Stone Industry
Source Voltage
380V
Automation
Automatic
Cutting Ability
High Speed
Control
CNC
Certification
CE
Overall Weight
62000 Kg
Min. Slab Cutting Thickness
16 mm
Number of Blade
100
Transport Package
Plastic Packing
Specification
11900*5560*4960 mm
Trademark
BCMC
Origin
Putian, Fujian, China
HS Code
8464109000
Production Capacity
50 Pieces/Month
Product Description

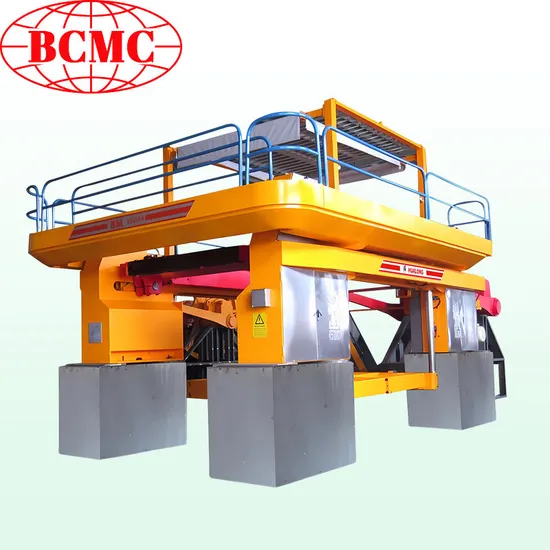

BCKJ-100/S800 series is a kind of block cutting machine. With solid square structure, the cutter moves horizontal repeatedly to cut the block into slabs. The cutter saw is a kind of steel blade which installed firmly on the moving frame. Better in cutting the granite.Main Features: Adopt steel saw blade as cutter, moving fluently in a fixed speed for stone cutting. Man-machine interactive control interface. Easy operation and real time working statement monitor. Promptly alarm mention and problem solving. Lifting table feeding way. Frequency conversion drive. Double crank and double connecting rod structure. Powerful driving motor. Less shake, stabler working statement. Screw rod adopts for machine working impact protect. Less running resistance, energy and power saving. Highly cutting precise. Straight, good quality and high yield.
| Plant No. | BCKJ-100/S800 | |
| Overall Dimensions (L x W x H)(mm) | mm | 11900*5560*4960 |
| Overall weight (kg)/Gross weight(kg) | kg | 62000 |
| Block trolley size | mm | 3200*2550 |
| Max. block cutting thickness | mm | 3200*2500*2000 |
| Min. slab cutting thickness | mm | 16 |
| Number of blade | pc | 100 |
| Blade length | mm | 4400 |
| Working stroke of blade | mm | 800 |
| Power of main motor | kw | 132 |
| Water consumption | L/min | 10L/min per blade |
Application:
* Stone cutting
* Granite cutting
* Block dividing
