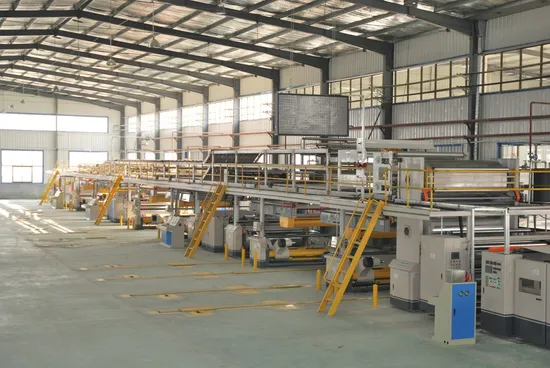

Fully Automatic 3/5/7 Ply Corrugated Paper Production Line/Packaging Machinery

Product Description

type:WJ150-1800-ii type five layer corrugated paperboard production line:

1	Effective width		1800mm	2		Design produce speed	150m/min
3	Three layer work speed		100-140m/min	4		Five layer work speed	90-130m/min
5	Seven layer work speed		-------------------	6		The highest change single speed	100m/min
7	Longitudinal separation accuracy		±1mm	8		Cross-cutting precision	±1mm
note	Speed the above targets required to achieve:effective width1800mm,Comply with the following standards and ensure the paper's equipment condition 175 ºC heating surface temperature.
	Top paper index	100g/m2--180g/m2 Ring crush index(N.m/g)≥8 (Water containing8-10%)
	Core paper index	80g/m2--160g/m2Ring crush index(N.m/g)≥5.5 (Water containing8-10%)
	In paper index	90g/m2--160g/m2 Ring crush index(N.m/g)≥6 (Water containing8-10%)
9	Flute combination
10	Steam requirement	The maximum pressure 16kg/cm2			Common pressure10-12kg/cm2			use4000kg/Hr
11	Electricity demand	AC380V 50Hz 3PH			Total power≈220KW			Running Power≈150KW
12	Compressed air	The maximum pressure 9kg/cm2			Common pressure4-8kg/cm2			use1m3/min
13	space	≈Lmin70m*Wmin10m*Hmin5m(The actual drawing to provider to provide audited prevail)

Customer-owned section

1, steam heating system:proposal with 4000Kg / Hr of a steam boiler pressure:1.25Mpa steam pipeline.

2, air compressed machine,air pipeline,glue conveying pipe.

3, power supply,wires connected to the operation panel and line pipe.

4, water sources,water pipelines,buckets and so on.

5, Water, electricity, gas flush mounting civil foundation.

6, Test with the base paper,corn starch (potato),Industrial use caustic soda,borax and other material.

7, Oil equipment,lubricating oil,hydraulic oil,lubricating grease.

8, installation,commissioning of food, accommodation.And provide installers with the installation.

fingerless type single facer
structural feature:
★adopt hood suction structure,matched high pressure powerful fan. Gas supply and electrical control cabinet to focus on the same operation, the operating side full cover closed.
★High quality resin sand casting,wall thickness 200mm.Adopt independent gear box, Universal joint transmission structure.
★install the lifting trolley on the conveyor bridge,Need to use the car will tile roll assembly and pressure roller, such as convenient and quick.
★Glue roller unit structure with the overall relocation,Maintenance can sway the machine at the overall maintenance,improve the working efficiency.
★The humidity control apparatus equipped with a spray, so flute type to maintain good stability of deformation, avoid dry.
★Automatic circulation system for glue, two-cylinder pneumatic gluing device, with good cushioning effect.
★Glue department using integrated slide structure,Glue roller surface after grinding engraved with 25 lines and pit-style textured hard chrome plating.
★corrugated roller adopt tungsten carbide dealing,diameter of the main corrugated roller¢ 320mm,Quenched→rough car→bore fine boring→shaft head shrunk-on→welding → tempering to stress→fine cars→coarse grinding→IF quenching→CNC grinding machine grinding→Hard chrome plating,hardness of surface is HRC58degrees.
★Active force variable frequency motor drive, energy efficient, low failure rate.
★Glue wide electric adjust to changes in the width of the paper used.
★Amount of glue size with electric adjustment, touch screen display and operation of the encoder transmission coating gap, high accuracy.
★Power and operating parts with a safety net to ensure the safety of personnel in the operation of machinery.

double facer
Structural features:
★Heating plate surface by grinding treatment,hot plate width600mm,a total of 16 pieces heating plate,Cooling stereotypes Department 4 m.
Preheat board is made of contacts board, in accordance with the national standard of pressure container, enclosed the pressure container certificate and inspection certificate.
★Hot plate using the touch plate design structure. Plate movements using pneumatic spring-type structure.
★On both sides about conveyor belt deviation adjustment adopts automatic adjustment,2 sets of the conveyor belt tensioning system,one set is manual(fine tuning),the other is pneumatic adjustment(high speed).
★Thermal pipe heating plate temperature control points seven sections with temperature display.
★up cotton belt with double cylinder S cotton belt tensioning device.
★bottom cotton belt with s-shaped correction manually tensioning mechanism, structure simple and practical,under with manual fine-tuning.
★Drive roller coated with attached wear-resistant rubber ,showed a herringbone structure,With a high, ensure smooth cardboard output.
★Main drive motor for frequency conversion motor,low-speed torque,wide speed range ,reliable, and easy maintenance.
★hot plate internal for partition isolation structure,s-shaped flow of steam,Steam, water separation function significantly improves the utilization of steam.
