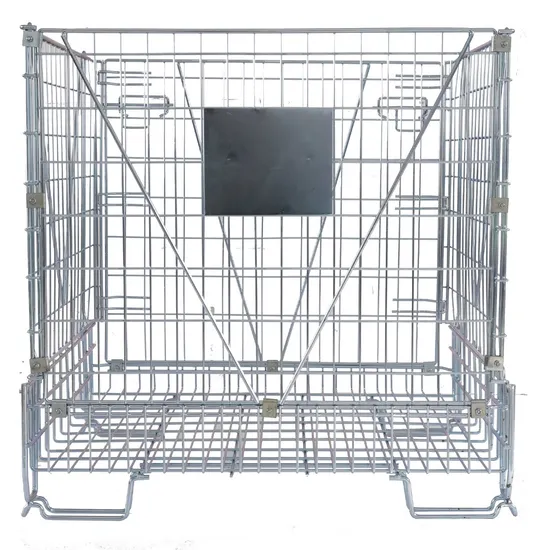

Good Quality Galvanized Double Storage Pallet Cage for Pet Preforms Storage
Basic Info.
Type
Foldable Storage Cage
Size
1000mm*800mm
Load Capacity
1000kg
Folded
Folded
Mesh Spacing
50mm×50mm
Wire Diameter
5.5
Feet Height
100mm
Scale
Heavy Duty
Wire diameter
5.8
Welding
Full Welding
Load in 40 Hq
470PCS
Finish
Zinc/Hot DIP Galvanized/Powder Coating
Application
Industrial, Warehouse, Logistics
Function
Foldable, Collapsible, Stackable
Remark
Customized and OEM Support
Color
Yellow, White or Customized
Sample
Offered
Available Accessories
Top Lid, Divider, Runner Bar, Forklift Guide and C
Transport Package
Plastic Banding+Stretch Film Wrapped, Easy Loading
Specification
1030X840X850 L*W*H mm
Trademark
Jiamu
Origin
China Dalian
HS Code
73262090
Production Capacity
12000 Sets / Month
Product Description
| MODEL | Exterior dimension (mm) | Wire Diameter | Dimension of Grid | Loading Capacity | Weight | Quantity/40HQ | ||
| L | W | H | mm | mm | kg | kg | pcs | |
| JM-EU001 | 1140 | 830 | 980 | ¢12-¢5.0 | 55*113 | 800 | 53.0 | 332/40HQ |
| JM-EU005 | 1200 | 920 | 1018 | ¢12-¢5.0 | 51*118 | 800 | 58.0 | 228/40HQ |
| JM-EU008 | 1220 | 940 | 1025 | ¢12-¢5.0 | 55*102 | 800 | 73.0 | 210/40HQ |
| JM-EU010 | 1200 | 925 | 1000 | ¢11-¢5.0 | 62*115/60*120 | 800 | 50.0 | 253/40HQ |
| JM-EU017 | 1200 | 1000 | 1000 | ¢10-¢5.0 | 65*120 | 500 | 50.5 | 276/40HQ |
| JM-EU018 | 1200 | 800 | 1000 | ¢12-¢5.0 | 65*120 | 500 | 47.0 | 276/40HQ |
| JM-EU021 | 1168 | 850 | 988 | ¢8-¢5.8 | 50*110 | 400 | 46.5 | 340 |
| JM-EU022 | 1200 | 1000 | 1200 | ¢4.8-¢12 | 62*125 | 30 | 69.0 | 168/40HQ |
| JM-EU028 | 1200 | 1010 | 1200 | ¢5-¢12 | 62*125 | 800 | 73.5 | 168/40HQ |
| JM-EU0SP | 1220 | 820 | 1000 | ¢5-¢10 | 65*120 | 800 | 55.0 | 207/40HQ |
| Material | Mild steel Q235 | |||||||
| Finish | Zinc/hot dip galvanized/powder coated | |||||||
| Wine storage | EU001 and EU010 are for "Bourgogne" bottles, can load 500 bottles EU005 is for "Bordeaux" bottles, can load 400 bottles EU016 is for "champagne" bottles, can load 500(horizontal) bottles, 339 (inverted) bottles | |||||||
| Options | Casters, Dividers: Horizontal, Dividers: Vertical, Shelves, Forklift Sleeves, Forklift Strips, Half Drop Gate, Hinged, Lockable Lids, Runner Bars, Card holders | |||||||
| Accessories | Wheels/inner PP sheet or PP hollow sheet/bag | |||||||
| Application area | Warehouse, logistics, and recycling industry | |||||||
| Features | 1.Welded wire mesh structure 3.Stackable, collapsible, folds flat to save space 4.Drop gate for easy access when stacked 5.Easy fork access from all sides 6.Lowest maintenance cost 7.Large range of available sizes and loading capacity available | |||||||
