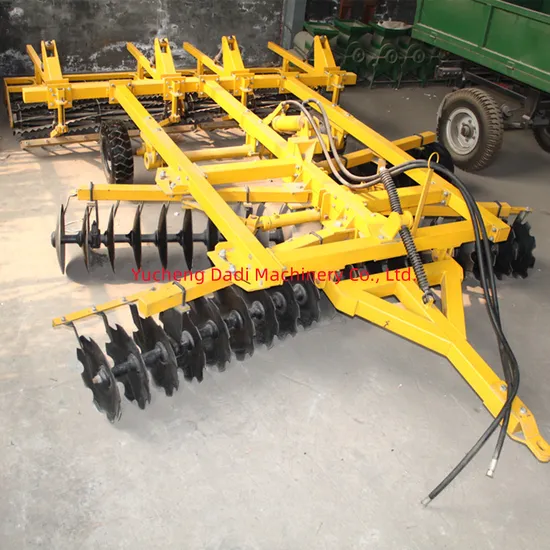

Once-Over Tillage Machine (1LZ series) Disc Harrow
| US$5,000.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
1LZ-3.6/4.2/7.2/9.3
Application Field
Agriculture, Livestock, Aquaculture, Forestry
Farming Policy
Dry Cultivating Machinery
Power Source
Tractor
Operation
Soil Preparation Machinery, Continuous Running Operation
Traction Type
Traction
Drive Type
Disc Harrow
Arbor Configuration
Vertical Shaft
Certification
CE
Color
Yellow
Warranty
One Year Warranty
Price
Best
Colour
Many
Qualityt
Best
Transport Package
Iron Frame
Specification
ISO9001: 2000
Trademark
Dadi
Origin
China Shandong
HS Code
8432290000
Production Capacity
200 Sets/Month
Product Description
Thank you for visiting for our web.Hope the information will be helpful for you. Once-over tillage machineThe Once-over tillage machine can complete the pulverizer , soil transporting, soil mixing, leveling before sowing, repression, and can be directly prepared flat seedbed, they can improve the efficacy, reduce the cost.After stubble ploughing, the organic soil quality contents rise, soil structure improves, the yield improves.
The machine is suitable for growing out robust crop, and the same time you can Obtain greater benefits, All of these can be achieved depends on 1LZ series joint tillage machine, Working width from 3.6m to 7.2m, it can be content with different customer's requirement.
Technical parameters:
| Type | 1LZ-3.6 | 1LZ-4.2 | 1LZ-5.4 | 1LZ-7.2 | ||
| Overall dimensions(mm) | L | 6600 | 6600 | 6600 | 7000 | |
| W | 3800 | 4400 | 5600 | 7500 | ||
| H | 1000 | 1000 | 1000 | 1000 | ||
| Max.Working width (m) | 3.6 | 4.2 | 5.4 | 7.2 | ||
| Working depth(mm) | 80-140 | 80-140 | 80-140 | 80-140 | ||
| No.Of disc(PC) | 42 | 50 | 64 | 84 | ||
| Disc of Type (mm) | 460×3 | 460×3 | 460×3 | 460×3 | ||
| Disc spacing(mm) | 170 | 170 | 170 | 170 | ||
| Weight(KG) | 2350 | 2680 | 3320 | 4360 | ||
| Productivity(Ha/h) | 2.28 | 2.66 | 3.33 | 4.44 | ||
| Linkage | Trailed Trailed | |||||
| Trans.Clearance(mm) | ≥160 ≥160 | |||||
| Matched power(Hp) | ≥65 | ≥80 | ≥100 | ≥120 | ||
