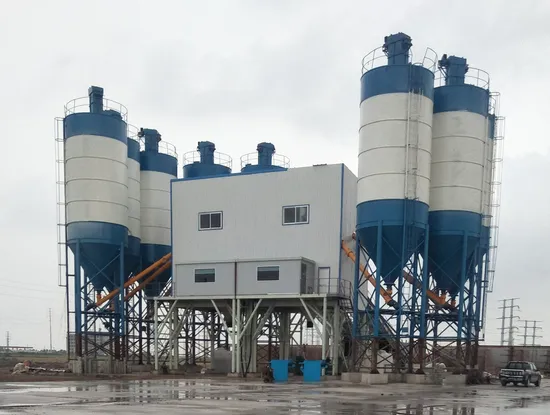

Durable Construction Hzs270 Concrete Batching Plant
Basic Info.
Model NO.
HZS270
Type
Concrete Mixing Plant
Shotcrete Type
Semi-Dry
Machining Process
Welded Molding Machine
Structure
Cylinder Type
Productivity
270m³/H
Feeding Height
1400mm
Vibrating Amplitude
1.2mm
Certification
ISO9001: 2000, CE
Condition
New
Color
According to The Customer′s Requirement
Batching Machine
PLD7200qd-IV
Aggregate Storage Bins Qty
4
Mixer Discharge Height
3.8m
Hopper Capacity
25m³
Overall Quality
80t
Transport Package
Container Delievery
Specification
50.8*20*21.3m
Trademark
FYG
Origin
China
HS Code
8474310000
Production Capacity
10 Units Per Month
Product Description
| Item | Unit | HZS60 | HZS90 | HZS120 | HZS180 | HZS240 | HZS270 | |
| Nominal output/h | m³/h | 60 | 90 | 120 | 180 | 240 | 270 | |
| Mixer charging | m³ | 1 | 1.5 | 2 | 3 | 4 | 4.5 | |
| Batching machine | PLD1600Q-III | PLD2400Q-IV | PLD3200QD-IV | PLD4800QD-IV | PLD6400QD-IV | PLD7200QD-IV | ||
| Aggregate storage bins charging | m³ | 7 | 15 | 15 | 20 | 25 | 25 | |
| Aggregate storage bins qty | pc | 3 | 4 | 4 | 4 | 4 | 4 | |
| Aggregate weighing capacity | kg | 2000 | 3000 | 4*2000 | 4*3000 | 4*4000 | 4*5000 | |
| Cement weighing capacity | kg | 600 | 1000 | 1200 | 1600 | 2200 | 2700 | |
| Fly-ash weighing capacity | kg | / | 300 | 400 | 600 | 800 | 900 | |
| Water weighing capacity | kg | 250 | 400 | 500 | 800 | 1000 | 1200 | |
| Additive weighing capacity | kg | 40 | 40 | 50 | 80 | 100 | 120 | |
| Mixer power | kw | 37 | 2*30 | 2*37 | 2*55 | 2*75 | 2*85 | |
| Belt conveyor power | kw | 15 | 15 | 30 | 45 | 55 | 65 | |
| Total power | kw | 80 | 110 | 150 | 200 | 260 | 260 | |
| Mixer discharge height | m | 3.8 | 3.8 | 3.8 | 4.1 | 4.1 | 4.1 | |
| Total weight | t | 32 | 39 | 60 | 72 | 78 | 90 | |
| Outline dimension(L*W*H) | m | 31.4*15.4*19.4 | 26.6*21*19.4 | 46.7*23*20 | 43.5*21*20 | 43.5*24*20 | 50.8*20*21.3 | |
| Loading | Belt conveyor | |||||||
| Weighing accuracy | Aggregate | % | ±2 | ±2 | ±2 | ±2 | ±2 | ±2 |
| Powder | % | ±1 | ±1 | ±1 | ±1 | ±1 | ±1 | |
| Water | % | ±1 | ±1 | ±1 | ±1 | ±1 | ±1 | |
| Additive | % | ±1 | ±1 | ±1 | ±1 | ±1 | ±1 | |
ParameterFeatures:
Designed for minimum space requirement and large quantities of concrete production performance, durable container modules enable economical transportation,minimum time and operations of erection and disassembling,robust structure reduces the requirement of foundation,leading to economical plant relocations,plant fully enclosed and protected from harsh environment,also low noise and dust emission.
