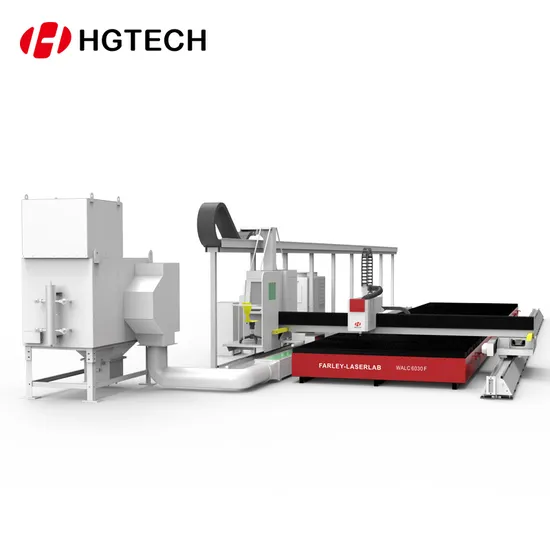

WALC Large Surface Laser Cutting Machine
Product Description
With high efficient cutting for the super-size sheet, the machine is massively used in construction machinery, shipbuilding, raliltransit industry, etc. And based on the market demand of large quantity of medium and thick plate groove, we independently developed the large-area five-axis groove cutting equipment on the high-speed and high-precision Siemens system.
Feature
- Large cross-section beam integral moving structure, double pinion and rack synchronous drive.
- The optimized digital controlsystem for Laser cutting made by Siemens in Germany is equipped with a large worktable, which enhances humanized operation and stable and reliable movement.
- Airborne structure: A variety of core components, such as machine tool electric cabinet,water and gas circuitsystem,Z axle box, cutting head and operating table, are installed on the beam.
- Fixed workbench (customized) : it is convenient for large plates to be loaded and small plates can be processed alongsidethe materials
Product advantage
High precision: Bevel accuracy range is±0.5mm
High capacity: One-step shaping is done by cutting polygonal bevel
High quality: It's noting difficult for bright cut
It is designed in elevated gantry structure and possess the characteristics of stable structure, high rigidity and high speed.Integral welded structure bed: the beam is processed by multiple ageing treatments, and has high dynamic response.
It is equipped with high-precision and high-efficiency structure system in transmission part, which has good rigidity and high precision, ensuring long-term high-precision operation of the equipment.
Independent R&D Fiber laser machine : Strong cutting and high efficiency, special laser cutting control system cooperatively developed with CNC system, which is a high-end high-tech fiber laser bevel cutting machine integrating laser cutting, precision machinery, CNC technology and other advanced technologies .
Product Parameters

Model	WALC6030	WALC9030	WALC2245	WALC1830P(groove cutting)
Laser power	1000-12000W	1000-12000W	1000-12000W	12000W
Focal length	200mm automatic focus
Operating system	WINDOWS7 (Chinese and English)
Operating software	SIEMENS 840D SL
Display	23.6-inch touch display (mouse operation supported)
Machining range vertical cutting	Sheet metal: 2D cutting
Machining range groove cutting	-	-	-	Carbon steel plate: Y/V/K groove circular cutting
Cut carbon steel plate thickness	Vertically cut MAX 40mm			Vertically cut MAX40mm 45°V groove cutting MAX:16mm
Cutting stainless steel plate thickness	Vertically cut MAX40mm			Vertically cut MAX40mm
Thickness of cut aluminum clloy plate	Vertically cut MAX40mm			Vertically cut MAX40mm
Processing surface and working scope
Processing wide	6000×3000mm	9000×3000mm	22000×4500mm	18000mm×3000mm
Route of X-axis	6096mm	9100mm	22100mm	18500mm
Route of Y-axis	3048mm	3048mm	4572mm	3100mm
Route of Z-axis	140mm	140mm	140mm	150mm
Accuracy
X axis positioning accuracy	0.1mm/10m(length≤10m) 0.2mm/length more than 10m
Y axis positioning accuracy	0.05mm
X axis repeat positioning accuracy	0.05mm/10m(length≤10m) 0.1mm/length more than 10m
Y axis repeat positioning accuracy	0.03mm
Resolution	0.001mm

Sample
