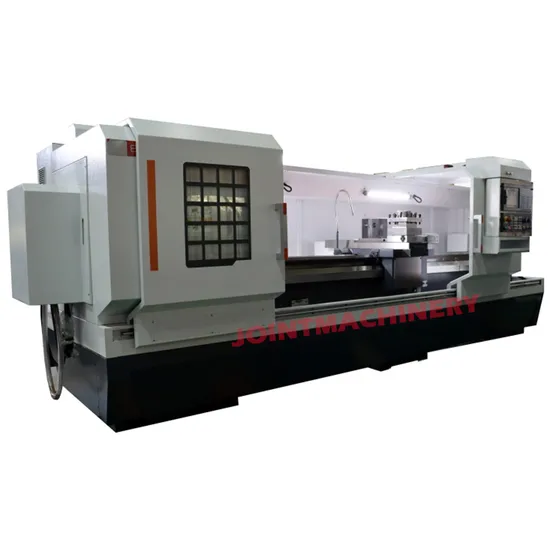

2800mm Turning Length CNC Lathe Machine High Precision CNC Turning Center

Product Description

CNC lathe machine is upgraded version of normal lathe machine in the market. Compared with manual lathe machine, it has characteristics of convenient operation, stable processing quality, high finishing of processed work-piece, full protection, cutting fluid circulation and good environmental performance. This type CNC lathe is suitable for processing the inner and outer surfaces of shaft parts, thread, arc, cone and revolving body.
Spindle High speed, maintenance free independent spindle
Bed Frame Integral casting for bed and foot
Bed Saddle/Slide Widen, thickening, integral casting
Tailstock Lengthened and integrated tailstock
Flat Bed CNC Lathe CK6180

Item		Unit	CK6180
Max swing diameter over bed		mm	800
Center distance		mm	750/1500/3000
Max turning diameter - Disk		mm	800
Max turning diameter - Shaft		mm	520
Max turning length (chuck ro center)		mm	550/1300/2800
Max swing over slide		mm	350
Spindle nose type		type	A2-11
Spindle through hole diameter		mm	Φ104(Option:Φ130)
Spindle	Drive mode	Type	Three speed automatic transmission(variable speed change in gear)
	Low speed	rpm/min	11~112
	Middle speed		321~310
	High speed		125~1250(for Φ130):125-750
	Rated power of main motor	Kw	11
Chuck specifications			Manual Φ325 (Φ100), option: hydraulic chuck
Z axis guide rail span		mm	600
X axis guide rail span		mm	300
Z axis travel		mm	750/1500/3000
X axis travel		mm	420
X/Z rapid speed		m/min	4/8
Tool turret type		type	4 station, option:6/8 station
Tool specifications		mm	32*32(option:40*40)
Tailstock type		type	Manual, option: hydraulic
Tailstock quill diameter		mm	Φ100(Φ160 for Rotating tailstock)
Tailstock quill stock		mm	250
Tailstock quill taper		type	MT-6#
Machining accuracy			IT6
Roughness			Ra≤1.6
Dimensions (L*W*H)		mm	3600/4300/5800*1600*1800
Net weight		T	4.8/5.9/7.3

Standard Configuration:
Optional Configuration:
