2 Cubic Meters Self Loading Concrete Mixer Truck for Sale at Low Price

2 Cubic Meters Self Loading Concrete Mixer Truck for Sale at Low Price

US$9,900.00
1-4 unit
US$8,800.00
5+ unit

Basic Info.

Model NO.
HR2cbm
Condition
New
Mixing Capacity
>=1.8cubic Meter
Warranty
1 Year
Emission
Euro II
Wheelbase
2300mm
Total Weight
7500kg
Engine
Yuchai4102 Supercharged
Power
78kw
Gearbox
280intergral
Drive Axle
2.0twheel Side Deceleration Bridge
Tires
16/70-R 22.5
Bucket Capacity
0.5cubic Meter
Reduction Ratio
1:28
Rotating Speed
>=15 Laps/Minute
Axle Number Traction Type
4*4
Reducer
Made in China
Transport Package
40 Hq Container
Specification
5900*2350*3900mm
Trademark
HIGH RICH
Origin
China Shandong
HS Code
8705400000
Production Capacity
2000 Units/Year

Packaging & Delivery

Package Size
5900.00cm * 2350.00cm * 3900.00cm
Package Gross Weight
7500.000kg

Product Description

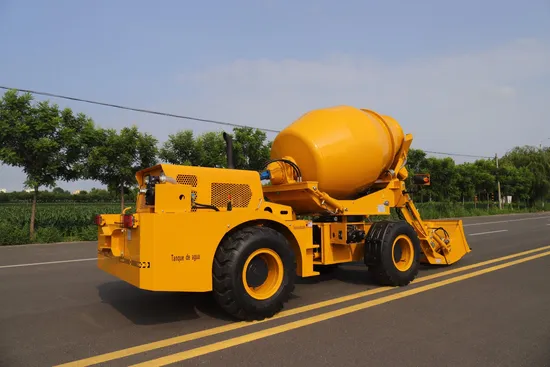

HIGH -RICH 2cbm concrete mixer truck
Loader + Mixing truck + Transport truck = 1 Self loading Concrete Mixer Truck
1.Concrete mixer truck with automatic feed and water supply. The latest technology saves time and effort.
2.The mixer truck with full hydraulic torque converter.
3.Steel wire tyre,Vibrator and camera(Real-time attention Vision blind area).
4.Manganese steel material, quality assurance.
5.Synchronized rotating cab gives the operator a wider driving vision and reduces labor costs. Only two people are required to operate.
6.High-definition driving images in the cab.
7.Low speed driving speed is 10-15km/h, high speed driving speed is 30-40km/h.
8.Free accessories box provided.
The daily concrete output of automated production can reach 200 cubic meters
1:Brake Use a small servo pump on an independent dual circuit to activate, and use a single wheel with 4 pistons to enlarge the double brake calipers. 2:Joystick Two hydraulic pilot levers control the bucket, boom, 270° rotation, and tank lifting. 3:Thickened steel frame Thickened body, sturdy and durable. 4:4*4 vacuum high-pressure tires Pressure resistance is 5 times that of ordinary tires, high safety, extended service life. Product Description
Overall Parameter
Model HR3200L
Dimension (L×W×H) 5900*2350*3900mm
Weight 7500 kg
Performance
Mixing Drum Capacity Drum Capacity 3200L,Concrete Output: 2.0m³ Per Batch
Production Speed Production speed: 7tanks/h
Traveling Speed Low Speed: 0-25km/hour
Drum Rotation Horizontal rotation 270°
Transmission Type 4*4
Water Tank Capacity 1500L
Diesel Tank Capacity 200L
Hydraulic Oil Tank Capacity 200L
Gearbox 280intergral
Drive axle 2.0Twheel side deceleration Bridge
Tires 16/70-R 22.5
Bucket capacity(m3) 0.5
Mixing capacity(m3) ≥1.8
Reduction ratio 1:28
Rotating speed(laps/minute) ≥ 15 laps/minute
Reducer Made in China
Gradeabiliy 30°
Engine
Model Yuchai 4102supercharged
Manufacturer Yuchai
Rated Power 78kw
Emission standards Euro II
Service
BEFORE SALE
1. ISO certified top supplier
2. Support customers to visit the factory
3. Support multiple payment methods such as TT, LC
4. Sufficient inventory
5. Rich experience professional sales team
SELLING
1. Production process visualization
2. Packaging process visualization
3. Transportation process visualization
AFTER SALE
1. One year warranty service
2. Enjoy a lifetime VIP service
3. Old customers can enjoy big discounts
Detailed Photos
Certifications
Packaging & Shipping
Company Profile
FAQ
