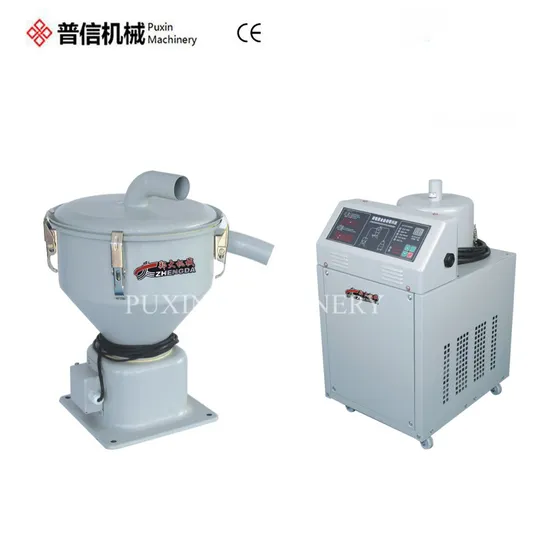

Automatic Plastic Material Hopper Loader for Blow Molding/Injection Molding
| US$400.00-900.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
ZD-700G
Screw
Single-Screw
Automation
Automation
Computerized
Computerized
Certification
ISO9001:2008, CE
Transport Package
Wooden Package
Trademark
Puxin Machinery
Origin
China
Product Description
Automatic Plastic Material Hopper Loader for blow molding/injection moldingFeatures
1.Material hopper separates with main controller,safety and more convenient.
2.With isolated filter,it is easy to clean.
3.It is equipped with the speceal device to redue the working niose.
4.Material hopper is made of aluminium,light and durable.
5.Separately design control box is operated by microcomputer.
6.It is equipped with motor auto protection device.
7.Warning device works automatically when lacking material.
8.Motor can rotate anti-closewise to get rid of dust.
| Model | Motor | Converying Capacity | Material Hopper Volume | converying Tube Calibre | Exterial Dimensions | Weight(kg) | |||
| Type | Specification | Main Controller | Material Hopper | Main Controller | Material Hopper | ||||
| ZDVAL-300G | Carbon brush | 1000W1Φ | 400KG/H | 6L | Φ38mm | 400x350x600 | / | 12 | / |
| ZDVAL-1HP | Induction | 1HP3Φ | 300KG/H | 6L | Φ38mm | 450x400x900 | 400x280x440 | 38 | 6 |
| ZDVAL-2HP | Induction | 2HP3Φ | 4500KG/H | 12L | Φ38mm | 450x400x950 | 400x380x500 | 40 | 12 |
| ZDVAL-3HP | Induction | 3HP3Φ | 550KG/H | 12L | Φ38mm | 500x450x1050 | 400x380x500 | 42 | 12 |
| ZDVAL-5HP | Induction | 5HP3Φ | 650KG/H | 24L | Φ51mm | 600x550x1150 | 520x500x800 | 48 | 24 |
| ZDVAL-7.5HP | Induction | 7.5HP3Φ | 800KG/H | 36L | Φ51mm | 800x700x1250 | 800x670x1000 | 60 | 36 |
