Traction machine motor test bench is mainly used for measuring the performance of elevator traction machine

Traction machine motor test bench is mainly used for measuring the performance of elevator traction machine

US$3,100.00-33,000.00 1 unit (MOQ)

Basic Info.

Max Diameter of Workpiece
1200mm
Type
Motor Parameter Testing
Maxcapacity
<1000KN
Accuracy Grade
0.5
Load Way
Electronic Load
Loading Method
Dynamic Load
Display
Digital
Control
Computer Control
Weight
0-100Kg
Power Source
AC220V
Recommended Power Range
0~100kw Power Level
Recommended Output Speed Measurement Ran
0~3300r/Min
Recommended Output Torque Measurement Ra
0~1000n.M
Voltage/Current Measurement Accuracy
Plus or Minus (0.4 Reading + 0.1% of Range)
Measurement Accuracy of Basic Electric P
0.03%
Speed Measurement Accuracy
1rpm
Torque Measurement Accuracy
0.2%F.S
Transport Package
Dust-Free Packaging + Sturdy Wooden Crates
Specification
customisable
Trademark
Changniu Technology
Origin
Hangzhou, China
Production Capacity
50pieces/Year

Packaging & Delivery

Package Size
1200.00cm * 800.00cm * 1400.00cm
Package Gross Weight
220.000kg

Product Description

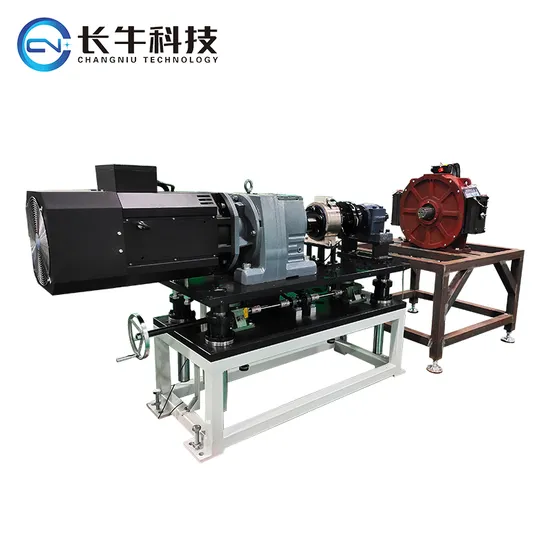

Traction machine motor test bench is mainly used for measuring the performance of elevator traction machine
Product introduction of traction mechanism dynamic torque test system: The traction mechanism dynamic torque test system is composed of the traction machine under test, the torque speed sensor, the magnetic particle loader, the test system, etc. Magnetic powder (eddy current) system is used, and torque and speed sensor are used to test the torque of traction machine;
The electric power transmitter is used to test the electromechanical parameters of the elevator traction to complete the voltage measurement, current measurement, power factor measurement, power measurement, efficiency measurement and frequency measurement;
Temperature measurement with digital temperature sensor; Design the elevator traction machine test software according to the user's requirements, and output the elevator traction machine test report.
Measurable items of traction mechanism torque test system:
1. Input voltage, current, power factor, frequency, input electrical power
2. Output torque, output speed, output power
3. Efficiency
4. Temperature rise
5. Vibration, noise, etc.
This system can be controlled manually and automatically.
