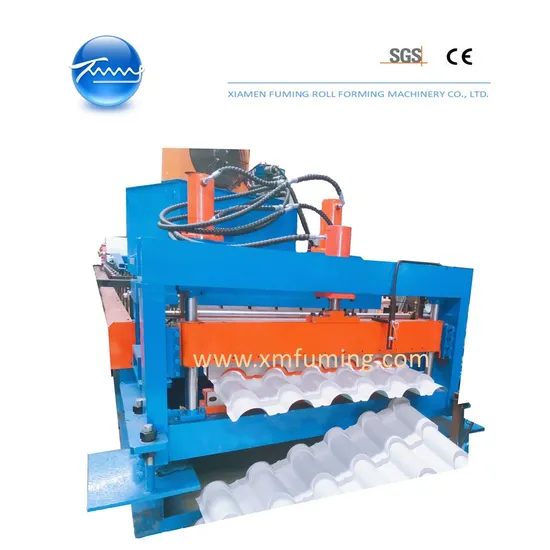

12 Months Fuming Container 40gp Metal Roof Tile Making Machine
| US$38,000.00-45,000.00 | 1 SET (MOQ) |
Basic Info.
Model NO.
YX42-182-910 TILE ROOF
Certification
CE, SGS
Condition
New
Customized
Customized
Usage
Roof, Roof and Tile
Transmission Method
Gear/Sprocket, Gear Box or Toroidal Worm Box
Color
Customized
Thickness
0.35mm to 0.6mm
Yield Strength
245MPa to 350MPa
Transport Package
Container
Specification
40GP
Trademark
FUMING
Origin
Xiamen
HS Code
8455229090
Production Capacity
15 Sets/Month
Product Description
| ROLL FORMING MACHINE FOR YX42-182-910 TILE ROOF | |
| Material Specification | |
| Thickness | 0.35mm to 0.6mm |
| Effective width | 910mm |
| Feeding width | Approx.1220mm |
| Material | PPGI |
| Yield strength | 245MPa to 350MPa |
| Machine Components | |
| 5Ton*1250mm Hydraulic Decoiler | |
| Coil inner hole expanding | Hydraulic system, 3KW pump motor |
| Speed regulating | Frequency inverter, 3KW motor |
| Expanding type | Taper wedge expanding system |
| Load capacity | Max.5Tons |
| Coil inner diameter | 510±30mm |
| Coil outer diameter | Max.1600mm |
| Coil width | Max.1250mm |
| Stop/start rotation | Automatic stopping device with limited switch to assist |
| Option | Please refer to Decoiler on home page |
| Entry Roller and Manual Pre-shearing Device | |
| Working thickness | Up to 0.8mm |
| Function | Smart cut control, to cut off the end of the final piece of sheet only |
| Option | Hydraulic pre-shearing device |
| Roll Forming Machine | |
| Polythene film-on device | To avoid scratch on the surface of aluminum while roll forming |
| Driving system | Gear/sprocket |
| Option for driving system | Gear box or toroidal worm box |
| Forming station | 16 stages |
| Roller material | 45# steel, CNC lathes, hard chrome coated |
| Option for roller material | Cr12, Cr12Mov |
| Shafts Diameter | Φ75mm |
| Servo motor | 7.0KW |
| Production speed | Approx. 4 to 5m/min |
| Hydraulic Pressiing and Post-cutting Device | |
| Hydraulci pressing | Step height 25mm or customized |
| Cutting type | No Blanking cut |
| Cutting tool material | Cr12, heat treatment |
| Hydraulci pump motor | 11KW |
| PLC Control System | |
| Function | Control pressing, quantity and cutting length automatically |
| PLC | Siemens |
| Touch screen | Siemens |
| Encoder | Omron |
| Cut-to-length tolerance | ≤±1 mm |
| Control Voltage | 24V |
| Product Rack | Un-powered, three units |
