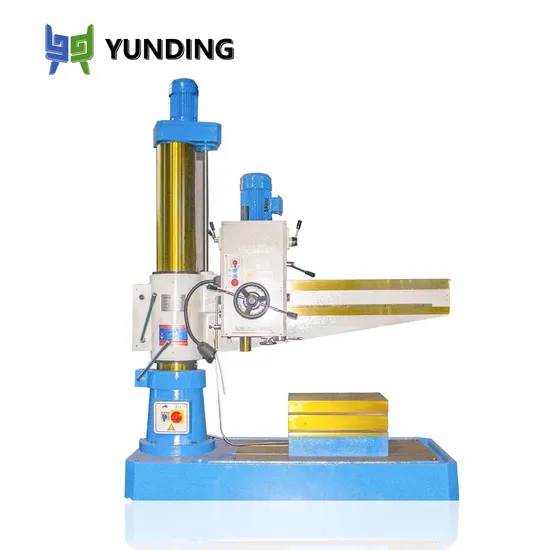

Universal Vertical Drill Press Z3040X14-III Hydraulic Metal Radial Arm Drilling Machine Price

Universal Vertical Drill Press Z3040X14-III Hydraulic Metal Radial Arm Drilling Machine Price

US$2,950.00-3,550.00 1 Piece (MOQ)

Basic Info.

Model NO.
Z3040X14-III
Structure
Radial Drilling Machine
Layout
Vertical
Controlling Mode
Artificial
Number of Shaft
1
Hole Diameter
<50mm
Automatic Grade
Manual
Precision
High Precision
Certification
GS, CE, RoHS, ISO 9001
Condition
New
Max.Drilling Capacity
40mm
Spindle Travel
270mm
Distance Spindle Axis to Column Surface
350-1370mm
Max. Distance Spindle Nose to Base
260-1210mm
Rocker Rotary Angle
360°
Spindle Speeds Range
32-2500rpm
Main Motor Power(Kw)
2.2kw
Weight
2200kg
Transport Package
Plywood Case
Specification
2053x820x2483mm
Trademark
yunding
Origin
China
HS Code
8459290000
Production Capacity
2000

Packaging & Delivery

Package Size
205.30cm * 82.00cm * 248.30cm
Package Gross Weight
2200.000kg

Product Description

Product Description
Universal Vertical Drill Press Z3040X14-III Hydraulic Metal Radial Arm Drilling Machine Price
Product Parameters
Features:With wide range of speed, with manual-power feed. The feed of machines are very easily engaged and disengaged at any time.
The radial arm can rotated and can tilted± 45° , it reliable and easy job can be done.
Main parts are made by machine center which import form KIA with high precision and efficiency, ensuring reliability and high quality.
The machine with small appearance and much function, the machine are widely used for drilling, counter boring, reaming, tapping etcStandard accessories:Drill chuck Φ16mm, taper shank sleeve, taper shank post, under the knife iron, box table
Special attachment:
Rack, angle pliers, eye shield
Main technical parameters SPECIFICATIONS Z3040X14/III
Max.drilling dia(mm) 40
Distance from spindle axis to column surface (mm) 350-1370
Headstock travel (mm) 1015
Distance from spindle nose to table surface (mm) 260-1210
Spindle taper(MT) 4
Spindle speed steps 16
Spindle speeds range(r.p.m) 32-2500
spindle travel (mm) 270
Spindle feeding steps 8
Spindle feeding range(mm/r) 0.10-1.25
Rocker vertical moving speed(mm/min) 1.27
Rocker rotary angle ±90°
Maximum resistance to the spindle(N) 12250
Main motor power(kw) 2.2
Movements motor power (kw) 0.75
N.W/G.W(Kg) 2200
Dimension machine(L×W×H) (mm) 2053 x820x2483

we are the most professional in making radial drilling machine
Realistic photos
Detailed Photos
Our Advantages
Certifications
FAQ
1:How can I choose the most suitable machines ?
A: Please tell me your specifications ,we can choose the best model for you , or you can choose the exact model You can also send us the products drawing ,we will choose the most suitable machines for you .
2: What's your main products of your company?
A: We specialized in all kinds of machines ,such as CNC Lathe Machine ,CNC Milling Machine ,Vertical Machining Center ,Lathe Machines ,Drilling Machine ,Radial Drilling Machine ,Sawing Machine ,Shaper machine and so on .
3: Where is our factory located? How can I visit there?
A : Our factory is located in Tengzhou City ,Shandong Province,277500 China. You are warmly welcomed to visit us.
4. What is your trade terms?
A : FOB, CFR and CIF all acceptable.
5: What's the Payment Terms ?
A : T/T ,30% initial payment when order ,70% balance payment before shipment ;
Irrevocable LC at sight .
5: What's the MOQ?
A: 1 set .(Only some low cost machines will be more than 1 set )
We want to know:
1.What's your Industrial Voltage?
2.We strongly suggest you to tell us size, material of your workpiece for our evaluation, if possible, better to send us workpiece drawing, so that we can recommend you most suitable model!
3.If need CIF Price, please kindly tell us the port of destination.
