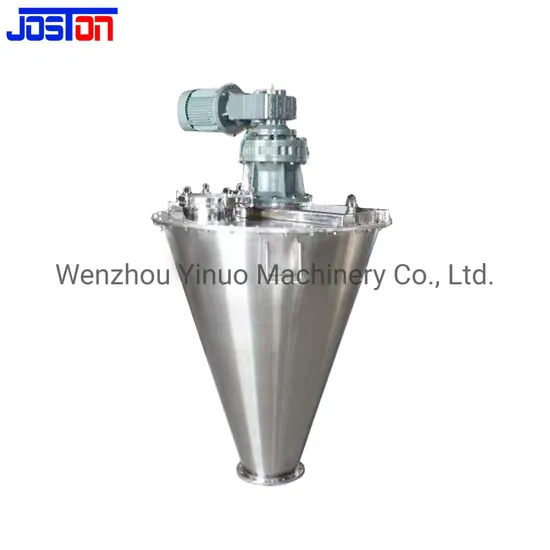

Activated Ingredent Solid Powder Auger Feed Vertical Double Screw Blender Mixing Machine

Product Description

Activated Ingredent Solid Powder Auger Feed Vertical Double Screw Blender Mixing Machine
Technical Parameters

MODEL	SZH-0.5	SZH-1	SZH-1.5	SZH-2	SZH-3	SZH-4	SZH-6
Load coefficient	0.6
Work volume L	300	600	900	1200	1800	2400	3600
Motor power KW	3	4	4	5.5	7.5	11	15
Self-revolve speed RPM	57	57	57	57	57	57	57
Revolution speed RPM	5	5	5	5	5	5	5
Material inlet hole diameter MM	Ø205	Ø255	Ø255	Ø255	Ø400	Ø400	Ø400
Dimension Diameter XH MM	1100x2350	1400x2740	1600x3100	1700x3400	2000x3600	2200x4400	2500x4850
Weight KG	600	1200	1350	1500	2100	2500	3500

Activated Ingredent Solid Powder Auger Feed Vertical Double Screw Blender Mixing Machine can mix fine powder, caked or more two powder raw material, raw materials containing certain moisture. Particularly it can also mix raw material that needs to add small amount of additive.
Features :Unique structure of mixing tank, high mixing efficiency, free of dead corner and even mixing. The mixer is made of stainless steel with inside and outside walls polished. The machine can also increase to mix blend the function compulsory. It can mix thin powder and more than two form powders including the materials that contain water.
Activated Ingredent Solid Powder Auger Feed Vertical Double Screw Blender Mixing Machine Working principle:
When the mixer is working, it has three-dimensional movement, and it rotates while it rotates. On the one hand, the mixer has strong turbulence effect, which accelerates the flow and diffusion of materials, on the other hand, it has overturning and translation movement, which overcomes the influence of centrifugal force, so that the materials will not produce specific gravity segregation and agglomeration phenomenon, and there is no dead angle, so as to ensure even mixing.
Activated Ingredent Solid Powder Auger Feed Vertical Double Screw Blender Mixing Machine Characteristic:
1. The mixer has three-dimensional movement, which makes the material flow, shear, translation and diffusion, and makes the process from agglomeration to dispersion and doping each other, which ensures the material to be mixed evenly, and the evenness can reach more than 99.9%. The ordinary mixer, in which the material is only separated and combined in the container, has simple operation, low efficiency and poor quality
2. The effective loading rate of the container is 80%, the mixing time is short and the efficiency is high. (only 40% for ordinary mixer)
3. The height of the machine is low, and there is no special requirement for the workshop, so the capital construction investment is reduced.
4. The mixing barrel and the transmission part of the fuselage can be installed on the partition wall to meet GMP requirements.
5. For GH2 mixer, the mixing containers of various shapes can be placed in the mixing cylinder for mixing, which is convenient to use.
6. It can realize stepless speed regulation and is easy to load and unload.
7. Long life and low noise. Polishing:
Polishing is vital for tanks. Tanks should be polished wholly inside and outside.
Therefore it can ensure there is no place for the bacteria to hide in tanks.
Our polishing system consists of auto and semi-auto polishing machine and manual polishing.
Each tank is polished three times and more polish for the key place. Welding:
Our argon central system for welding provides 100% pure argon to protect tanks from distorting during welding
















SERVICE
We have established some overseas agent office to make the after-sales serivce already ,so it can will be service client in fast response .also in our headquarter service team ,there is a expert team which can support client in 7*24 hours .
1. Customer inquiry and consultation (URS documents)
2. Confirmation of treatment plan (DQ documents &PID Drawing)
3.Quotation offer with the technolgy document (Quotation PI )
4.Engineering and Manufacturing (Prodcution &Quality inspection )
5. Product inspection (FAT documents)
6. Delivery arrangement and loading work (full set Shipment documents)
7. After-sales service (OQ,PQ ,SAT documents)
FAQ
1.What about your factory?
Our factory is located in Wenzhou city ,Zhejiang Province and have more than 15 years experience on machinery making.
2.How will your company control the equipment quality ?
We have a qualified expert team ,we will inspect every production proceed .also Machines will be tested in our plant before shipment .
3.How long the warranty will be?
We provide 1 years warranty for the machine running ,but we will afford whole -life service for the machine .
4.Which kind payment do your company do now ?
We accept Western Union, T/T ,D/P,D/C and irrevocable L/C payable etc.
5.Can we become your distributor in our country?
Yes, we very welcome you! More details will be discussed if you are interested in being our agent.
6.Why we choose "JOSTON "?
1. We enhance the reliability of product's quality and working life .
2. We decrease the consumption cost of the product in the ruuning.
3. We improve research personnel's ability to deliver a creative design;
4. We use leading technologies in our product development and innovation, and thereby increase the competitive advantage of products.
7.Do you supply installation equipment in oversea?
Yes, if need, we can send our engineer to your plant to help you do installation and commission.
8.How can we know the order production status ?
We will arrange the person to take photo or video during manufacturing in every week to make you to know the production status.When goods are finished,we will take detailed photos or video for your checking ,after approve ,then we will arrange shipment .also you can arrange FAT in our plant when the goods is ready here
9.what is kind service do you offer before making order ?
1.according to your company URS ,we will make the design drawing accoridingly.
2.after your company approved drawing ,we will make quotation.
3. final we make agreement on payment terms ,delivery time ,package ,shipment etc.
10.how about your company after-sale serivce ?
1. We provide long-term after-sale service.
2. we can do installation and commission for the equipment in your plant if necessary .
3. Meanwhile, you can call or e-mail us to consult on any relevant question since we have a special line for after-sale service. Alternatively, you can communicate on-line with us to solve any problem.
