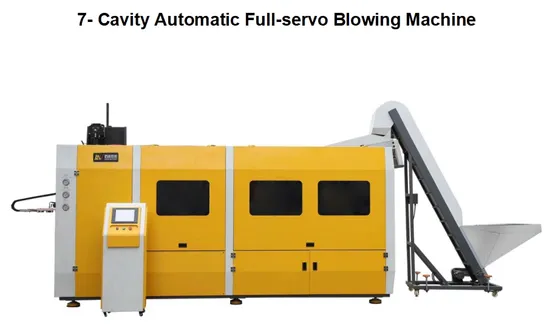

Automatic 14000bph Pet Bottle Pet Bottle Blowing Equipment
| US$4,000.00-50,000.00 | 1 Set (MOQ) |
Basic Info.
Model NO.
7-cavity
Raw Material
PET
Making Method of Parison
Extrusion-Blow Molding
Automation
Automatic
Computerized
Computerized
Certification
CE, ISO9001:2008
After-sales Service
for Year Service
Advantage 1
Strong Frame with Handle More Strong
Suit Product
PP or Pet Bottle
Guarantee
One Year
Delivery Time
30-60day
Model Type
Auto or Semi-Auto Type
Transport Package
Wooden Case
Specification
SB
Trademark
tango
Origin
Zhangjiagang
HS Code
8422301090
Production Capacity
30 Sets Per Month
Product Description
Product description:| UNIT | RYSB-C06 | ||
| 90/8 | |||
| Number of cavities | 8 | ||
| Clamping force | Kn | ||
| Max.heating power | Kw | 48 | |
| Operation pressure | Kg/cm2 | 8 | |
| Max.blowing pressure | Kg/cm2 | 30 | |
| Theoretical output | bph | 8000 (500ml) | |
| Max.container volume | ltr | 1.5 | |
| Max.inlet outer diameter | mm | 42 | |
| Max.product ovter diameter | mm | 90 | |
| Max.product height | mm | 320 | |
| Weight | t | 5.5 | |
| Size(L*W*H) | mm | 6100*2000*2000. 6100+2000 | |
Blowing machine main configuration
| Product Name | Origin | Brand | |
| (PLC) computer touch screen | China | Inovance | |
Ration servo motor | China | Inovance | |
Variable pitch servo motor | China | Inovance | |
Clamping servo motor | China | Inovance | |
Stretch Servo Motor | China | Inovance | |
Oven servo motor | China | Inovance | |
Servo reducer | Taiwan | Liming | |
Servo reducer | Taiwan | Liming | |
magnetic switch | Taiwan | Yuan Lifu | |
Low voltage electrical appliances | German | Siemens | |
Photoelectric switch | Japan | Omron | |
Throttle valve | Taiwan | AirTAC | |
Blow valve | Italy | Norgren | |
Action valve | Korea | ARK | |
Lift cylinder | Taiwan | AirTAC | |
Manipulator Pneumatic Finger | German | FEST-O | |
Sealing cylinder | Taiwan | Lingde |
SCREW AIR COMPRESSOR+BOOSTER
| item | unit | parameter | remarks |
| model | EMS-10/40W | ||
| Working Medium | air | ||
| compression | screw and piston | ||
| cooling mode | Primary water cooling | Two-stage water cooling | |
| driving mode | Direct transmission | Two-stage belt drive | |
| compression stage | 3 | 1 stage 1 2,3 stage 2 3 | |
| flow | m3/min | 10 | |
| discharge pressure | MPa | 4.0 | gauge pressure |
| suction temperature | ºC | ≤40 | |
| exhaust temperature | ºC | ≤50 | after cooling |
| motor power | KW | 120 | |
| Circulating water flow | T/h | 50T | |
| temperature range | 10ºC 32 ºC | 5ºCTemperature difference of 5 ºC | |
| 10less than 10ºC | Pay attention to anti-freezing measures | ||
| ,inlet and outlet diameter | DN40 | ||
| High pressure exhaust pipe interface | DN40 | ||
| weight | Kg | 5000 | per set |
| Voltage | 380V/50Hz | ||
| motor IP | IP54 |
Mold
