USM1700 Rotary Helix Double Knife Automatic Copy Paper Sheeting Machine Sheeter

Product Description

Product Description

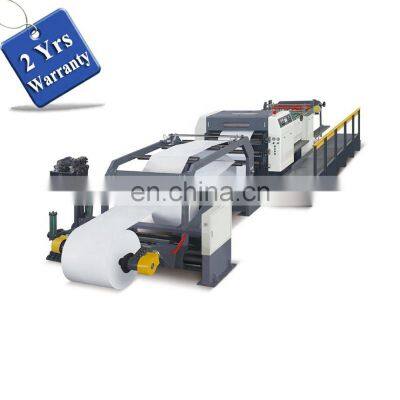

USM1700 Rotary Helix Double Knife Automatic Copy Paper Sheeting Machine Sheeter (300m/min)
Videos
Video demonstration only for reference
Video 01: /watch?v=5ixcSlHLt_s
Video 02: /watch?v=RKOPNPk9FCg
Product Description
Description:
Servo Precision high speed die cutting machine takes the advanced technology of Germany. The machine computer control system takes AC Servo motor and AC transducer. The conveyor belt takes NITTA from Japan. The pneumatic vibrator takes FINDEVA from Switzerland. The electrical system adopts SCHNEIDER & OMRON which leads to the speed of cutting paper much more fast and stable. Germany precise bearing and cutting knife assure the high cutting precision. The controller of soft-touch computer screen is simple and convenient to operate. The anti-curve rack assures the paper flat. This machine is the paper processing machine which is very popular in the paper making and printing industry. It can improve the efficiency and benefit of your work.
Parameter:

Model:	USM-1400/1700/1900
Cutting Mode:	Double rotary knife
Paper Cutting Thickness:	60-1000GSM
Cutting Precision:	+/-0.2mm for cutting length 1000mm
Max Cutting Frequency:	300 cutting stroke/min
Max Cutting Speed:	300m/min
Cutting Range:	450-1600mm
Max Unwinding Diameter:	1800mm
Max Paper Cutting Width:	1400mm/1700mm/1900mm
Gross Weight:	16000Kg/18000Kg/20000Kg

Features:
1,High speed rotary double cutting knife
2, Elimination system
3, Middle slitting and waste collection system
4, Automatic counting and label inserting device
5, Paper transporting equipment
6, Automatic paper trimming and collecting system
7, Electric control unit
8, Double arm oil hydraulic shaftless mill roll stand
9, Automatic paper tension controller
10, Automatic vacuum system
11, Web guiding system
12, Photo senor registration tracking system
13, LCD control panel
14, AC servo motor
Detailed Images
Optional Parts:
1. Web Guiding System:
2. Eye Photocell Registration: (Only For Printed Paper)
3. Manuel Slitting System with Side Trimming
4. Pneumatic Slitting System with Side Trimming
5. Label inserting device
6. Automatic tension controller
