Screen Protector 3M tape adhesive label automatic die cutting machine

Product Description

Product Description

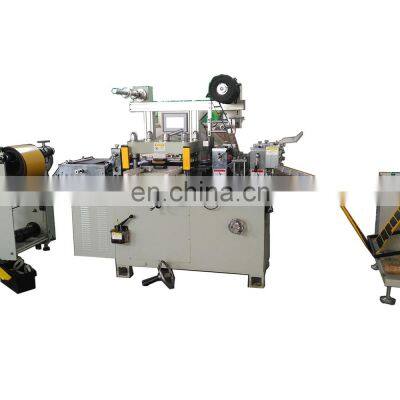

DP-320B Screen Protector automatic die cutting machine
Functional characteristics:
320B die cutting machine is developed on the basis of imported cutting machine.
The machine body is cast on the whole, and the mahcine enjoys powerfull pressure, stable operation, firm and durable.
It contains an oil gear box which reduces abrasion to the mahcine during the operation,
thus prolonging the life span of the machine, enhacing the utilization ratio of the machine.
"Press itinerary and pull the material length are automatically adjusted by the screen, make moulding-adjustment more convenient
"
DP-320B Screen Protector Die Cutting Machine
Scope applicable:
The product is developed aiming at the die cutting and forming of various insulating materials such as PVC, film, Mylar,
copper foil, aluminum foil, foam, etc. in the electronic industry.
DP-320B Screen Protector Die Cutting Machine

Model	DP-320B automatic die cutting machine	DP-420B automatic die cutting machine
Max Feeding Width ( mm )	320	420
Cutting Area ( mm )	320*300	450*400
Cutting Speed ( T/M)	30-170	30-170
Position Accuracy ( mm )	±0.1	±0.1
Power of Main Engine ( kw )	2.2	3
Size ( mm )	2300*1250*1500	2400*1290*1610
Voltage (V )	220	380
