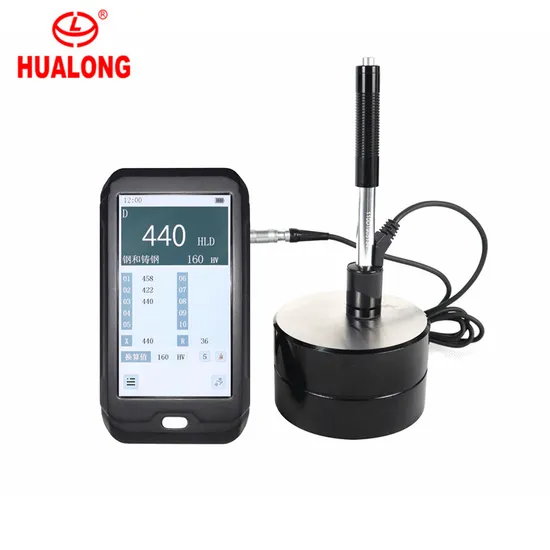

Hl-5300 Touch Screen Portable Leeb Hardness Tester
| US$188.00-288.00 | 1 Set (MOQ) |
Basic Info.
Model NO.
HL-5300
Measuring Range
HLD
Application
Metal
Standard
ISO, ASTM, GB/T, BSEN
Warranty
1 Year
Mobility
Desktop
Calibrating Method
Standard Hardness Test Blocks
Rated Voltage
220V
Support Language
English
Customized
Customized
Transport Package
Wooden Case
Specification
790*500*980mm
Trademark
Hualong
Origin
Shanghai
HS Code
9024101000
Product Description
HL-5300 Touch Screen Portable Leeb Hardness Tester Product DescriptionMain features:
Conversion of common hardness scales (HL, HV, HB, HRC, HRB and HS) & conversion to tensile strength
7 types of optional impact devices, with auto recognition. Universal standard impact device D included.
Touch scree display with back-light showing all the important values and information
Memory of 48-350 groups of data
Upper /lower limits setting and sound alarm
RS232 interface for further management
Software calibration
Connected to printer and test values can be printed directly
. Product Parameters
Technology parameter:
| Measuring range | (170-960)HLD,(17-68.5)HRC,(19-651)HB,(80-976)HV,(30-100)HS,(59-85)HRA,(13-100)HRB |
| Hardness scale | HL,HB, HRB, HRC, HRA,HV, HS |
| Measuring direction | 360o |
| Tolerance | ±6HLD (when HLD=760±30) |
| Repeatability | 6HLD (when HLD=760±30) |
| Power | 1400mAh+3.7v 5.18Wh |
| Charging time | 2 hours (with over-charged protection) |
| Operating temperature | 0°C-40°C |
| Dimensions (mm) | 330x330x150 |
| Weight (g) | 5500 (including main unit and printer) |
| Interface | RS 232 |
