Jdl-280 Crawler Mounted Mechanical Top Drive Mud Rotary Drill Equipment/Pneumatic DTH Bore Water Well Drilling Rig Machine

Product Description

Product Description JDL-280 mud/air drilling rig is a water well drilling rig that mix mud drilling rig and air drilling rig in one equipment with mechanical top head. It is a good solution to the difficulty of drilling in the soil layer for DTH rig and the low efficiency of drilling for mud rotary rig in the hard rock, gravel and pebble layer. The mud/air drilling rig adapts to various soil strata. The mud/air drilling rig is efficiency and energy saving to drill water well and geological exploration of core sample.
1. The drilling rig is equipped with a hydraulic drill tower, hydraulic supporting legs, winch, and the top drive power head can slide up and down;
2. Rubber tracks are standard, but can also be upgraded to steel tracks for better off-road capability;
3. Automobile gearbox shift mechanism, durable, shift more easily;
4. The drilling rig adopts double oil pump for oil supply. When drilling, it uses single pump, and when lifting drill rods, it uses double pump to merge; the power loss is small and the auxiliary time is short;
5. The main shaft of the drilling machine adopts mechanical transmission;
6. Some functional interfaces are reserved in the hydraulic control system of the drilling rig.

Product Parameters

JDL-280 Crawler Mounted Mechanical Top-Drive Drilling Rig
Drilling capacity	Drilling depth for water well	150m(152mm-203mm)
	Wireline coring depth (NQ size)	280m
	Drilling diameter	Ø75-Ø350mm
	Drilling angle	90°
Drive head	Lifting capacity	100KN
	Thrusting capacity	80KN
	Rotary speed RPM	Positive rotation rate: 20,39,72,119,147/ 100,118,334,562,695 r/min
		Reverse rotation rate: 37/168 r/min
	Max. Torque	2700N.m
Power Unit	Engine Model	YN27
	Rated power/speed	42kW/ 2400r/min
Mechanical winch capacity		2.5 Ton
Drill pipe	Drill pipe dia.	Ø50/ Ø60 / Ø76mm NQ/ HQ /PQ
	Drill pipe length	2m
Mud pump		BW-160 or BW-200
Crawler chassis	Walking speed	0~2 km/h
	Climbing angle	>25°
Dimension	Transport	3300*1700*2400mm
	Working	3200*2300*5600mm
Weight with rubber crawler		4200kg

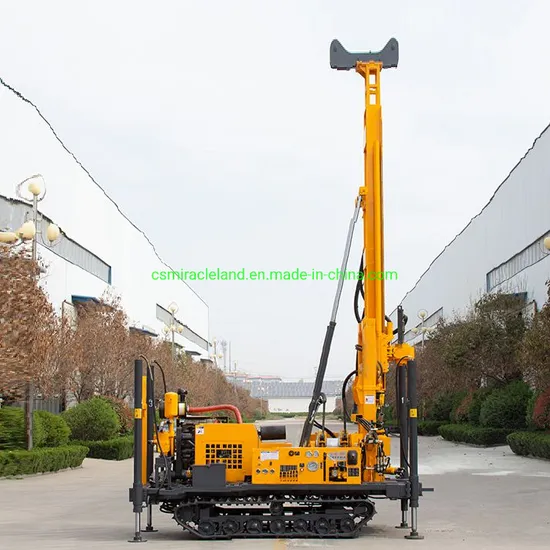

Related Photos
