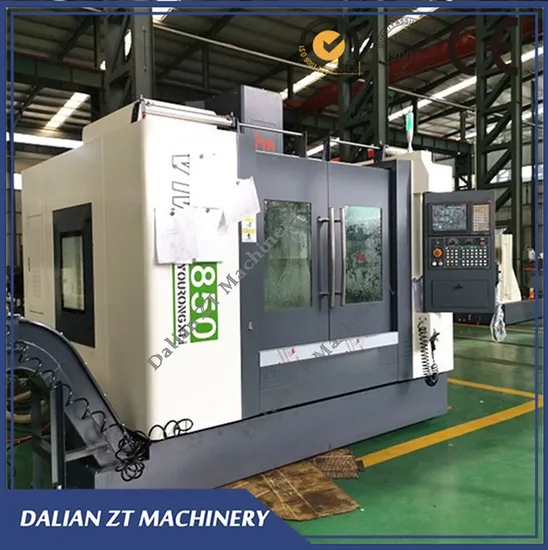

Cheap CNC Milling Machine 24 Tools Vertical Machining Center
| US$33,000.00-55,000.00 | 1 set (MOQ) |
Basic Info.
Model NO.
VMC850
Movement Method
Contour Control
Control Method
Closed-Loop Control
Numerical Control
CNC/MNC
Processing Precision
0.02~0.03(mm)
Performance Classification
High-End CNC Machine Tools
Certification
CE, ISO 9001
Condition
New
Table Size
1000X500mm
Weight of Workpiece
500kg
X-Axis Travel
800mm
Y-Axis Travel
550mm
Tool Change Time
3s
Spindle Speed
10000rpm
Spindle Motor Power
7.5kw
Power Supply
380V/3-P/50Hz
Transport Package
Polywood Case
Specification
Overall size: 2020x1970x2160mm
Trademark
Dalian ZT Machinery
Origin
China
HS Code
8457101000
Production Capacity
1000 Sets
Product Description
FeaturesVMC850 is designed for machining complicated mold profile, automotive parts, and housing parts. It has distinguished advantage in machining mold, especially the small size mold. It has big torque output at low speed range, which is suitable for high strength steel and high temperature alloy steel which are difficult for machining.
Suitable to machine large machinery parts, automative part, mold etd;
With Taiwan high speed spindle to 10000rpm;
High accuracy; High speed; High rigidity; Low noise
| Specification | Unit | VMC850 |
| Table size | mm | 1000*500 |
| Max table load | Kg | 500 |
| Table travel X | mm | 800 |
| Table travel Y | mm | 550 |
| Table travel Z | mm | 550 |
| Spindle nose to table surface | mm | 150-650 |
| Spindle center to column surface | mm | 575 |
| Spindle speed range and driving method | rpm | 8000 belt driving |
| Spindle taper | / | BT40 |
| Spindle diameter | mm | 150 |
| Max tool diameter(No adjacent tool) | mm | φ80(φ130) |
| Max tool length | mm | 300 |
| Max tool weight | kg | 8 |
| Tool selection | random | |
| Shank | Type | BT-40 |
| Magazine capacity | T | 24 |
| Tool exchange mode | Arm type | |
| Tool change time | Sec | 3 |
| Rivet | type | P40-1(45°) |
| Controller | Siemens |
