Outside and Inner Grinding Polishing Machine for Metal Pipe

Product Description

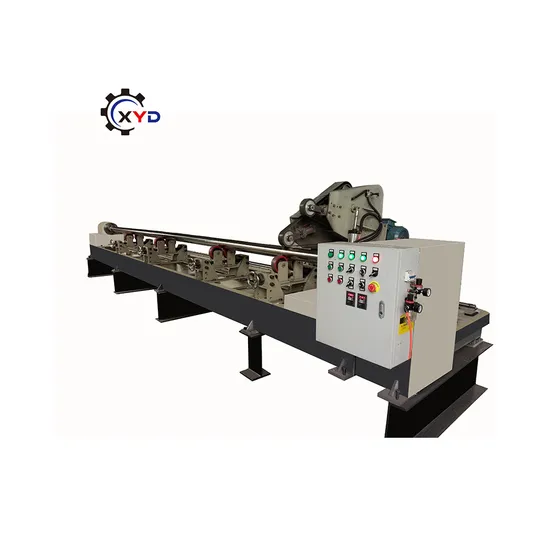

Outer polishing machine for metal pipe
Product Description
Grinding head frequency conversion main motor 7.5kw, reducer 4kw, support frame 3, grinding head travel maximum stroke 6000mm, support length 8m, U-turn can be polished in a 12m length round tube, with round tube chuck to adjust the size and lock, Clamping grinding wheel diameter 100×50mm.
Main Technical Parameters

Machine dimension	L*W*H(in: mm): 6500*1200*1200
Machine weight	2500KGS
Input power	8KW
Control system	PLC
Grinding wheel specifaction	φ100*50mm
Expendable items	Abrasive Belt, Hemp Wheel, Cloth Wheel, Thousand Impeller, and etc.
Workpiece material	Stainless Steel & Carbon Steel
Machining accuracy	surface roughness Ra≤0.6μm
Producing efficiency	6m2/h

Specification of workpieces:

Workpiece size	Diameter	100mm-800mm
	Length	1000mm-12000mm
	Weight	5000KG-10000KG

Product Features:
High efficiency Expendable items Easily Exchange Professionally designed 6m travel-long of grinding head Easily Operating Optional Dusty Collector reducing dusty pollution
Packaging Details
1.PE film cover on machine.
2.Carton protection in Plywood case.
3.Or based on your requirements.
Port
Shanghai Port / Nanjing Port / Customer Demand
Technical Service:
1) Design rational process for customers according to their product positioning.
2) Help customers carry out technological transformation on the entire process to improve their production efficiency and capacity.
3) Customize polishing machine configurations and other manufacturing equipment for customers; provide spare parts to equipment users.
4) Help customers test, inspect and analyze new processes, and offer reasonable suggestions and improvement proposals.
5) Improve customer operation on polishing equipment; train their ability to use the equipment and improve their application efficiency.
6) Provide software train for customers and software design of special patterns.
7) Provide processing service for special products.
8) Provide professional designers of technological application to equipment users.
9) Provide technical advice, equipment maintenance and repair services.
After-sales Service:
• Free on-site installation and commissioning. (Customer provides air ticket + accommodation)
• 24-hour service hotline; providing free instruction and answering your questions.
• Life-time maintenance; one-year warranty. After warranty, we provide reasonable prices of spare parts and service.
• Once a year on-site free maintenance. (Customer offers airfare + accommodation, or completed by our local agent)
• Comprehensive and systematic technical training, to ensure your correct operation of the equipment.
