ISO-4210 Frame - Rigidity on-Line Testing Machine (for BB tube and head tube)

ISO-4210 Frame - Rigidity on-Line Testing Machine (for BB tube and head tube)

US$2,300.00-3,000.00 1 Piece (MOQ)

Basic Info.

Model NO.
ISO-4210
Force Load Cell
High Precision 2000n Load Unit
Control Mode
Touch Screen +PLC Control
Transport Package
Wooden Packing
Specification
1050*500*950mm
Trademark
Tophung
Origin
Jangsu, China
HS Code
9024800000

Product Description

ISO-4210 Frame - Rigidity on-line testing machine (for BB tube and head tube)

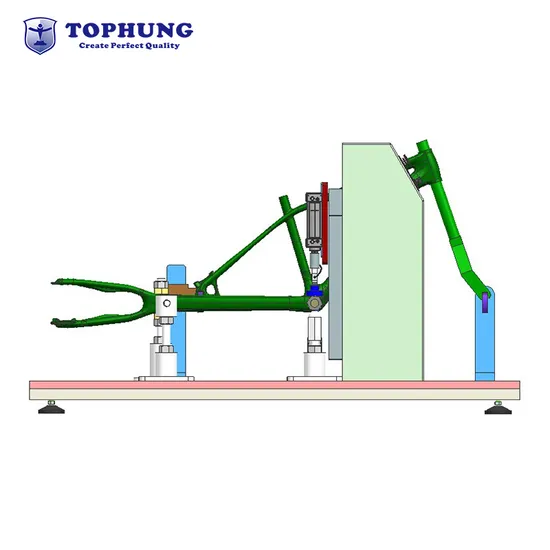

Machine description The ISO-4210 Frame - Vertical Force fatigue tester is designed to test the rigid strength of the five-way tube and the head tube of the bicycle frame in the production process. According to the ISO 4210 standard, the frame is quickly installed and fixed on the special test fixture during the test, and the rigid special test fixture is installed on the five-pass pipe or the head pipe. A certain force value is applied to the test fixture, and the deformation sensor is used to measure its deformation. The design of the testing machine is modular, the specifications and functions meet the requirements of the specification, and the operation is safe and easy.
Main functions 1 The color touch screen LCD+PLC display control, all test conditions are directly input by the LCD touch screen panel;
2 The strength of the test is displayed immediately;
3 PLC program can set the test frequency and test times;
4 The power source adopts 6kg compressed air source, stable operation, low noise;
Product Description
Model ISO-4210
Name Frame - Vertical force fatigue testing machine
Maximum power Within 500N, the compressed air pressure can be adjusted according to the test requirements
Force load cell High precision 500N load unit
Control mode Touch screen +PLC control
Power display accuracy +/-1%
Test speed 1-3 times/second, can be set digitally
Counting digits 0-999999 times
Table area 1200×1300mm (width × length)
Machine power supply Three-phase 220, 50/60 or specified
Appearance size 1200×1300×800 mm (W×D×H)
Machine weight About 320Kg

Company Profile Suzhou Tophung Machine Equipment Co., Ltd. was founded in 2007 and is a professional manufacturer of quality testing machines that integrates research and development, production, sales, and service. For over a decade, the company has been committed to providing excellent testing instruments and overall quality testing solutions for professional material testing, structural testing, and finished product testing to our customers. Tophung products are widely used in industries such as metal materials, new composite materials, solar photovoltaic new energy, wires and cables, automotive parts, plastic products, etc.
Our Mission:
Provide professional testing project to help customer to create perfect quality.
Our Vision:
Continued innovation, leading Tophung towards the world.
Our Values:
Achieve Max benefits for customers.
Our Commitment:
Dedication to improve service and exceed customer expectations.
Our Team:
Tophung has a group of skilled scientific and technological talents, a professional sales team, and a comprehensive after-sales service system, with rich industry testing experience.
Customer Stories The equipment developed by Tophung has achieved industry-leading performance, creating value for customers and society while collaborating with German companies such as "CADIS" and TUV, Tianxiang, and Huace. Tophung has long served outstanding enterprises both domestically and internationally, growing together with users and exploring product quality control solutions. It has rich industry testing experience and has been highly recognized by many users in the industry. In 2014, it was awarded the title of "Quality Trustworthy Enterprise" by the Jiangsu Provincial Quality Supervision and Management Center.
Certifications Tophung Company takes the development of national scientific and technological infrastructure as its responsibility, focusing on the research and development and production of scientific instruments and equipment. At present, Tophung has 32 authorized patents and has also obtained ISO quality management system certification and EU CE certification. The main series of testing machines produced by Tophung have obtained national patents and all have independent intellectual property rights.
Services If you face any problems in future during testing process we promise we will give you a reply within 48 hours and solution provide within 3 working days. We can offer operation video and English operation manual. We can provide video-conference. If customers require on-site service, the transport and travel expense shall be borne by customer.
1. Pre-service
--24 Hours online service for your consult.
--Help choose right model, and a series of service, person, advise.
2. Middle service
--Give you best offer
--Provide discount for many sets order
--Do customer's request:
--Choose payment term you convenience.
--Promptly production and delivery, inform you in time.
--Can provide invoice value as you like to decrease your tax.
3. After sale service
--1 year warranty service and all life maintenance.
--Technical Engineer are available for oversea training.
--Free change for some parts
--Remote control technical consult
--Maintenance plan
4. Commitment
We will sign a letter of commitment while we sign the contract, which will improve your confidence to us.
5. Good Packaging
Simulation Animatronic Customer Triceratops are covered with air bubble film before put them into the wooden case, which not only has good shock absorption, impact resistance, heat sealing and also has the advantages of nontoxic, odorless, moisture corrosion, good transparency etc.
FAQ
Contact information:Dear customer,If you need our testing machines, please send us inquiry without any hesitate !-------------Suzhou Tophung machinery equipment Co., Ltd.
