US$1,700.00
|
1 Piece
(MOQ)
|
Basic Info.
Type
Saw Blade Sharpening Machine
Processing Object
Saw Blade
Controlling Mode
Artificial
Automatic Grade
Semiautomatic
Cylindrical Grinder Type
Universal Cylindrical Grinder
Suitbale Products
Circular Saw Blade
Transport Package
Wooden Case
Production Capacity
3000 PCS/ Year
Product Description

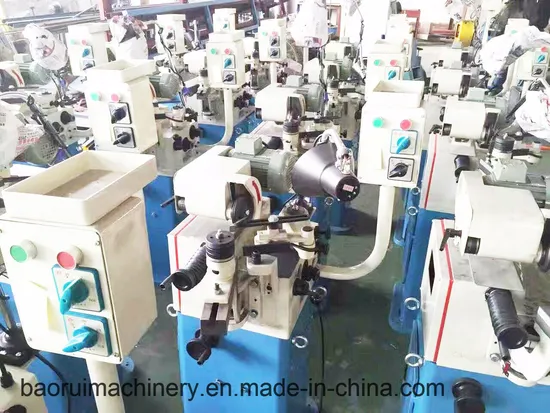

SG-650 saw blade sharpening machine, can sharpening and chamfering saw blade with many types teeth, fast speed, high accurate
Technological data
Item | Name | Data |
1 | Saw blade outer diameter | Φ50mm-Φ450mm |
2 | the teeth distance | 25mm |
3 | teeth depth | 8mm |
4 | cutting degree | -5°- 30° |
5 | feeding speed | 45-180 teeth/ minute |
6 | saw blade thickness | 8mm |
7 | grinding wheel diameter | Φ75mm-Φ150mm |
8 | grinding wheel speed | 4200RPM |
9 | the motor power | 1/2HP |
10 | the grinding wheel power | 3/4HP |
11 | Micro section adjusting angle | ±20° |
12 | Rotary corner | 30° left, 45°right |
13 | machine size | 800mm x 800mm x 1410mm |
14 | weight | 130kgs |
15 | Warranty time | 12 months |
